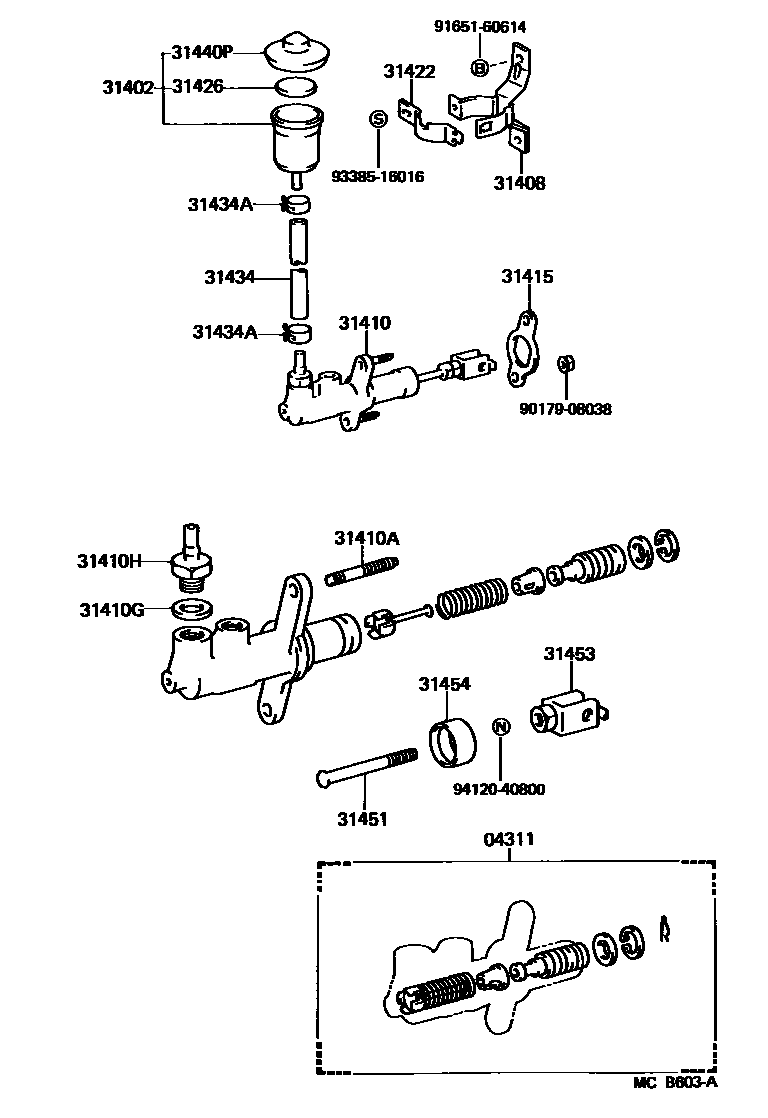

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iEL31..MTM198611-198704

main04311-14031iEL31..MTM198704-198808

main04311-17030iEL31..MTM198608-198611

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-10010iEL31..MTM198608-198808

31408HOLDER SUB-ASSY, CLUTCH RESERVOIR

main31408-10010iEL31..MTM198608-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31420-10010iEL31..MTM198608-198704

main31420-10011iEL31..MTM198704-198710

main31420-10012iEL31..MTM198710-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iEL31..MTM198608-198808

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iEL31..MTM198608-198808

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90404-16307iEL31..MTM198608-198808

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iEL31..MTM198608-198808

31422BRACKET, CLUTCH RESERVOIR

main31422-10010iEL31..MTM198608-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iEL31..MTM198608-198808

31434TUBE, CLUTCH RESERVOIR

main31434-16010iEL31..MTM198608-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iEL31..MTM198608-198808

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iEL31..MTM198608-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iEL31..MTM198608-198611

main31451-22060iEL31..MTM198611-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-35010iEL31..MTM198608-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iEL31..MTM198608-198808

9017908038

main90179-08038

9165160614

main91651-60614

9338516016

main93385-16016

9412040800

main94120-40800

20 parts on this diagram · 1 diagram in section
