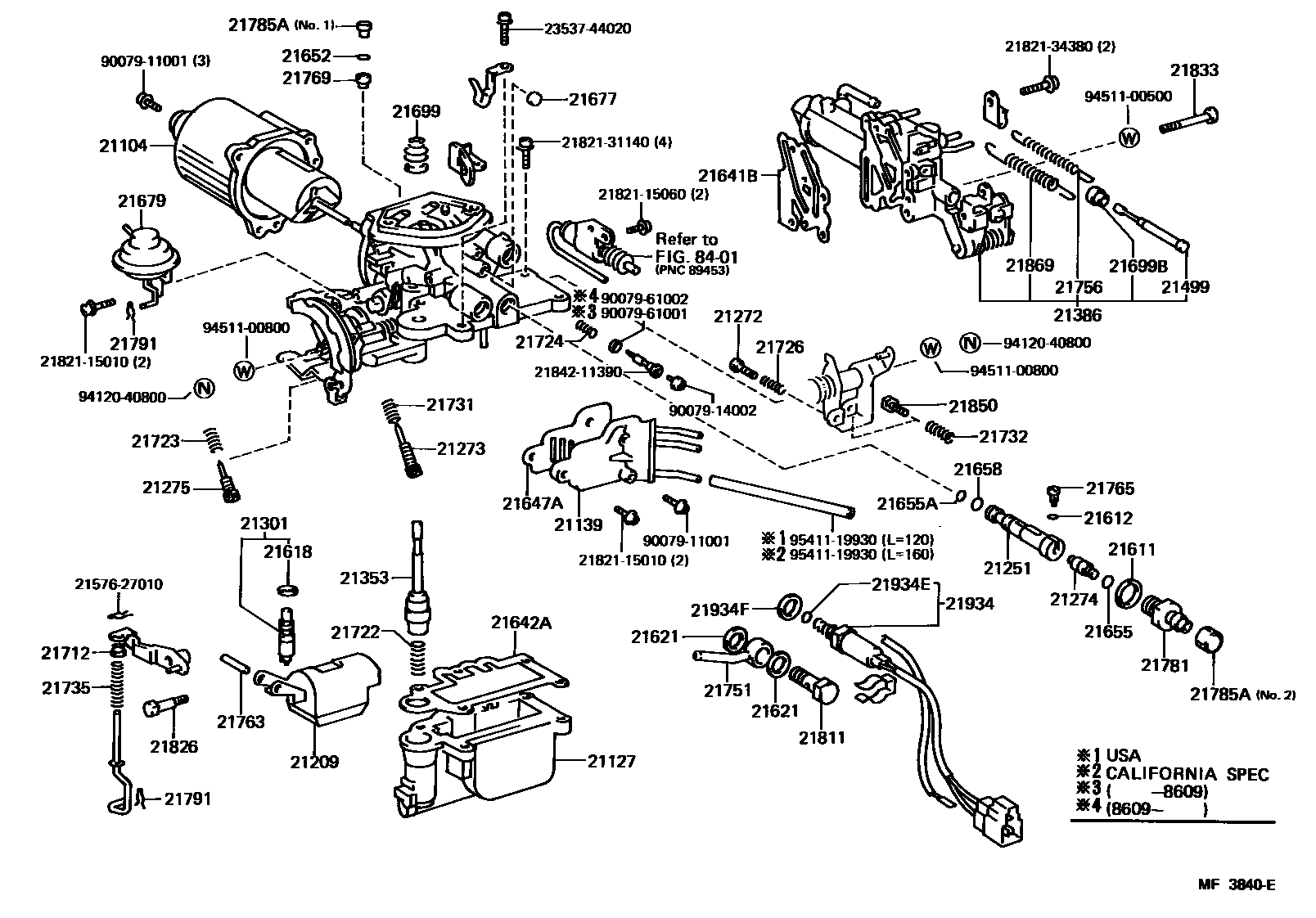

21104CHAMBER SUB-ASSY, SUCTION

main21014-11370i198608-198708

main21014-11390i198608-198708

main21014-11391i198710-198808

21127BOWL, FLOAT

main21127-11390i198608-198808

21139ADAPTER(FOR CARBURETOR CONNECTING PIPE)

main21139-11090i198608-198708

main21139-11390i198608-198708

21209FLOAT SUB-ASSY

main21209-11090i198608-198808

21251JET, 1ST MAIN

main21251-11340i198608-198808

21272SCREW, 1ST IDLE ADJUSTING

main21276-11090i198608-198808

21273SCREW, THROTTLE ADJUSTING

main21273-11090i198608-198710

main21273-11230i198710-198808

21274SCREW, 1ST THROTTLE ADJUSTING

main21275-11390i198608-198808

21275SCREW, ADJUSTING

main21844-33010i198608-198808

21301VALVE SUB-ASSY, NEEDLE

main21301-11140i198608-198808

21353PLUNGER, PUMP

main21353-11090i198608-198708

main21353-11390i198608-198708

main21353-11391i198802-198808

21386COMPENSATOR

main21386-11370i198608-198708

main21386-11380i198608-198708

main21386-11390i198608-198708

main21386-11400i198708-198808

21499ROD, PUSH(FOR CARBURETOR)

main21499-11090i198608-198808

21611GASKET, MAIN JET

main21611-15250i198608-198808

21612GASKET, POWER VALVE

main21612-15250i198608-198808

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i198608-198808

21621GASKET, UNION NIPPLE

main21633-24030×2i198608-198808

21641BGASKET, COMPENSATOR

main21641-11340i198608-198808

21642AGASKET, FLOAT BOWL

main21642-15390i198608-198808

21647AGASKET, ADAPTER

main21647-11090i198608-198808

21652RING, O(FOR SUCTION CHANBER ADJUSTING)

main21652-15250i198608-198808

21655RING, O(FOR LIFTER ROD)

main21655-60010i198608-198808

21655ARING, O(FOR SLOW JET)

main21655-15250i198608-198808

21658RING, O(FOR MAIN GUIDE UPPER)

main21658-15250i198608-198808

21677PLUG

main21677-11400i198703-198808

21679POSITIONER

main21679-11390i198608-198808

21699BOOT(FOR PUMP PLUNGER)

main21699-28150i198608-198808

21699BBOOT(FOR COMPENSATOR)

main21699-11090i198608-198808

21712BUSH, SLIDING ROD

main21712-38010i198608-198808

21722SPRING, PUMP DAMPING

main21722-22010i198608-198808

21723SPRING, IDLE ADJUSTING

main21724-11340i198608-198808

21724SPRING, THROTTLE ADJUSTING

main21723-11230i198708-198808

main21723-38010i198608-198708

21726SPRING, 1ST IDLE ADJUSTING

main21723-60010i198608-198808

21731SPRING, DASH POT OR POSITIONER ADJUSTING

main21723-21030i198608-198808

21732SPRING, THROTTLE ADJUSTING

main21726-15251i198608-198808

21735SPRING, PUMP ARM

main21735-11340i198608-198808

21751UNION, NIPPLE

main21894-11090i198608-198706

main21894-11230i198706-198808

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21756-15250i198608-198808

21763PIN, FLOAT LEVER

main21763-38010i198608-198808

21765PIN(FOR PUMP PLUNGER)

main21765-15250i198608-198808

21769PIN(FOR SUCTION CHANBER ADJUSTING)

main21769-15250i198608-198808

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21781-11391i198608-198808

21785APLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)

main21672-15250i198608-198804

NO.2

main21785-11090i198608-198808

NO.1

main21785-13210i198804-198808

NO.2

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60010×2i198608-198808

21811BOLT, UNION NIPPLE

main21811-11060i198608-198808

21826SCREW, PUMP ARM SET

main21826-24470i198608-198808

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21833-31012i198608-198808

21850SCREW, THROTTLE SWITCH ADJUSTING

main21272-11090i198608-198804

main21272-11230i198804-198808

21869SPRING(FOR MAIN JET)

main21869-11540i198708-198808

main21869-15250i198608-198708

21934SOLENOID, THROTTLE VALVE

main21062-11390i198608-198609

main21062-11400i198608-198609

main21062-11421i198708-198808

main21062-11431i198609-198708

21934ERING, O(FOR SOLENOID VALVE)

main21656-15250i198608-198808

21934FGASKET

main21633-15250i198608-198808

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2157627010CLIP, PUMP STRAINER

main21576-27010

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182115060SCREW, 2ND THROTTLE VALVE SET

main21821-15060

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182134380SCREW, 2ND THROTTLE VALVE SET

main21821-34380

2184211390SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21842-11390

2353744020SCREW(FOR 2ND REGULATOR COVER SET)

main23537-44020

9007911001

main90079-11001

9007914002

main90079-14002

9007961001

main90079-61001

9007961002

main90079-61002

9412040800

main94120-40800

9451100500

main94511-00500

9451100800

main94511-00800

9541119930

main95411-19930
