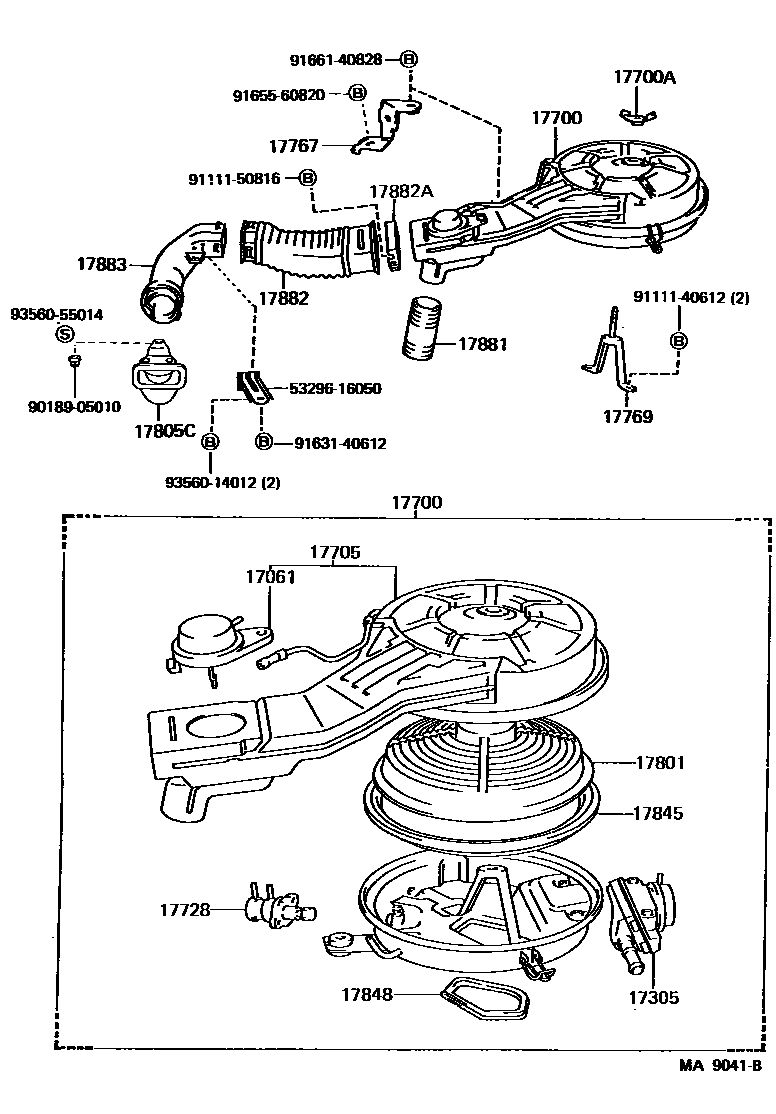

AIR CLEANER
17061DIAPHRAGM SUB-ASSY
17305VALVE SUB-ASSY, REED
17700CLEANER ASSY, AIR
CALIFORNIA SPEC
CALIFORNIA SPEC
17700ANUT, WING(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
CALIFORNIA SPEC
17728VALVE, THERMOSTATIC
17767BRACKET, AIR CLEANER
17769SUPPORT, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CPIPE SUB-ASSY, AIR CLEANER, NO.1
17845GASKET, AIR CLEANER CAP
17848GASKET, AIR CLEANER TO CARBURETOR
17881HOSE, AIR CLEANER, NO.1
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17883HOSE, AIR CLEANER, NO.3
5329616050PACKING, FRONT HEATER SET PLATE
main53296-16050
9018905010
main90189-05010
9111140612
main91111-40612
9111150816
main91111-50816
9163140612
main91631-40612
9165560820
main91655-60820
9166140828
main91661-40828
9356014012
main93560-14012
9356055014
main93560-55014
25 parts on this diagram · 1 diagram in section
