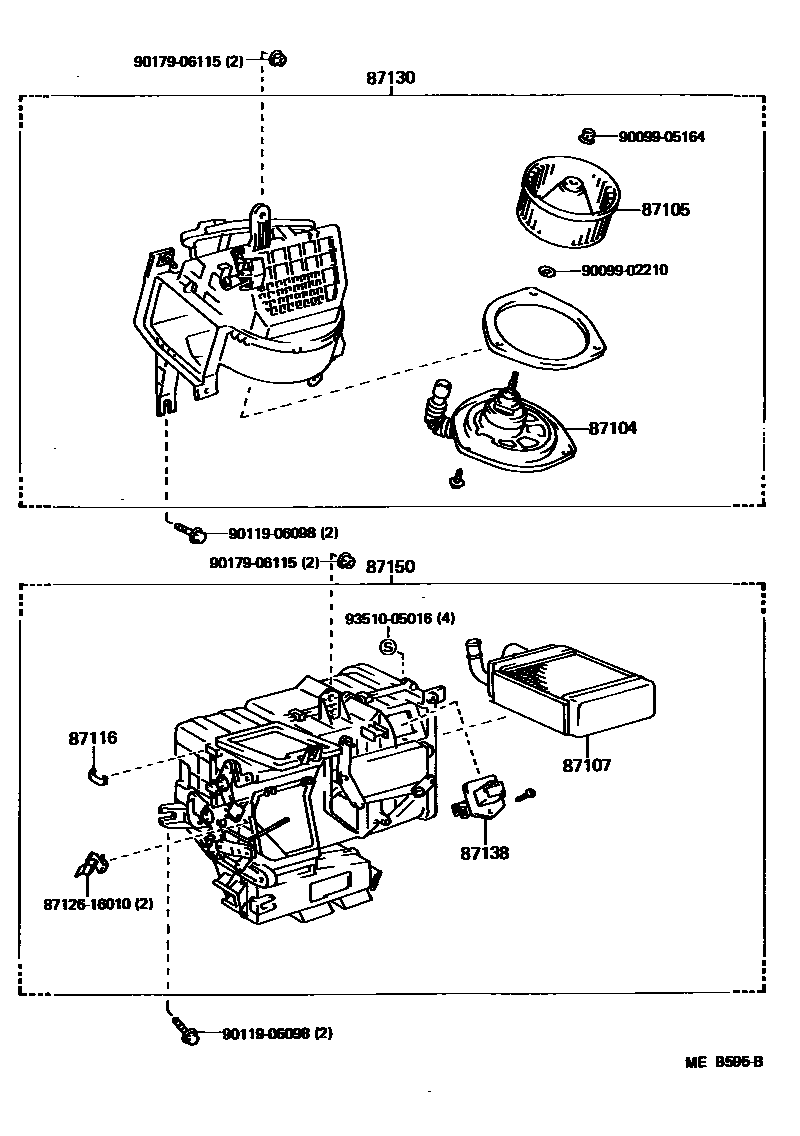

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-16110iAL2#198208-198801

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iAL2#198208-198801

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16080iAL2#..USA198208-198801

main87107-16090iAL2#..CND; AL2#..USA198208-198801

COLD SPEC

87116SPRING, HEATER CASE FASTENING

main87116-14010iAL2#198208-198408

87130BLOWER ASSY, HEATER, FRONT

main87130-16040iAL2#198208-198801

87138RESISTOR, HEATER BLOWER

main87138-16100iAL2#198208-198801

87150RADIATOR ASSY, HEATER

main87150-16090iAL2#..USA198208-198408

main87150-16100iAL21..4F..USA198208-198408

COLD SPEC,W/O RR DUCT

main87150-16110iAL2#..(3FC,5F,6F)..USA198208-198308

COLD SPEC,W/RR DUCT

main87150-16140iAL2#..USA198408-198608

main87150-16150iAL21..4F..USA; AL21..STD..CND..3AC198408-198608

COLD SPEC,W/O RR DUCT; W/O RR DUCT

main87150-16160iAL2#..(3FC,5F,6F)..USA; AL21..3A;AL2#..WG..CND198408-198608

COLD SPEC,W/RR DUCT; W/RR DUCT

main87150-16230iAL2#..USA198608-198801

main87150-16240iAL2#..CND; AL2#..USA198608-198801

COLD SPEC,W/RR DUCT; W/RR DUCT

8712616010CLAMP, HEATER CONTROL

main87126-16010

9009902210

main90099-02210

9009905164

main90099-05164

9011906098

main90119-06098

9017906115

main90179-06115

9351005016

main93510-05016

13 parts on this diagram · 2 diagrams in section
