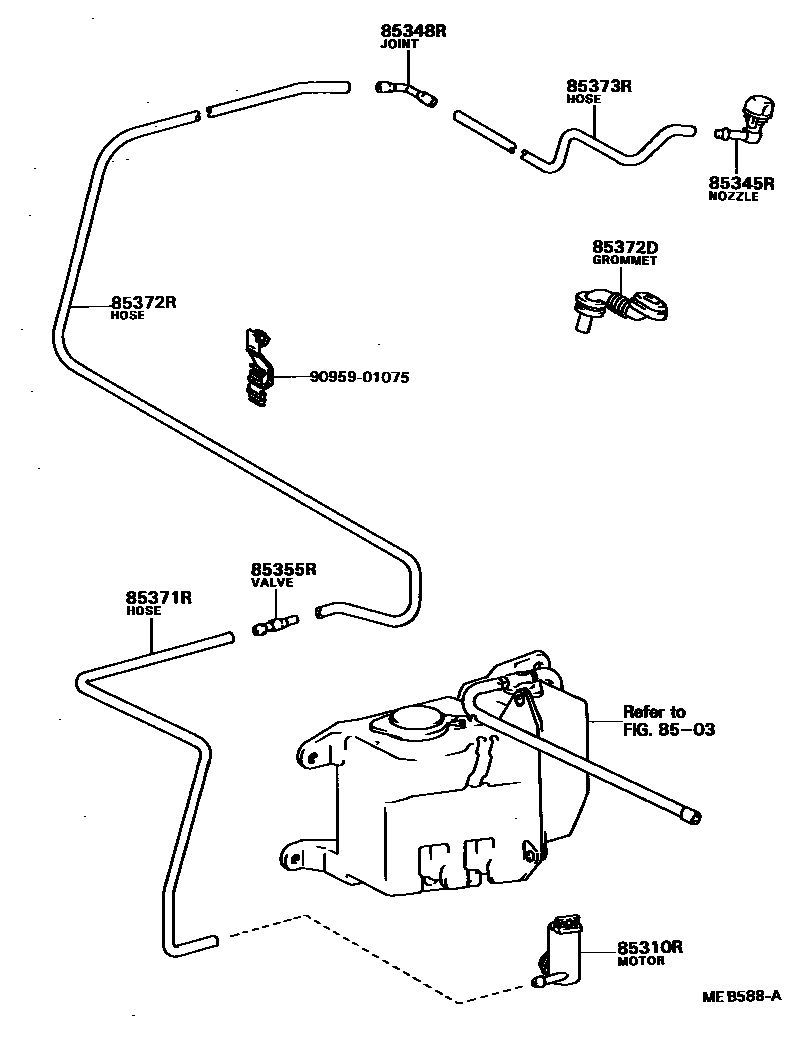

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85310RMOTOR ASSY, REAR WASHER

main85310-16040iAL2#198208-198801

85345RNOZZLE, REAR WASHER

main85035-16040iAL21198208-198301

main85035-16050iAL25198208-198301

main85341-16080iAL21..SED198301-198608

main85341-16090iAL2#..WG198301-198801

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-20080iAL2#198208-198801

85355RVALVE, REAR WASHER HOSE

main85031-12250iAL2#198510-198801

main85031-14080iAL2#198208-198510

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iAL21..3A;AL2#..(3FC,5F,6F)..3AC198208-198308

L=1000(*H,L=400),COLD SPEC

main90446-06013iAL2#..USA;AL21..STD..CND..3AC198208-198801

L=1000

85372DGROMMET, REAR WASHER HOSE

main85372-14020iAL2#198208-198801

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33053iAL21..SED198311-198608

L=3120

main90099-33054iAL2#..WG198311-198603

L=3720

main90099-33177iAL2#..WG198603-198801

L=3670

main90099-33391iAL21..SED198208-198311

L=3200

main90099-33406iAL2#..WG198208-198311

L=3850

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iAL2#198208-198801

L=1000(*H,L=400)

9095901075

main90959-01075

10 parts on this diagram · 1 diagram in section
