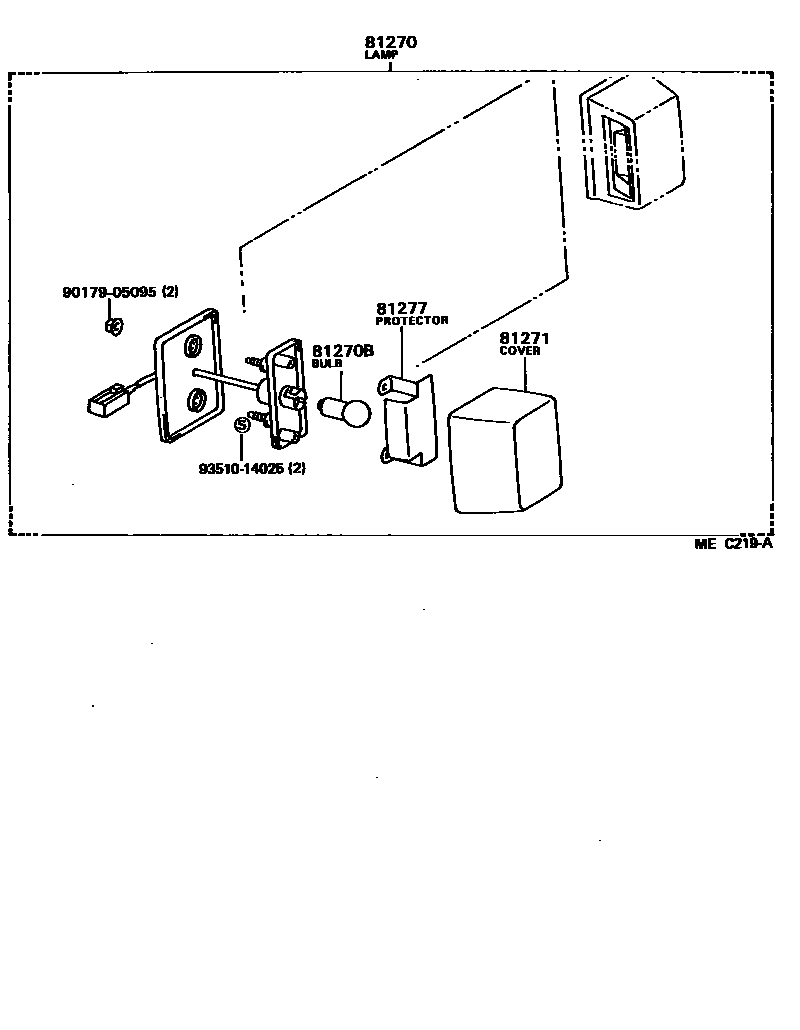

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-19835iAL21198208-198303

RH

main81270-19836iAL21..SED198303-198608

RH

main81270-80004iAL2#..WG198208-198801

main81690-19195iAL21198208-198303

LH

main81690-19196iAL21..SED198303-198608

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iAL21..SED198411-198608

12V 7.5W,12V 7.5W

main99132-11075×2iAL21..SED198208-198411

12V 7.5W,12V 7.5W

main99132-12050×2iAL2#..WG198208-198801

12V 5W,12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-10141×2iAL21..SED198303-198608

main81271-16120×2iAL21198208-198303

main81271-24010×2iAL2#..WG198208-198801

81277SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-16120×2iAL21..SED198208-198608

9017905095

main90179-05095

9351014025

main93510-14025

6 parts on this diagram · 2 diagrams in section
