Toyota TERCEL — HEADLAMP

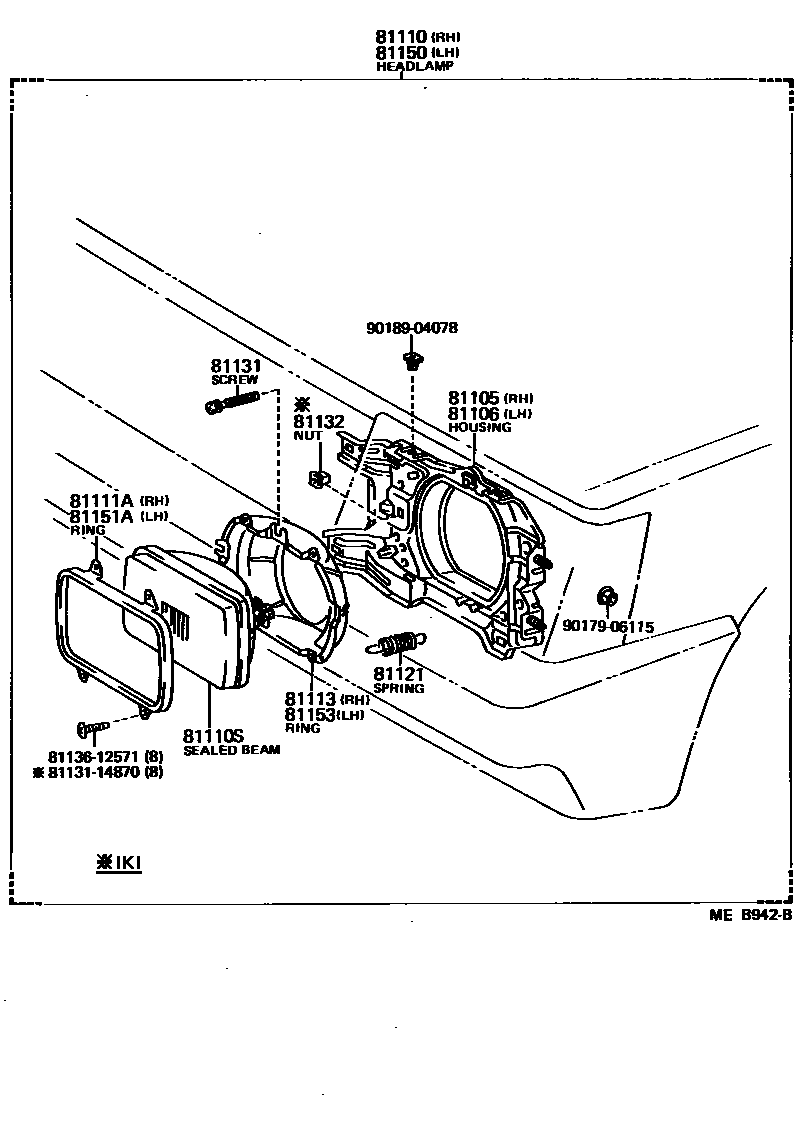

Parts diagram

81105HOUSING SUB-ASSY, HEADLAMP, RH

81106HOUSING SUB-ASSY, HEADLAMP, LH

81110HEADLAMP ASSY, RH

81110SSEALED BEAM UNIT, NO.1

81111ARING, SEALED BEAM RETAINING, NO.1 RH

81113RING, SEALED BEAM MOUNTING, NO.1 RH

81121SPRING, HEADLAMP TENSION

81131SCREW, HEADLAMP ADJUSTING

81132NUT, HEADLAMP SELF LOCKING

81150HEADLAMP ASSY, LH

81151ARING, SEALED BEAM RETAINING, NO.1 LH

81153RING, SEALED BEAM MOUNTING, NO.1 LH

8113114870SCREW, HEADLAMP ADJUSTING

8113612571PROTECTOR, HEADLAMP, NO.1 RH

9017906115

9018904078

16 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota TERCEL

This section contains 28 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: FRONT CLEARANCE LAMP, LOCKING CAP, HEADLAMP, HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, HEADLAMP ASSY, RH.
