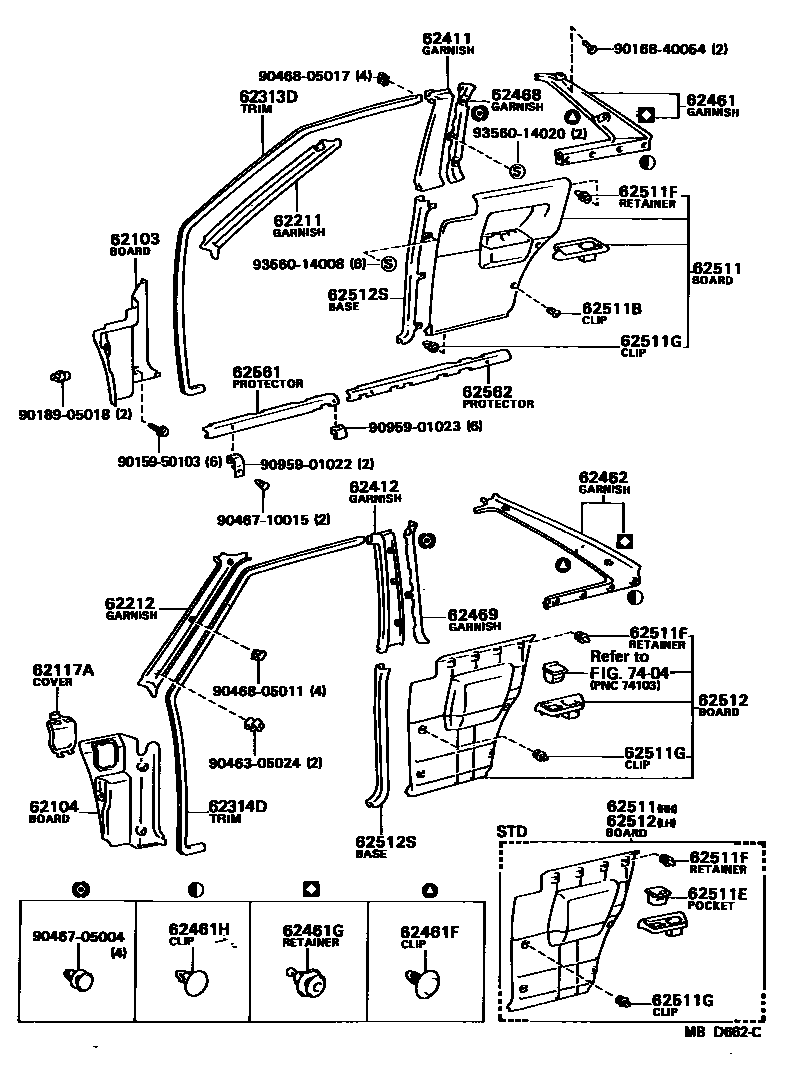

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-16050-02iAL21..SED198208-198408

DARK WINE,RED/MAROON

main62101-16050-03iAL2#198208-198408

GRAY,GRAY

main62101-16050-06iAL2#198208-198408

BROWN,BROWN

main62111-16040-01iAL2#198608-198801

BLACK,BLACK

main62111-16040-02iAL21..SED..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main62111-16040-05iAL21..3DS198605-198608

BEIGE,BEIGE

main62111-16040-13iAL2#198408-198608

GRAY,GRAY

main62111-16040-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-16050-02iAL21..SED198208-198408

DARK WINE,RED/MAROON

main62102-16050-03iAL2#198208-198408

GRAY,GRAY

main62102-16050-06iAL2#198208-198408

BROWN,BROWN

main62112-16040-01iAL2#198608-198801

BLACK,BLACK

main62112-16040-02iAL21..SED..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main62112-16040-05iAL21..3DS198605-198608

BEIGE,BEIGE

main62112-16040-13iAL2#198408-198608

GRAY,GRAY

main62112-16040-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main55545-16070-02iAL21..SED198208-198408

DARK WINE,RED/MAROON

main55545-16070-03iAL2#198208-198408

GRAY,GRAY

main55545-16070-06iAL2#198208-198408

BROWN,BROWN

main55545-16071-01iAL2#198608-198801

BLACK,BLACK

main55545-16071-02iAL21..SED..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main55545-16071-03iAL2#198408-198608

GRAY,GRAY

main55545-16071-05iAL2#198408-198605

BEIGE,BEIGE

main55545-16071-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62211GARNISH, FRONT PILLAR, RH

main62211-16020iAL2#198208-198605

IVORY

main62211-16020-18iAL2#..WG;AL21..5DS198605-198801

IVORY,IVORY

62212GARNISH, FRONT PILLAR, LH

main62212-16020iAL2#198208-198605

IVORY

main62212-16020-18iAL2#..WG;AL21..5DS198605-198801

IVORY,IVORY

62313DTRIM, FRONT DOOR OPENING, RH

main62313-16030-02iAL21..3DS198208-198408

DARK WINE,DARK WINE

main62313-16030-03iAL21..3DS198208-198408

GRAY,GRAY

main62313-16030-06iAL21..3DS198208-198408

BROWN,BROWN

main62313-16031-02iAL21..3DS..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main62313-16031-05iAL21..3DS198408-198608

BEIGE,BEIGE

main62313-16031-13iAL21..3DS198408-198608

GRAY,GRAY

main62313-16040-03iAL2#..WG;AL21..5DS198208-198408

GRAY,GRAY

main62313-16040-06iAL2#..WG;AL21..5DS198208-198408

BROWN,BROWN

main62313-16041-01iAL2#198608-198801

BLACK,BLACK

main62313-16041-02iAL21..5DS198208-198608

DARK WINE,DARK WINE

main62313-16041-05iAL2#..WG;AL21..5DS198408-198605

BEIGE,BEIGE

main62313-16041-13iAL2#..WG;AL21..5DS198408-198608

GRAY,GRAY

main62313-16041-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62314DTRIM, FRONT DOOR OPENING, LH

main62313-16030-02iAL21..3DS198208-198408

DARK WINE,DARK WINE

main62313-16030-03iAL21..3DS198208-198408

GRAY,GRAY

main62313-16030-06iAL21..3DS198208-198408

BROWN,BROWN

main62313-16031-02iAL21..3DS..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main62313-16031-05iAL21..3DS198408-198608

BEIGE,BEIGE

main62313-16031-13iAL21..3DS198408-198608

GRAY,GRAY

main62313-16040-03iAL2#..WG;AL21..5DS198208-198408

GRAY,GRAY

main62313-16040-06iAL2#..WG;AL21..5DS198208-198408

BROWN,BROWN

main62313-16041-01iAL2#198608-198801

BLACK,BLACK

main62313-16041-02iAL21..5DS198208-198608

DARK WINE,DARK WINE

main62313-16041-05iAL2#..WG;AL21..5DS198408-198605

BEIGE,BEIGE

main62313-16041-13iAL2#..WG;AL21..5DS198408-198608

GRAY,GRAY

main62313-16041-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62411GARNISH, CENTER PILLAR, RH

main62411-16070-02iAL21..3DS..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main62411-16070-03iAL21..3DS198208-198408

GRAY,GRAY

main62411-16070-05iAL21..3DS198408-198608

BEIGE,BEIGE

main62411-16070-06iAL21..3DS198208-198408

BROWN,BROWN

main62411-16070-13iAL21..3DS198408-198608

GRAY,GRAY

62412GARNISH, CENTER PILLAR, LH

main62412-16070-02iAL21..3DS198208-198408

DARK WINE,DARK WINE

main62412-16070-03iAL21..3DS198208-198408

GRAY,GRAY

main62412-16070-05iAL21..3DS198408-198608

BEIGE,BEIGE

main62412-16070-06iAL21..3DS198208-198408

BROWN,BROWN

main62412-16070-13iAL21..3DS198408-198608

GRAY,GRAY

62461GARNISH, ROOF SIDE TRIM, RH

main62471-16070iAL21..3DS198208-198608

IVORY

main62471-16090iAL21..5DS198208-198605

IVORY

main62471-16090-18iAL21..5DS198605-198608

IVORY,IVORY

main62471-16120iAL2#..WG198208-198605

IVORY

main62471-16120-18iAL2#..WG198605-198801

IVORY,IVORY

62461FCLIP (FOR ROOF SIDE TRIM GARNISH)

main90467-05016-08×6iAL21..3DS198208-198608

IVORY,IVORY

62461GRETAINER, DOOR TRIM

main67771-12020×6iAL2#198208-198407

main67771-23010×6iAL2#..WG;AL21..5DS198407-198801

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-05016-03×8iAL2#..WG198208-198408

GRAY,GRAY

main90467-05016-06×8iAL2#..WG198208-198408

BROWN,BROWN

main90467-05016-08×8iAL2#..WG198408-198605

IVORY,IVORY

main90467-05016-18×6iAL21..5DS; AL21..STD..3A;AL21..3DS..(3FC,5F)..3AC198605-198608

IVORY,IVORY

62462GARNISH, ROOF SIDE TRIM, LH

main62472-16070iAL21..3DS198208-198608

IVORY

main62472-16090iAL21..5DS198208-198605

IVORY

main62472-16090-18iAL21..5DS198605-198608

IVORY,IVORY

main62472-16120iAL2#..WG198208-198605

IVORY

main62472-16120-18iAL2#..WG198605-198801

IVORY,IVORY

62468GARNISH, CENTER PILLAR, REAR RH

main62468-16010-02iAL21..3DS198208-198408

DARK WINE,DARK WINE

main62468-16010-03iAL21..3DS198208-198408

GRAY,GRAY

main62468-16010-05iAL21..3DS198408-198608

BEIGE,BEIGE

main62468-16010-06iAL21..3DS198208-198408

BROWN,BROWN

main62468-16010-13iAL21..3DS198408-198608

GRAY,GRAY

main62468-16020-01iAL2#198608-198801

BLACK,BLACK

main62468-16020-02iAL21..5DS198208-198608

DARK WINE,DARK WINE

main62468-16020-03iAL2#..WG;AL21..5DS198208-198408

GRAY,GRAY

main62468-16020-05iAL2#..WG;AL21..5DS198408-198605

BEIGE,BEIGE

main62468-16020-06iAL2#..WG;AL21..5DS198208-198408

BROWN,BROWN

main62468-16020-13iAL2#..WG;AL21..5DS198408-198608

GRAY,GRAY

main62468-16020-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62469GARNISH, CENTER PILLAR, REAR LH

main62469-16010-02iAL21..3DS198208-198408

DARK WINE,DARK WINE

main62469-16010-03iAL21..3DS198208-198408

GRAY,GRAY

main62469-16010-05iAL21..3DS198408-198608

BEIGE,BEIGE

main62469-16010-06iAL21..3DS198208-198408

BROWN,BROWN

main62469-16010-13iAL21..3DS198408-198608

GRAY,GRAY

main62469-16020-01iAL2#198608-198801

BLACK,BLACK

main62469-16020-02iAL21..5DS198208-198608

DARK WINE,DARK WINE

main62469-16020-03iAL2#..WG;AL21..5DS198208-198408

GRAY,GRAY

main62469-16020-05iAL2#..WG;AL21..5DS198408-198605

BEIGE,BEIGE

main62469-16020-06iAL2#..WG;AL21..5DS198208-198408

BROWN,BROWN

main62469-16020-13iAL2#..WG;AL21..5DS198408-198608

GRAY,GRAY

main62469-16020-15iAL2#..WG;AL21..5DS198605-198801

BEIGE,DARK BEIGE

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-16340-02iAL21..SR5198208-198408

DARK WINE,RED/MAROON

main62510-16340-03iAL21..SR5198208-198408

GRAY,GRAY

main62510-16340-06iAL21..SR5198208-198408

BROWN,BROWN

main62510-16350-02iAL21..3DS..(DLX,STD)198208-198408

DARK WINE,RED/MAROON

main62510-16350-03iAL21..3DS..(DLX,STD)198208-198408

GRAY,GRAY

main62510-16350-05iAL21..3DS..(DLX,STD)198408-198608

BEIGE,BEIGE

main62510-16350-06iAL21..3DS..(DLX,STD)198208-198408

BROWN,BROWN

main62510-16350-12iAL21..3DS..(DLX,STD)198408-198608

DARK WINE,DARK WINE

main62510-16350-13iAL21..3DS..(DLX,STD)198408-198608

GRAY,GRAY

main62510-16410-03iAL21..SR5198408-198508

GRAY,GRAY

main62510-16410-05iAL21..SR5198408-198508

BEIGE,BEIGE

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06017-02×4iAL21..3DS198208-198408

DARK WINE,DARK WINE

main90467-06017-13×4iAL21..3DS198208-198408

GRAY,GRAY

main90467-06017-26×4iAL21..3DS198208-198408

BROWN,BROWN

main90467-06017-45×4iAL21..3DS198408-198608

BEIGE,BEIGE

main90467-06017-53×4iAL21..3DS198408-198608

GRAY,GRAY

62511EPOCKET, QUARTER TRIM

main62594-16020-02iAL21..3DS..STD198208-198408

DARK WINE,RED/MAROON

main62594-16020-03iAL21..3DS..STD198208-198408

GRAY,GRAY

main62594-16020-05iAL21..3DS..STD198408-198608

BEIGE,BEIGE

main62594-16020-06iAL21..3DS..STD198208-198408

BROWN,BROWN

main62594-16020-12iAL21..3DS..STD198408-198608

DARK WINE,DARK WINE

main62594-16020-13iAL21..3DS..STD198408-198608

GRAY,GRAY

62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)

main67771-12020×8iAL21..3DS198208-198408

main67771-22010×8iAL21..3DS198408-198608

62511GCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-10019×4iAL21..3DS198208-198608

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-16280-02iAL21..3DS..DLX198208-198408

DARK WINE,RED/MAROON

main62520-16280-03iAL21..3DS..DLX198208-198408

GRAY,GRAY

main62520-16280-05iAL21..3DS..DLX198408-198608

BEIGE,BEIGE

main62520-16280-06iAL21..3DS..DLX198208-198408

BROWN,BROWN

main62520-16280-12iAL21..3DS..DLX198408-198608

DARK WINE,DARK WINE

main62520-16280-13iAL21..3DS..DLX198408-198608

GRAY,GRAY

main62520-16290-02iAL21..SR5198208-198408

DARK WINE,RED/MAROON

main62520-16290-03iAL21..SR5198208-198408

GRAY,GRAY

main62520-16290-06iAL21..SR5198208-198408

BROWN,BROWN

main62520-16300-02iAL21..3DS..STD198208-198408

DARK WINE,RED/MAROON

main62520-16300-03iAL21..3DS..STD198208-198408

GRAY,GRAY

main62520-16300-05iAL21..3DS..STD198408-198608

BEIGE,BEIGE

main62520-16300-06iAL21..3DS..STD198208-198408

BROWN,BROWN

main62520-16300-12iAL21..3DS..STD198408-198608

DARK WINE,DARK WINE

main62520-16300-13iAL21..3DS..STD198408-198608

GRAY,GRAY

main62520-16380-03iAL21..SR5198408-198508

GRAY,GRAY

main62520-16380-05iAL21..SR5198408-198508

BEIGE,BEIGE

62512SBASE, QUARTER TRIM, FRONT

main62517-16010-02iAL21..3DS..(DLX,STD)198408-198608

RH,DARK WINE,DARK WINE

main62517-16010-03iAL21..3DS198208-198408

RH,GRAY,GRAY

main62517-16010-05iAL21..3DS198408-198608

RH,BEIGE,BEIGE

main62517-16010-06iAL21..3DS198208-198408

RH,BROWN,BROWN

main62517-16010-13iAL21..3DS198408-198608

RH,GRAY,GRAY

main62518-16010-02iAL21..3DS198208-198408

LH,DARK WINE,DARK WINE

main62518-16010-03iAL21..3DS198208-198408

LH,GRAY,GRAY

main62518-16010-05iAL21..3DS198408-198608

LH,BEIGE,BEIGE

main62518-16010-06iAL21..3DS198208-198408

LH,BROWN,BROWN

main62518-16010-13iAL21..3DS198408-198608

LH,GRAY,GRAY

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-16010iAL2#198208-198801

RH

main62562-16010iAL2#198208-198801

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-16010iAL2#198208-198605

RH

main62563-16020iAL2#198605-198801

RH

main62564-16010iAL2#198208-198605

LH

main62564-16020iAL2#198605-198801

LH

7404ASH RECEPTACLE

→ Go to FIG 74-04

9015950103

main90159-50103

9016840054

main90168-40054

9018905018

main90189-05018

9046305024

main90463-05024

9046705004

main90467-05004

9046710015

main90467-10015

9046805011

main90468-05011

9046805017

main90468-05017

9095901022

main90959-01022

9095901023

main90959-01023

9356014008

main93560-14008

9356014020

main93560-14020

38 parts on this diagram · 3 diagrams in section
