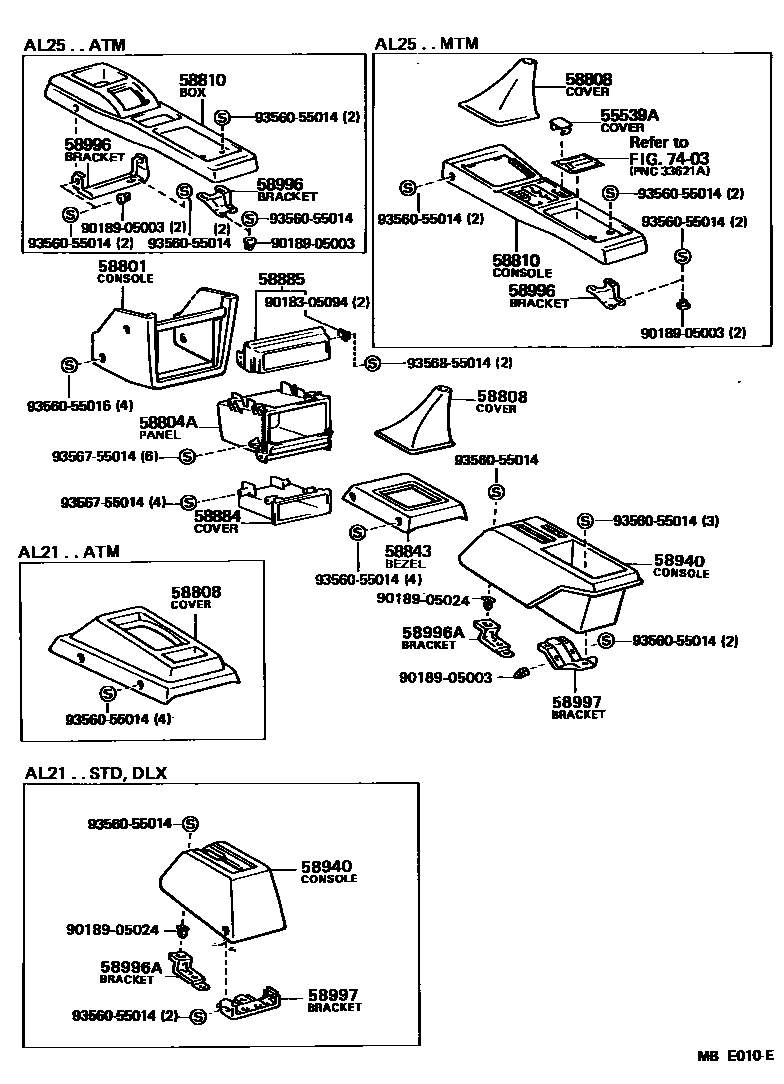

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58801CONSOLE SUB-ASSY, UPPER
58804APANEL SUB-ASSY, CONSOLE, UPPER
sub58804-16010
58808COVER SUB-ASSY, SHIFTING HOLE
DARK WINE,RED/MAROON
GRAY,GRAY
BROWN,BROWN
BLACK,BLACK
GRAY,GRAY
BEIGE,BEIGE
BROWN,BROWN
GRAY,GRAY
BEIGE,DARK BEIGE
BEIGE,DARK BEIGE
sub58841-16040
58810CONSOLE ASSY
58843BEZEL, SHIFTING HOLE
58940CONSOLE ASSY, REAR
W/SEMI CONSOLE BOX,DARK WINE,RED/MAROON
sub58901-16010
W/SEMI CONSOLE BOX,BEIGE,DARK BEIGE
sub58901-16010
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
FR
RR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
W/SEMI CONSOLE BOX
7403
9018305094
main90183-05094
9018905003
main90189-05003
9018905024
main90189-05024
9356055014
main93560-55014
9356055016
main93560-55016
9356755014
main93567-55014
9356855014
main93568-55014
20 parts on this diagram · 3 diagrams in section
