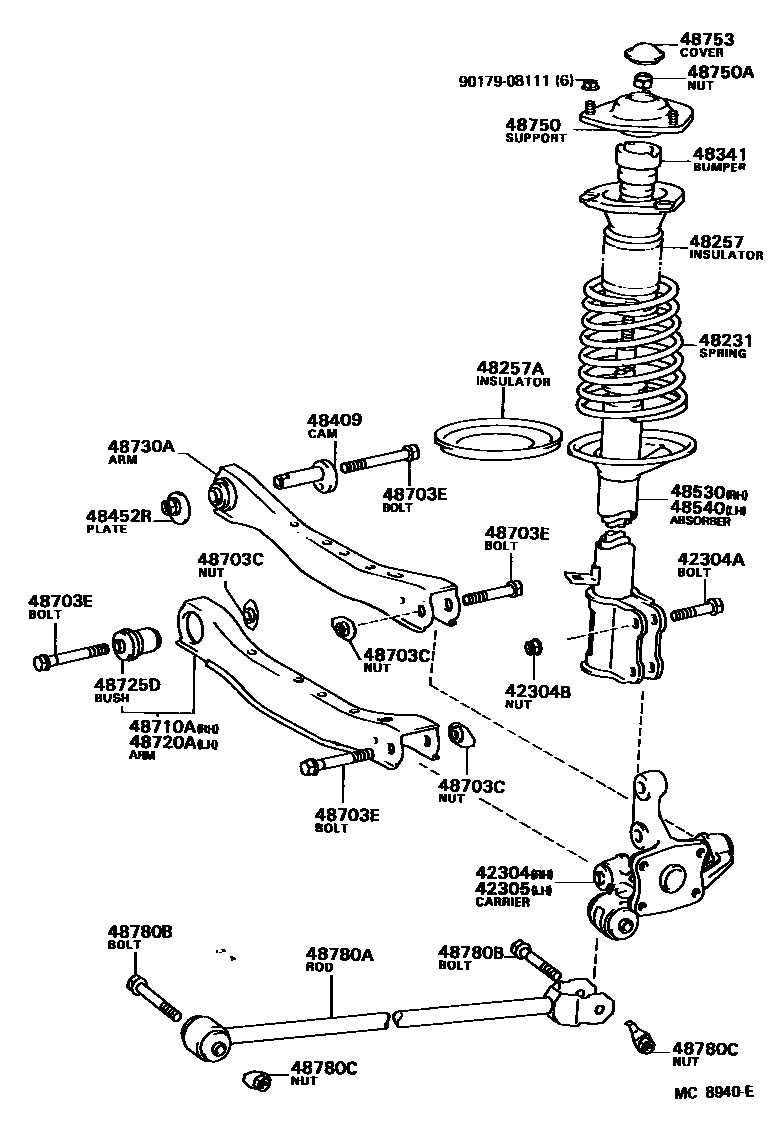

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48703CNUT(FOR REAR SUSPENSION ARM)
NO.1 ARM X CARRIPER
NO.2 ARM X CARRIPER
NO.1 ARM X BODY
48703EBOLT(FOR REAR SUSPENSION ARM)
NO.2 ARM X BODY
NO.2 ARM X CARRIER
*12-1.25PX72-25,NO.1 ARM
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725DBUSH, REAR SUSPENSION ARM, NO.3
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
ROD X CARRIPER
ROD X BODY
9017908111
main90179-08111
28 parts on this diagram · 2 diagrams in section
