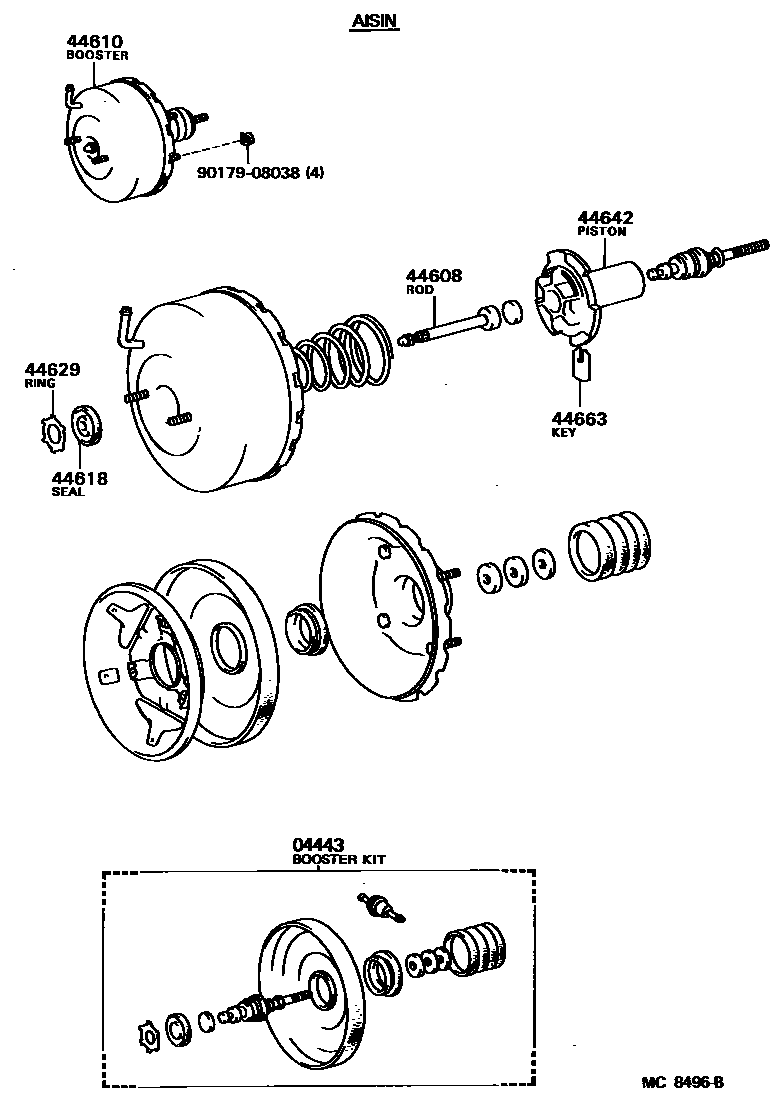

BRAKE BOOSTER & VACUUM TUBE

0001 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-16060iAL21..SED198408-198501

JKC

main04443-16070iAL21..SED198208-198408

main04443-16071iAL21..SED198408-198608

AISIN

main04443-16090iAL2#..WG198208-198408

main04443-16091iAL2#..WG198501-198801

main04443-16100iAL2#..WG198408-198501

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iAL21..SED198408-198801

AISIN

main44606-32010iAL2#198208-198408

main44608-32020iAL2#198408-198501

JKC

44610BOOSTER ASSY, BRAKE

main44610-16070iAL21..SED198408-198501

JKC

main44610-16080iAL21..SED198208-198408

main44610-16081iAL21..SED198408-198501

AISIN

main44610-16110iAL2#..WG198208-198501

main44610-16130iAL21..SED198501-198608

main44610-16150iAL2#..WG198501-198801

44618SEAL, BOOSTER BODY

main44621-28120iAL2#198208-198408

44629RING, CIRCULAR INTERNAL

main44628-28120iAL21..SED198408-198801

44642PISTON, BRAKE BOOSTER

main44642-16050iAL2#198208-198408

44663KEY, VALVE STOPPER

main44635-28120iAL2#198208-198408

9017908038

main90179-08038

8 parts on this diagram · 3 diagrams in section
