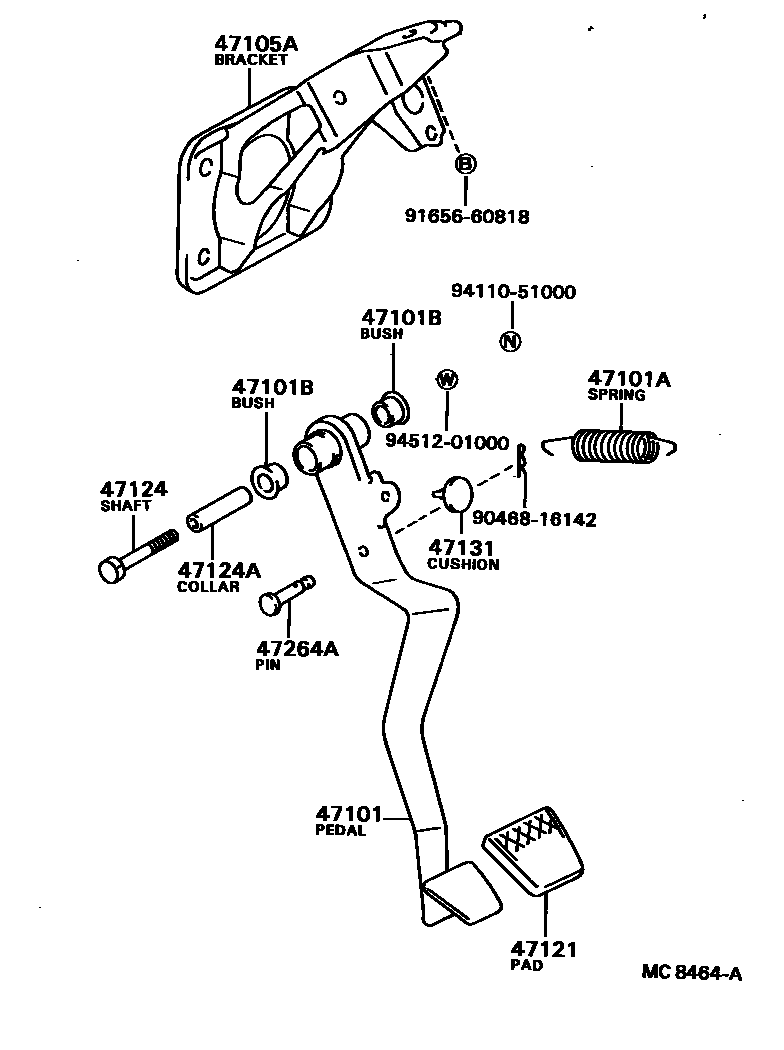

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-16070iAL2#..MTM198208-198801

main47101-16080iAL2#..3FC198208-198801

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14002iAL2#198208-198801

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192×2iAL2#198208-198801

47105ASUPPORT SUB-ASSY, BRAKE PEDAL

main55106-16100iAL2#198208-198801

47121PAD, BRAKE PEDAL

main31321-12030iAL2#..MTM198208-198801

main47121-12020iAL2#..3FC198208-198801

47124SHAFT, BRAKE PEDAL

main90101-10039iAL2#198208-198801

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10021iAL2#198208-198801

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAL2#198208-198801

47264APIN(FOR PUSH ROD)

main90249-08051iAL2#198208-198801

9046816142

main90468-16142

9165660818

main91656-60818

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
