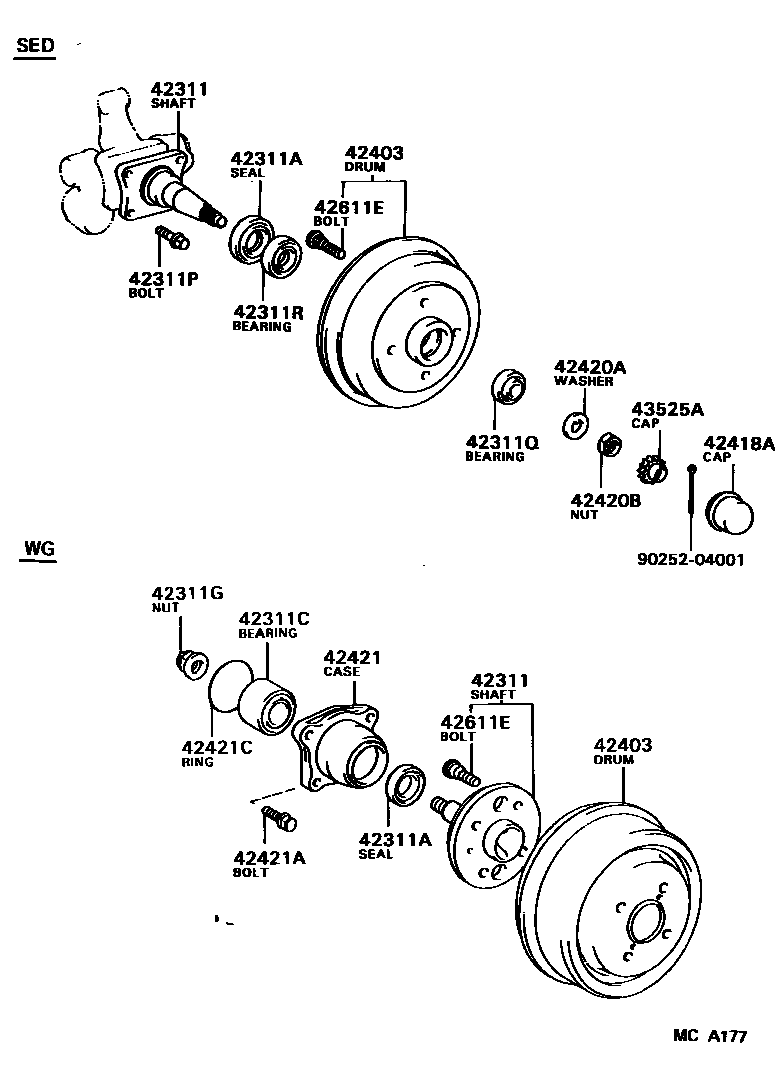

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311SHAFT, REAR AXLE

main42301-12110×2iAL21..WG198308-198408

main42301-12120×2iAL21..WG198408-198708

main42311-16020×2iAL21..SED198208-198608

main42311-16030×2iAL25198208-198801

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-36001×2iAL21..SED198208-198608

main90311-41001×2iAL21..WG198308-198608

main90311-41003×2iAL21198608-198708

main90311-42055×2iAL25198208-198801

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-28006×2iAL21..WG198308-198708

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20003×2iAL21..WG198308-198708

42311PBOLT(FOR REAR AXLE SHAFT)

main90105-10006×8iAL21..SED198208-198608

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90368-17017×2iAL21..SED198208-198608

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-25003×2iAL21..SED198208-198608

42403DRUM SUB-ASSY, REAR BRAKE

main42403-16020×2iAL21..SED198208-198608

main42431-16030×2iAL25198208-198408

main42431-16031×2iAL25198408-198801

main42431-20070×2iAL21..WG198308-198708

42418ACAP, REAR HUB GREASE

main43514-12010×2iAL21..SED198208-198608

42420AWASHER, CLAW (FOR REAR AXLE SHAFT)

main90214-16010×2iAL21..SED198208-198608

42420BNUT (FOR REAR AXLE SHAFT)

main90170-16137×2iAL21..SED198208-198608

42421CASE, REAR AXLE BEARING

main42421-12010iAL21..WG198308-198708

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10006×8iAL21..WG198308-198708

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-61002×2iAL21..WG198308-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035×8iAL25198208-198305

main90942-02047×8iAL21198208-198801

43525ACAP, REAR WHEEL ADJUSTING LOCK

main43525-20011×2iAL21..SED198208-198608

9025204001

main90252-04001

17 parts on this diagram · 2 diagrams in section
