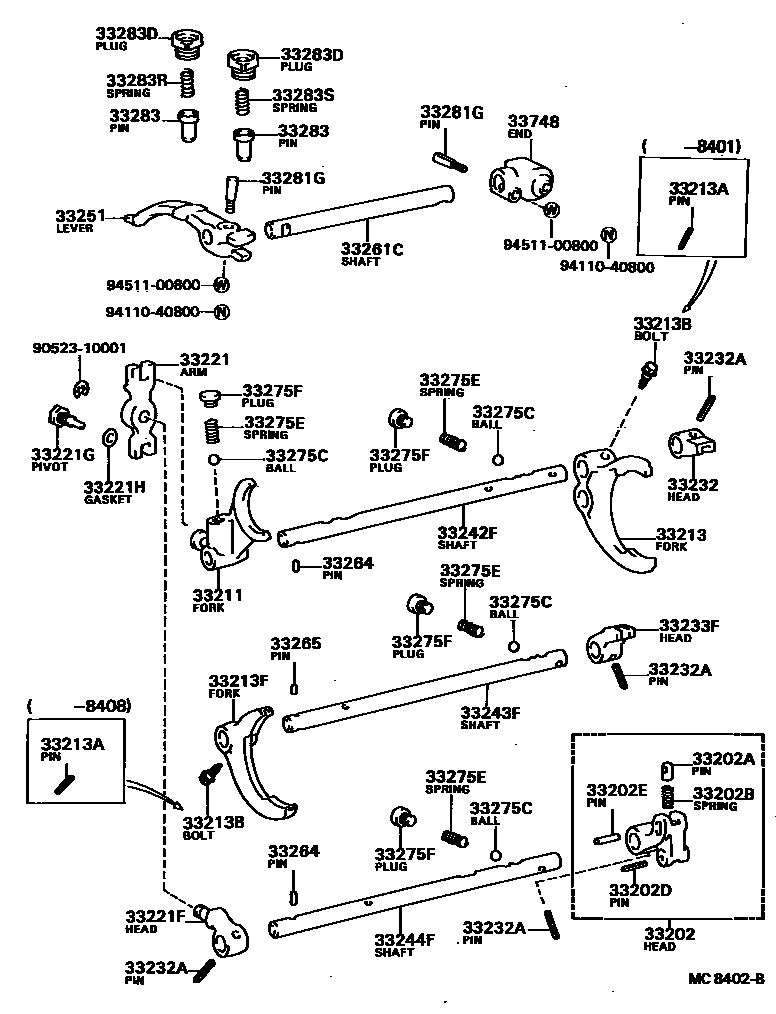

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33202HEAD SUB-ASSY, REVERSE SHIFT
33202APIN, REVERSE RESTRICT, NO.2
33202BSPRING, COMPRESSION, NO.1(FOR REVERSE RESTRICT PIN)
33202DPIN, SLOTTED SPRING(FOR REVERSE RESTRICT)
33202EPIN, STRAIGHT(FOR REVERSE RESTRICT)
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213FFORK, 3RD & 4TH SHIFT
33221FHEAD, REVERSE SHIFT ARM
33221GPIVOT, REVERSE SHIFT ARM
33221HGASKET(FOR PIVOT REVERSE SHIFT ARM)
33232HEAD, 1ST & 2ND SHIFT
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33233FHEAD, 3RD & 4TH SHIFT
33242SHAFT, GEAR SHIFT FORK, NO.1
33244FSHAFT,5TH & REVERSE SHIFT
33251LEVER, SHIFT & SELECT
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
33265PIN, SHIFT INTERLOCK, NO.2
L=9.9,OD=5
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275CBALL (FOR SHIFT DETENT)
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
L=14.64
L=21.2
33275FPLUG (FOR SHIFT DETENT BALL)
33281GPIN, LEVER LOCK
33283PIN, REVERSE RESTRICT, NO.1
TRANSFER ADAPTER SIDE
T/M CASE SIDE
SHIFT HEAD NO.4
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283RSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN RH)
33283SSPRING, COMPRESSION (FOR REVERSE RESTRICT PIN LH)
33748END, GEAR SHIFTING ROD
9052310001
main90523-10001
9411040800
main94110-40800
9451100800
main94511-00800
38 parts on this diagram · 4 diagrams in section
