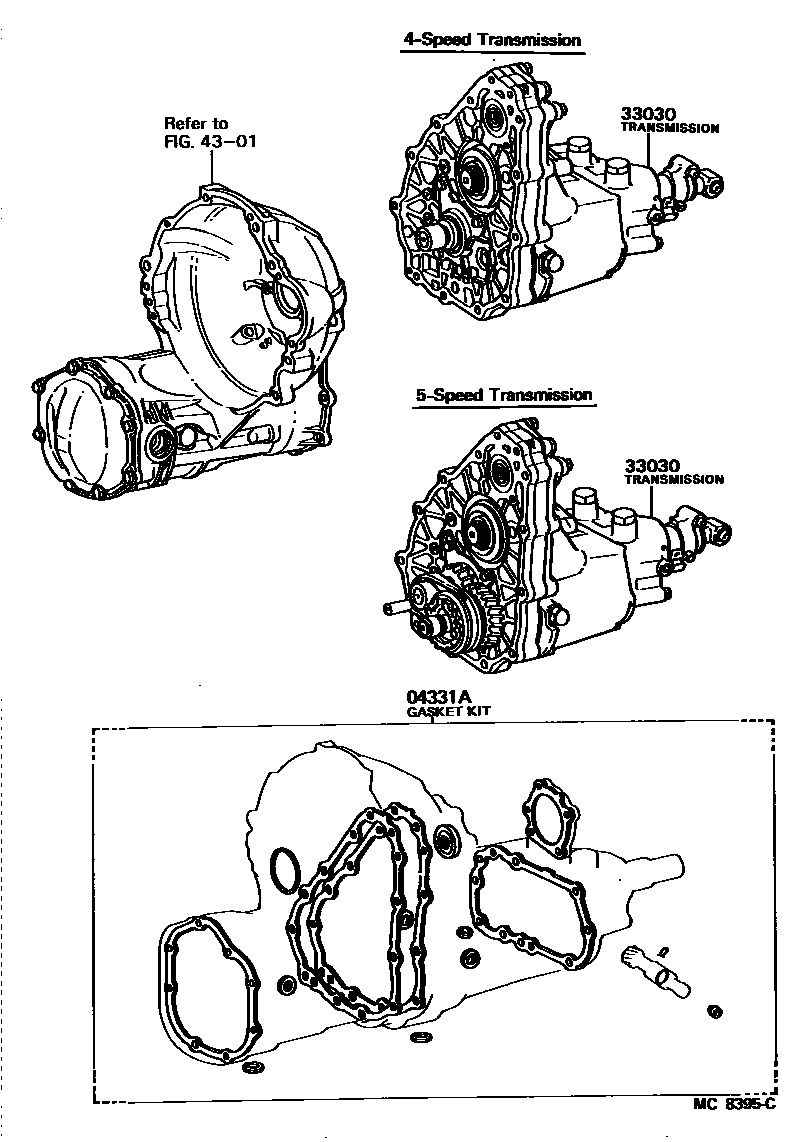

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-16010iAL21..MTM198208-198801

main04331-16020iAL25..6F198208-198801

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-16907iAL21..4F..3AC198208-198408

main33030-16908iAL21..4F..3A198208-198408

main33030-16909iAL21..5F198208-198408

main33030-16911iAL25..6F198208-198408

main33030-16913iAL21..4F..3A198408-198608

main33030-16914iAL21..4F..3AC198408-198608

main33030-16915iAL21..5F198408-198801

main33030-16917iAL25..6F198408-198801

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

3 parts on this diagram · 2 diagrams in section
