FUEL PUMP & PIPE

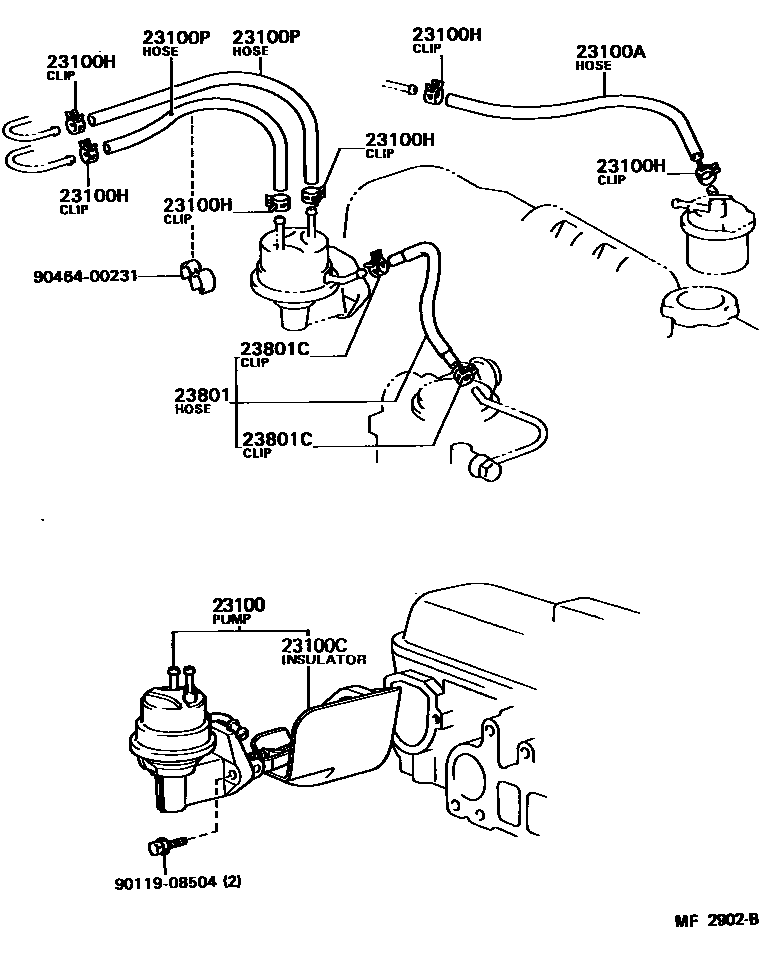

Parts diagram

23100PUMP ASSY, FUEL

main23100-19165i198208-198801

23100AHOSE, FUEL

main95332-06030i198208-198701

*H,L=240

main95333-06030i198701-198801

*H,L=240

23100CINSULATOR, FUEL PUMP

main23915-15010i198208-198502

main23915-15011i198502-198801

23100HCLIP(FOR FUEL HOSE)

main96132-30400×2i198208-198801

RETURN

main96132-30600×4i198208-198801

MAIN

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95332-04030i198208-198701

*H,L=260,RETURN

main95332-06030i198208-198606

*H,L=280,MAIN

main95333-04030i198701-198801

*H,L=260,RETURN

main95333-06028i198606-198702

MAIN

main95333-06030i198702-198801

*H,L=280,MAIN

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-15010i198208-198801

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600×2i198208-198801

9011908504

main90119-08504

9046400231

main90464-00231

9 parts on this diagram · 1 diagram in section
