AIR CLEANER

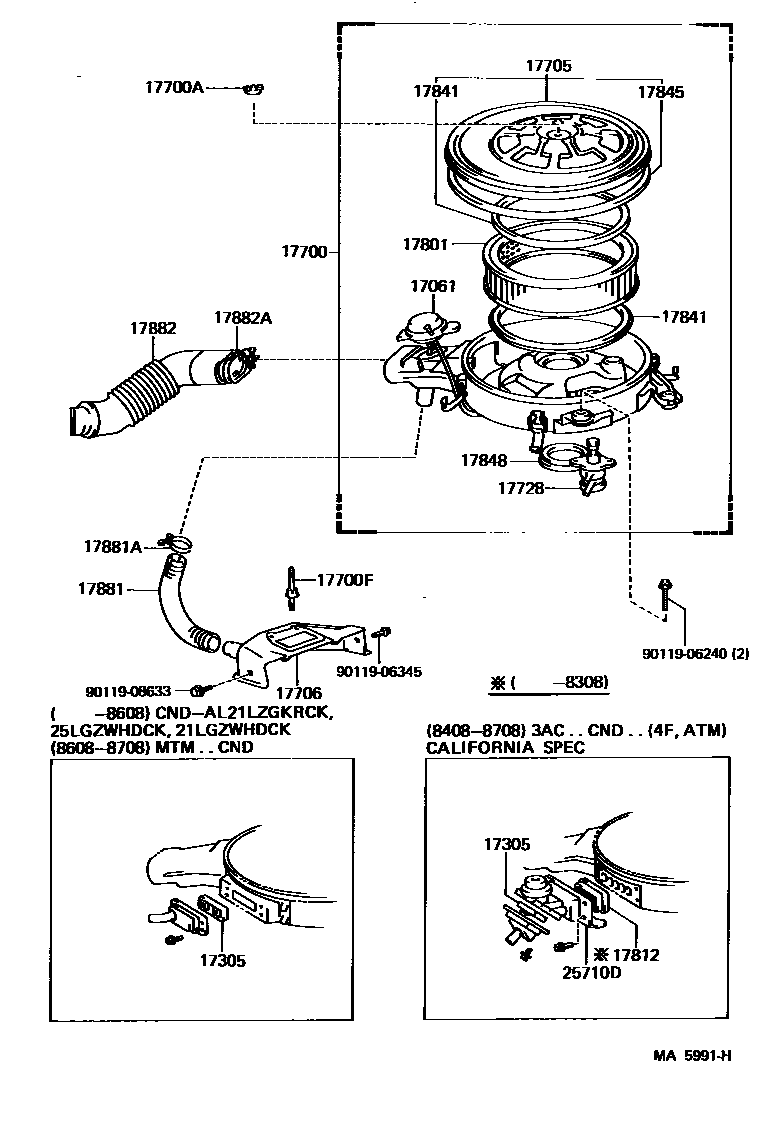

Parts diagram

17061DIAPHRAGM SUB-ASSY

main17061-15020i198208-198305

main17061-15040i198305-198801

17305VALVE SUB-ASSY, REED

main17305-15010i198208-198708

main17305-31010i198408-198708

main17305-31010i198208-198801

CALIFORNIA SPEC

17700CLEANER ASSY, AIR

main17700-15110i198208-198308

main17700-15111i198308-198801

main17700-15120i198208-198308

CALIFORNIA SPEC

main17700-15121i198308-198801

CALIFORNIA SPEC

main17700-15121i198408-198708

main17700-15130i198208-198708

17700ANUT, WING(FOR AIR CLEANER)

main90175-06005i198208-198801

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06019i198208-198801

17705CAP SUB-ASSY, AIR CLEANER

main17705-14010i198208-198801

17706INLET SUB-ASSY, AIR CLEANER, NO.2

main17902-15060i198208-198801

17728VALVE, THERMOSTATIC

main17728-15020i198208-198801

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-15010i198208-198801

17812FILTER, AIR CLEANER, NO.2

main17812-15010i198208-198308

CALIFORNIA SPEC

17841GASKET, FILTER ELEMENT

main17841-15010i198208-198801

17845GASKET, AIR CLEANER CAP

main17845-14010i198208-198210

main17845-61011i198210-198801

*G,L=1060

17848GASKET, AIR CLEANER TO CARBURETOR

main90430-63001i198208-198801

17881HOSE, AIR CLEANER, NO.1

main17881-16110i198505-198707

main17881-16210i198707-198801

main17881-63010i198208-198502

main17881-74040i198502-198505

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10460i198208-198801

17882HOSE, AIR CLEANER, NO.2

main17881-15050i198208-198801

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01005i198208-198801

25710DVALVE ASSY, AIR SWITCHING

main25710-15060i198208-198308

CALIFORNIA SPEC

main25710-16010i198408-198708

main25710-16010i198308-198801

CALIFORNIA SPEC

9011906240

main90119-06240

9011906345

main90119-06345

9011908633

main90119-08633

21 parts on this diagram · 1 diagram in section
