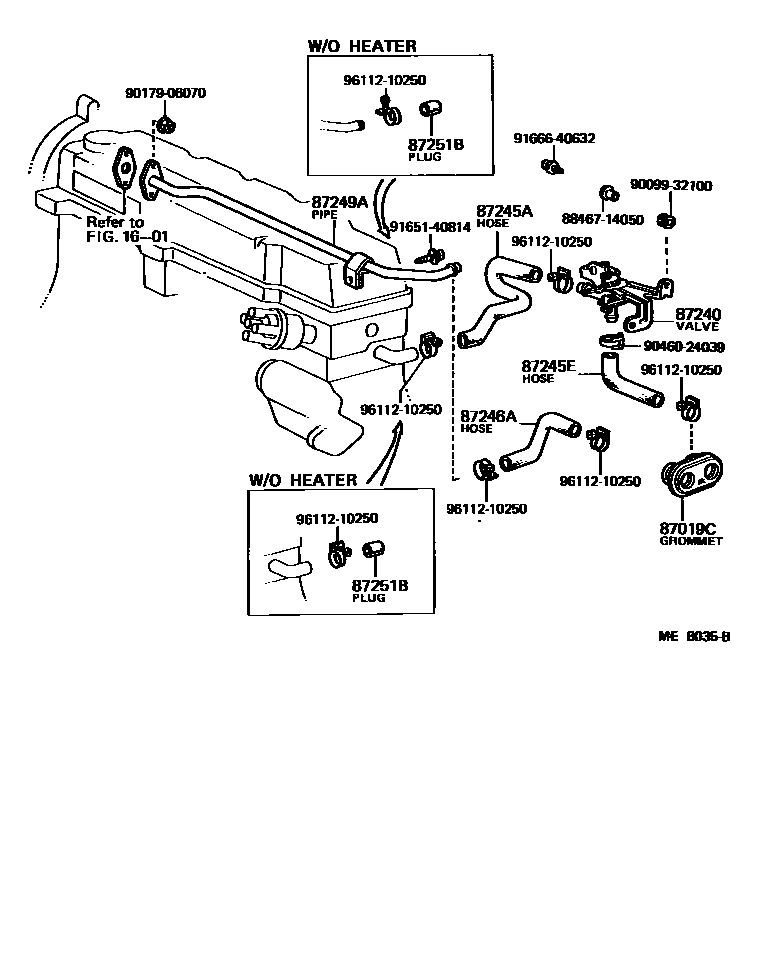

HEATING & AIR CONDITIONING - WATER PIPING

1601WATER PUMP

→ Go to FIG 16-01

87019CGROMMET, HEATER HOSE

main90480-01015iAL1#197908-198207

87240VALVE ASSY, HEATER WATER

main87240-16020iAL1#197908-198207

87245AHOSE, HEATER WATER, INLET A

main87245-16040iAL12..CND198008-198207

main87245-16070iAL12..USA198008-198207

87245EHOSE, HEATER WATER, INLET E

main87245-16050iAL1#197908-198207

87246AHOSE, HEATER WATER, OUTLET A

main87245-16061iAL1#197908-198207

87249APIPE, HEATER WATER OUTLET, A

main87208-16011iAL1#197908-198207

main87208-16030iAL12198008-198207

CALIFORNIA SPEC

87251BPLUG, HEATER WATER

main90339-16007×2iAL1#..USA197908-198207

W/BOOST VENTILATOR

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

9009932100

main90099-32100

9017906070

main90179-06070

9046024039

main90460-24039

9165140814

main91651-40814

9166640632

main91666-40632

9611210250

main96112-10250

15 parts on this diagram · 1 diagram in section
