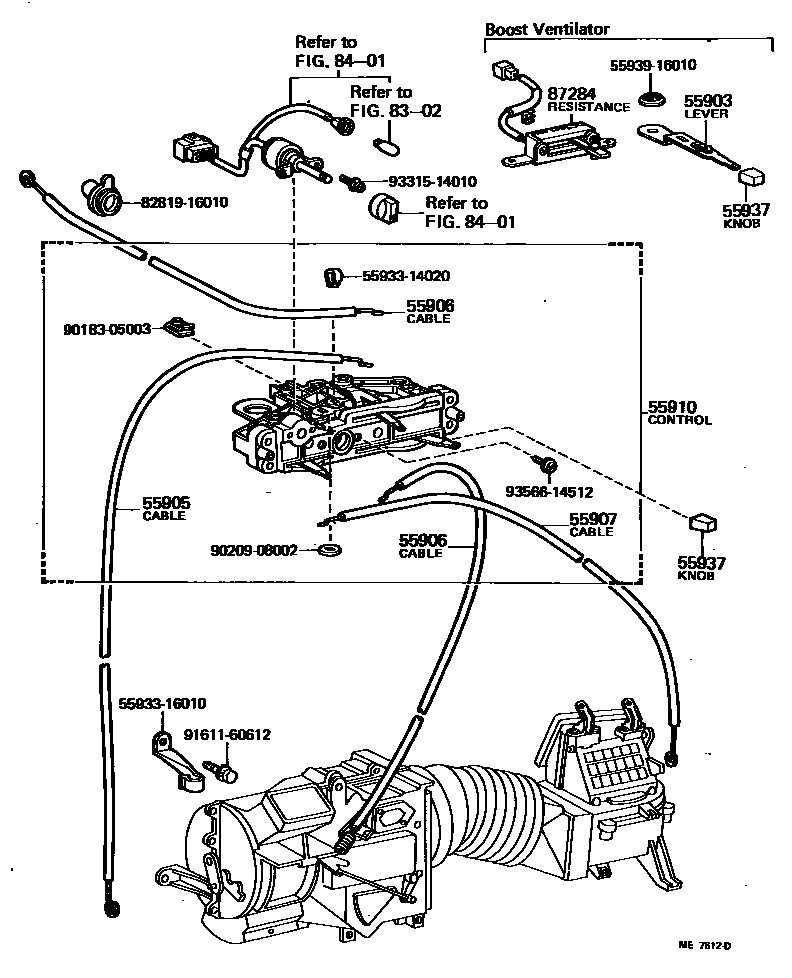

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55903LEVER SUB-ASSY, HEATER CONTROL

main55919-16010iAL1#..USA197908-198207

W/BOOST VENTILATOR

55905CABLE SUB-ASSY, DEFROST CONTROL

main55906-16020iAL1#197908-198207

L=320

55906CABLE SUB-ASSY, HEATER CONTROL

main55907-16020iAL1#197908-198207

L=565,W/HEATER

main55907-16030iAL1#197908-198207

L=1100,W/HEATER

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55908-16020iAL1#197908-198207

L=750

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-16901iAL1#197908-198008

EXCL/CABLE

main55910-16903iAL10..USA197908-198008

EXCL/CABLE,W/BOOST VENTILATOR

main55910-16904iAL12..USA198008-198207

EXCL/CABLE,W/BOOST VENTILATOR

main55910-16905iAL12198008-198207

EXCL/CABLE

55937KNOB, HEATER CONTROL LEVER

main55905-12060×3iAL1#197908-198207

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88610-16020iAL10..USA197908-198008

W/BOOST VENTILATOR

5593314020GUIDE, LEVER, NO.2

main55933-14020

5593316010GUIDE, LEVER, NO.2

main55933-16010

5593916010ORNAMENT, HEATER CONTROL

main55939-16010

8281916010GROMMET, WIRING HARNESS

main82819-16010

9018305003

main90183-05003

9020908002

main90209-08002

9161160612

main91611-60612

9331514010

main93315-14010

9356614512

main93566-14512
