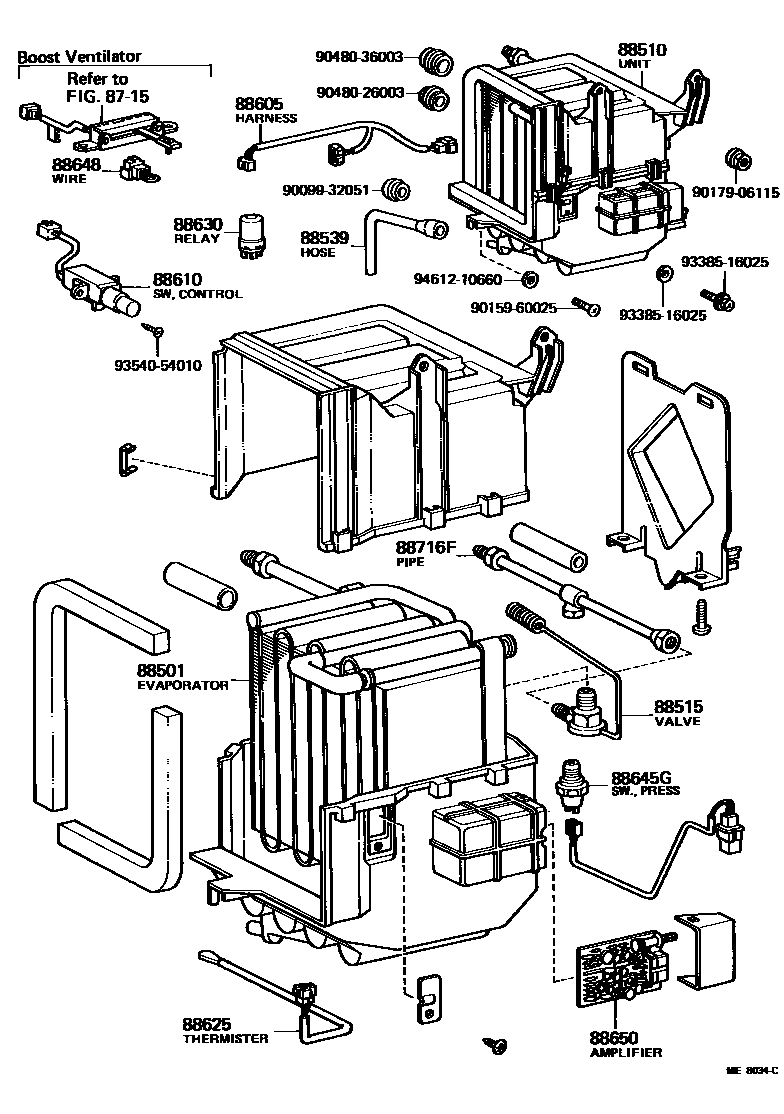

HEATING & AIR CONDITIONING - COOLER UNIT

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-16020iAL1#..USA198006-198108

main88501-16040iAL10..USA197908-198006

88510UNIT ASSY, COOLER

main88510-16040iAL10..USA197908-198008

main88510-16041iAL12..USA198008-198108

88515VALVE, COOLER EXPANSION

main88515-20040iAL1#..USA197908-198108

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-10030iAL1#..USA197908-198108

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-16051iAL1#..USA197908-198108

main88605-16061iAL10..USA197908-198008

W/BOOST VENTILATOR

88610SWITCH ASSY, COOLER CONTROL

main84660-16010iAL12..(3FC,5F)..USA198108-198207

W/HEATER

88625THERMISTOR, COOLER, NO.1

main88625-20040iAL1#..USA197908-198108

88630RELAY ASSY, COOLER

main90987-01001iAL1#..USA197908-198102

main90987-01003iAL12..USA198102-198108

88645GSWITCH, PRESSURE

main88645-22010iAL12..USA198008-198108

88648WIRING, COOLER, NO.1

main88648-16020iAL10..USA197908-198008

W/BOOST VENTILATOR

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-16010iAL10..USA197908-198008

main88650-16020iAL12..USA198008-198108

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-16070iAL1#..USA197908-198108

9009932051

main90099-32051

9015960025

main90159-60025

9017906115

main90179-06115

9048026003

main90480-26003

9048036003

main90480-36003

9338516025

main93385-16025

9354054010

main93540-54010

9461210660

main94612-10660

21 parts on this diagram · 1 diagram in section
