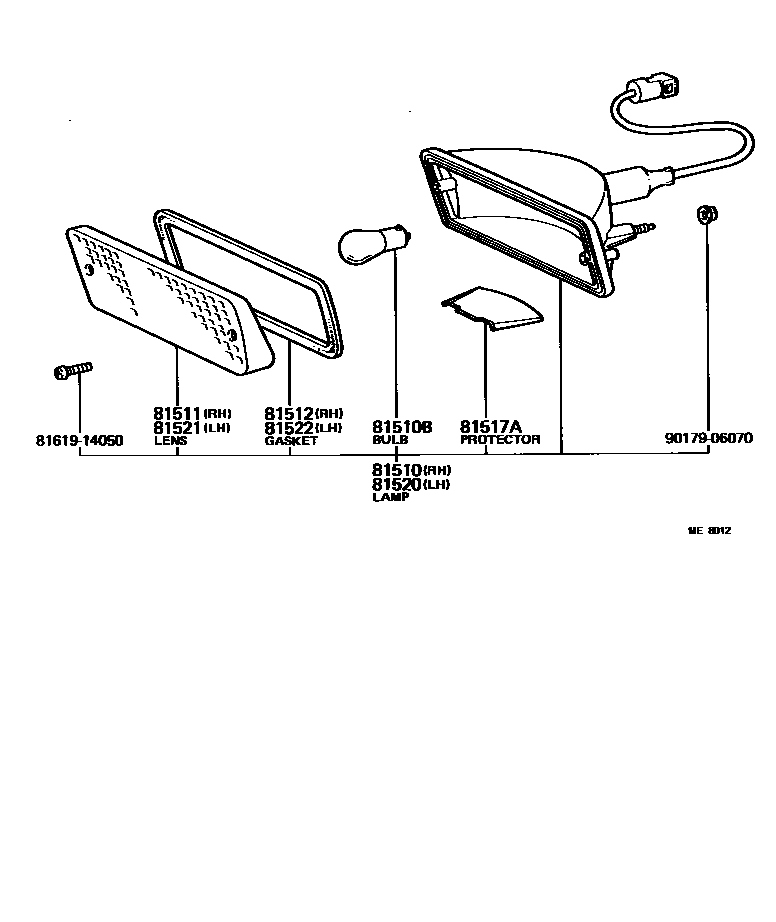

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-19605iAL1#197908-198008

main81510-19646iAL12198008-198207

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11270×2iAL12198008-198207

12V 27W,12V 27W

main99132-21270×2iAL1#197908-198008

12V 27/8W,12V 27/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-10120iAL1#197908-198008

main81511-14170iAL12198008-198207

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-14150iAL1#197908-198207

81517APROTECTOR, FRONT TURN SIGNAL LAMP, RH

main81517-14170×2iAL1#197908-198207

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-19605iAL1#197908-198008

main81520-19646iAL12198008-198207

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-10100iAL1#197908-198008

main81521-14170iAL12198008-198207

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-14150iAL1#197908-198207

8161914050

main81619-14050

9017906070

main90179-06070

10 parts on this diagram · 1 diagram in section
