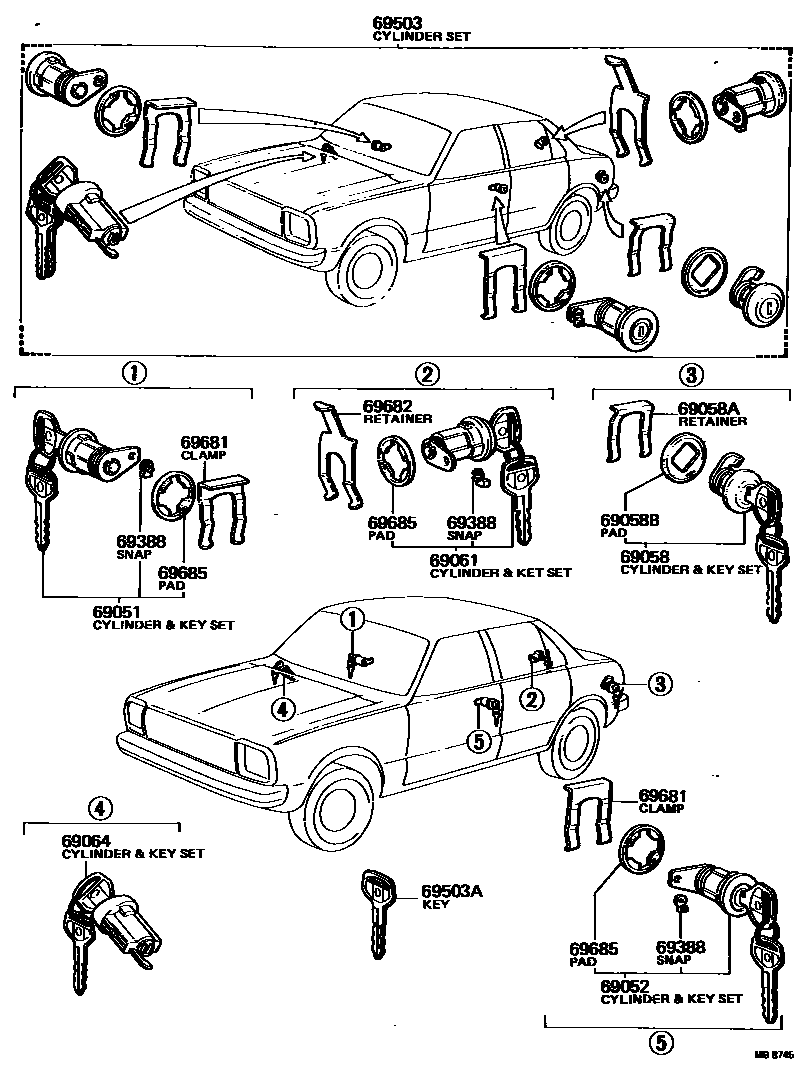

LOCK CYLINDER SET
69058ARETAINER, FUEL FILLER LID CYLINDER
69058BPAD, FUEL FILLER LID CYLINDER
69061CYLINDER & KEY SET, LUGGAGE LOCK
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
sub69057-12011
69388SNAP, ROD(FOR DOOR LOCK)
FR DOOR
LUGGAGE DOOR
69503AKEY, BLANK
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
FR DOOR
FR DOOR & BACK DOOR
69682RETAINER, LOCK CYLINDER
69685PAD, LOCK CYLINDER
FR DOOR
LUGGAGE OR BACK DOOR
13 parts on this diagram · 2 diagrams in section
