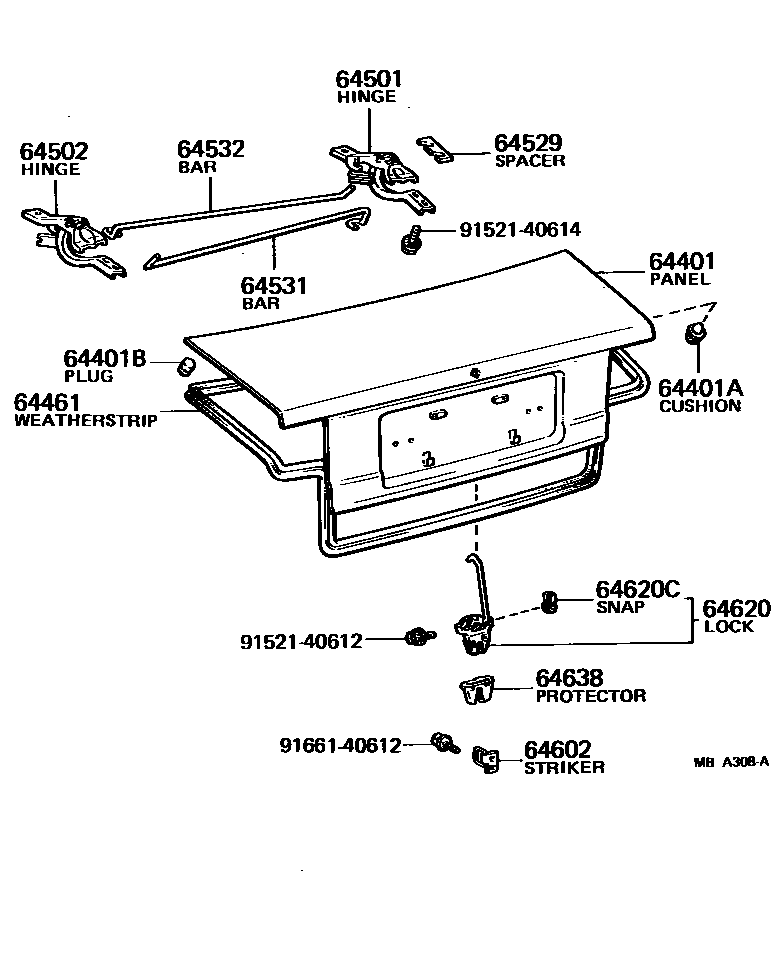

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-16040iAL1#..2DS197908-198008

main64401-16041iAL12..2DS,4DS198008-198207

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09007×2iAL1#..2DS,4DS197908-198207

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01058×2iAL1#..2DS,4DS197908-198207

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-16030iAL1#..2DS,4DS197908-198207

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-16010iAL1#..2DS,4DS197908-198207

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-16010iAL1#..2DS,4DS197908-198207

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-22010iAL1#..2DS,4DS197908-198207

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-16010iAL1#..2DS,4DS197908-198207

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-16010iAL1#..2DS,4DS197908-198207

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-16010iAL12..4DS197908-198207

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-16010iAL1#..2DS,4DS197908-198207

64620CSNAP, LUGGAGE COMPARTMENT DOOR LOCK

main69759-12030iAL1#..2DS,4DS197908-198207

64638PROTECTOR, LUGGAGE COMPARTMENT DOOR LINK

main64631-16010iAL12..2DS,4DS198008-198207

9152140612

main91521-40612

9152140614

main91521-40614

9166140612

main91661-40612

16 parts on this diagram · 1 diagram in section
