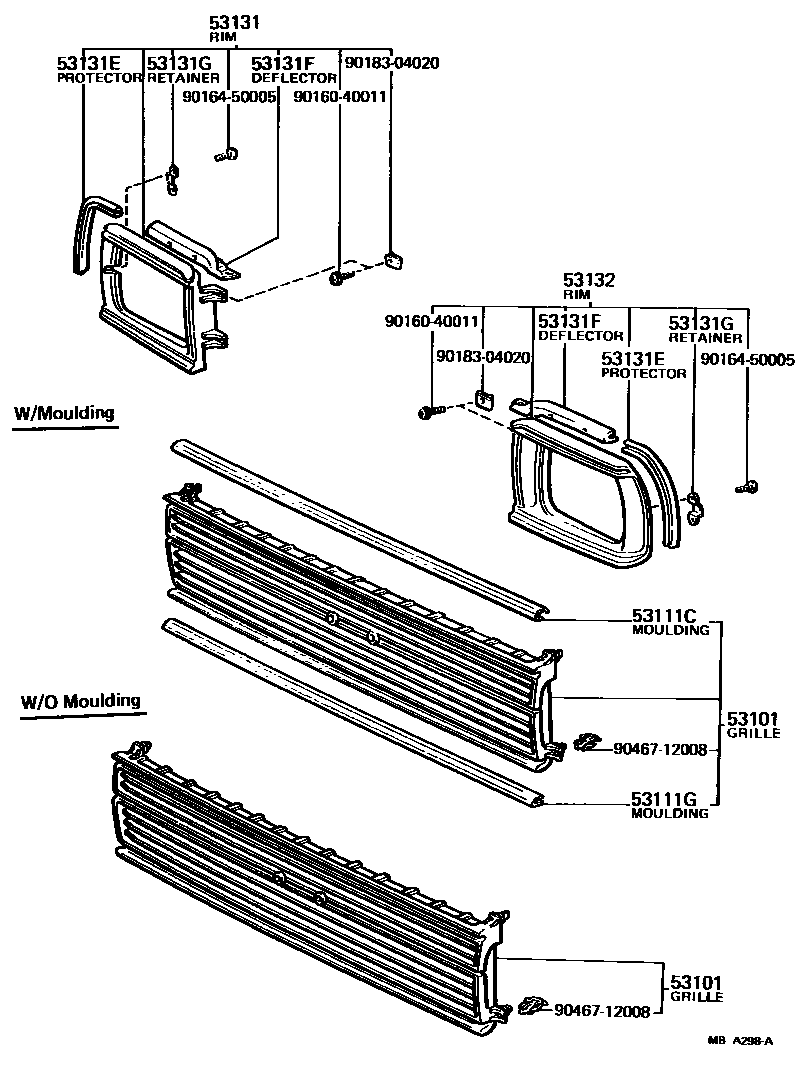

RADIATOR GRILLE

0001 1 0002 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-16050iAL1#197908-198008

W/MOULDING

main53101-19475iAL12..DLX198008-198207

main53111-16070iAL1#..2DS..STD197908-198008

main53111-19375iAL12..SR5,STD198008-198207

53111CMOULDING, RADIATOR GRILLE, UPPER

main53121-16010iAL1#197908-198008

53111GMOULDING, RADIATOR GRILLE, LOWER

main53122-16010iAL1#197908-198008

main53122-16011iAL12..DLX198008-198207

53131RIM, HEADLAMP, RH

main53031-19135iAL1#197908-198008

BLACK PAINTED,W/PLATED

main53031-19136iAL12..SR5,STD198008-198207

main53031-19146iAL12..DLX198008-198207

main53031-19185iAL1#..2DS..STD197908-198008

BLACK PAINTED

53131EPROTECTOR, HEADLAMP DOOR

main53138-16010iAL1#197908-198008

RH

main53139-16010iAL1#197908-198008

LH

main53139-16011×2iAL12198008-198207

53131FDEFLECTOR, HEADLAMP DOOR

main53183-16020iAL1#197908-198008

RH

main53184-16020iAL1#197908-198008

LH

53131GRETAINER, HEADLAMP DOOR

main53137-16010×2iAL1#197908-198008

53132RIM, HEADLAMP, LH

main53032-19125iAL1#197908-198008

BLACK PAINTED,W/PLATED

main53032-19126iAL12..SR5,STD198008-198207

main53032-19136iAL12..DLX198008-198207

main53032-19175iAL1#..2DS..STD197908-198008

BLACK PAINTED

9016040011

main90160-40011

9016450005

main90164-50005

9018304020

main90183-04020

9046712008

main90467-12008

12 parts on this diagram · 2 diagrams in section
