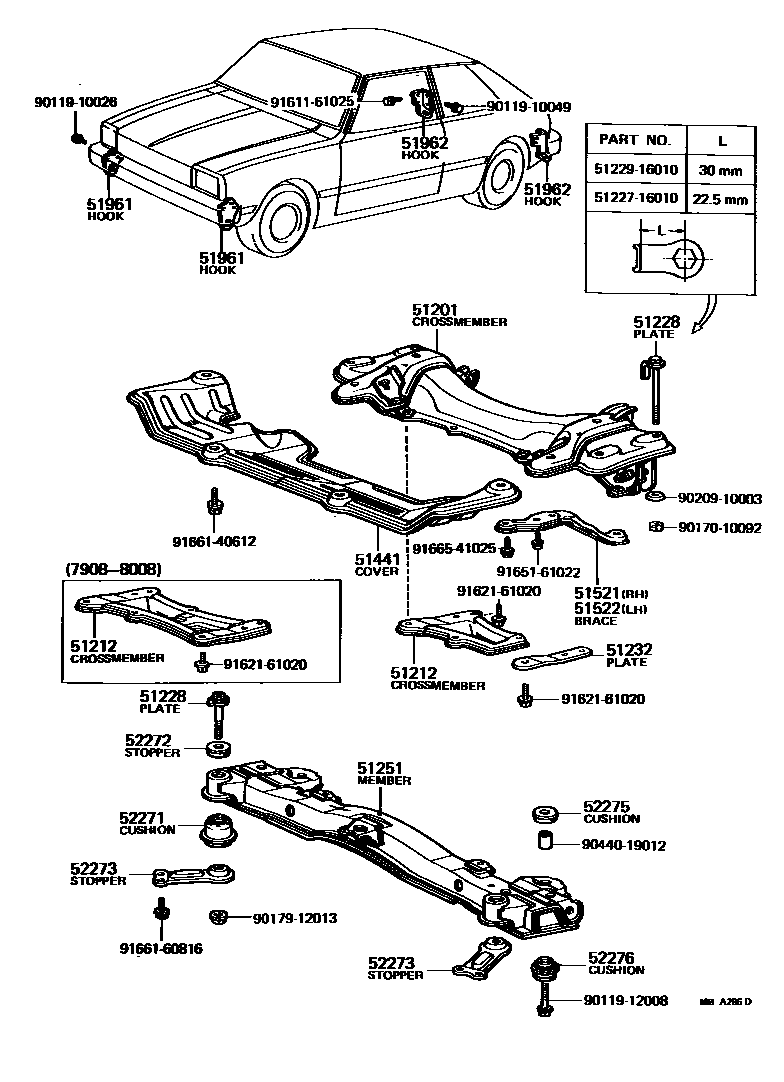

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-16020iAL1#197908-198207

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51202-16020iAL1#197908-198008

main51202-16021iAL12198008-198207

51228PLATE, SUSPENSION MEMBER SET

main51227-16010×2iAL1#197908-198207

FR,L=22.5

main51229-16010×2iAL1#197908-198207

FR,L=30

main51239-16010×2iAL1#197908-198207

RR

51232PLATE, FRONT SUSPENSION MEMBER

main51226-16020iAL12198008-198207

51251MEMBER SUB-ASSY, REAR SUSPENSION

main51206-16020iAL1#..USA197908-198207

main51206-16030iAL1#197908-198207

COLD SPEC

51441COVER, ENGINE UNDER, NO.1

main51440-16020iAL1#197908-198008

main51440-16021iAL12198008-198207

51521BRACE, LOWER ARM BRACKET, RH

main51503-16010iAL1#197908-198008

main51503-16011iAL12198008-198207

51522BRACE, LOWER ARM BRACKET, LH

main51504-16010iAL1#197908-198008

main51504-16011iAL12198008-198207

51961HOOK, NO.1

main51963-16010iAL1#197908-198008

RH

main51964-16010iAL1#197908-198008

LH

main51964-16011×2iAL12198008-198207

51962HOOK, NO.2

main51967-16020iAL1#197908-198207

RH

main51968-16020iAL1#197908-198207

LH

52271CUSHION, REAR SUSPENSION MEMBER

main52271-16010×2iAL1#197908-198207

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-16010×2iAL1#197908-198207

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-16010iAL1#197908-198207

RH

main52274-16010iAL1#197908-198207

LH

52275CUSHION,REAR SUSPENSION MEMBER, REAR UPPER

main52275-16010×2iAL1#197908-198207

52276CUSHION, REAR SUSPENSION MEMBER, REAR LOWER

main52204-16010×2iAL1#197908-198207

5122716010WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-16010

5122916010BOLT, SUSPENSION MEMBER SET

main51229-16010

9011910026

main90119-10026

9011910049

main90119-10049

9011912008

main90119-12008

9017010092

main90170-10092

9017912013

main90179-12013

9020910003

main90209-10003

9044019012

main90440-19012

9161161025

main91611-61025

9162161020

main91621-61020

9165161022

main91651-61022

9166140612

main91661-40612

9166160816

main91661-60816

9166541025

main91665-41025

30 parts on this diagram · 1 diagram in section
