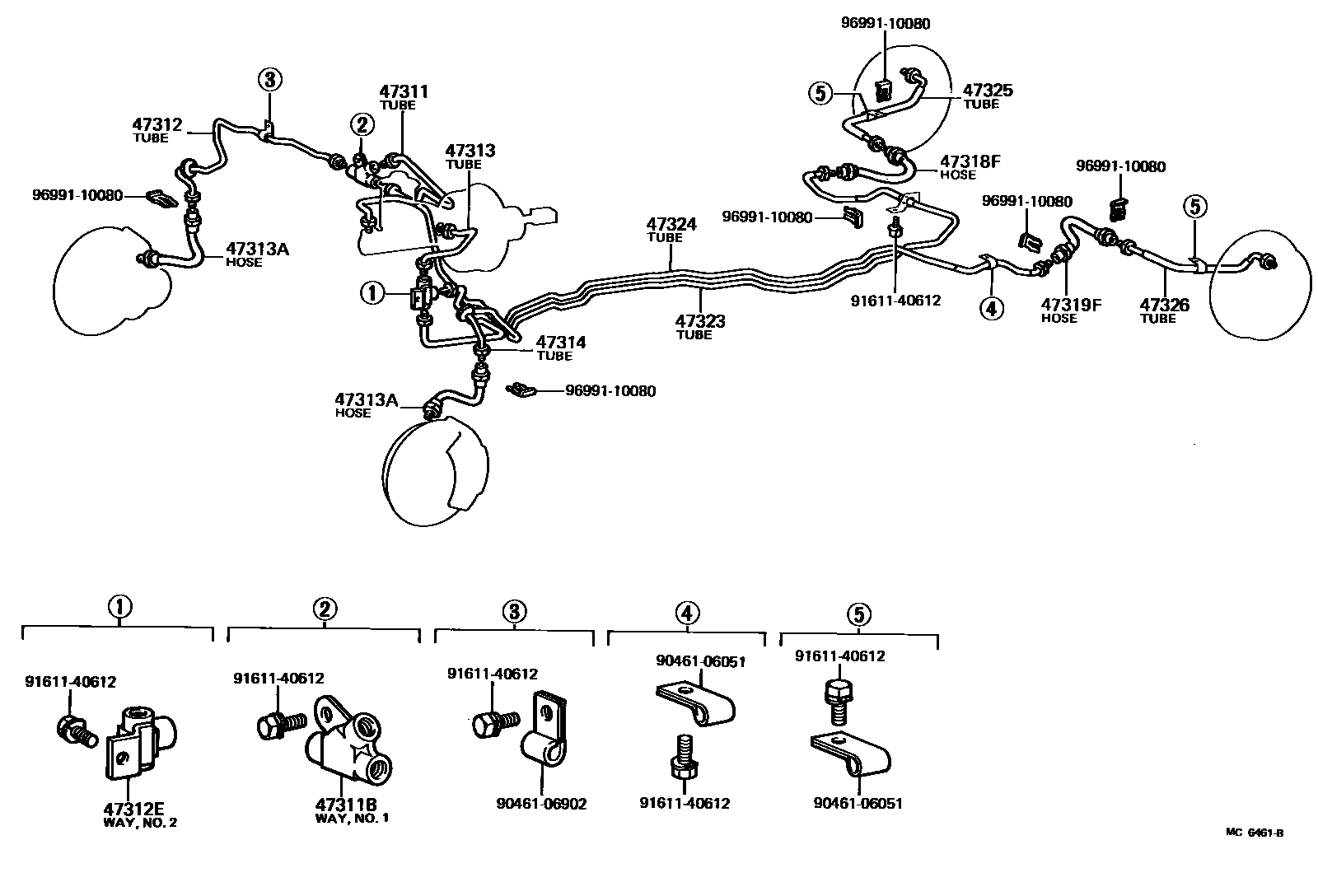

BRAKE TUBE & CLAMP

47311TUBE, FRONT BRAKE, NO.1

main47311-16020iAL1#197908-198207

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10013iAL1#197908-198207

47312TUBE, FRONT BRAKE, NO.2

main47312-16020iAL1#197908-198207

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10004iAL1#197908-198207

47313TUBE, FRONT BRAKE, NO.3

main47321-16020iAL1#197908-198207

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02364×2iAL1#197908-198207

47314TUBE, FRONT BRAKE, NO.4

main47322-16010iAL1#197908-198207

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02365iAL1#197908-198207

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02365iAL1#197908-198207

47323TUBE, REAR BRAKE, NO.3

main47323-16010iAL1#197908-198207

47324TUBE, REAR BRAKE, NO.4

main47313-16030iAL1#197908-198207

47325TUBE, REAR BRAKE, NO.5

main47324-16010iAL1#197908-198207

47326TUBE, REAR BRAKE, NO.6

main47315-16010iAL1#197908-198207

9046106051

main90461-06051

9046106902

main90461-06902

9161140612

main91611-40612

9699110080

main96991-10080

17 parts on this diagram · 1 diagram in section
