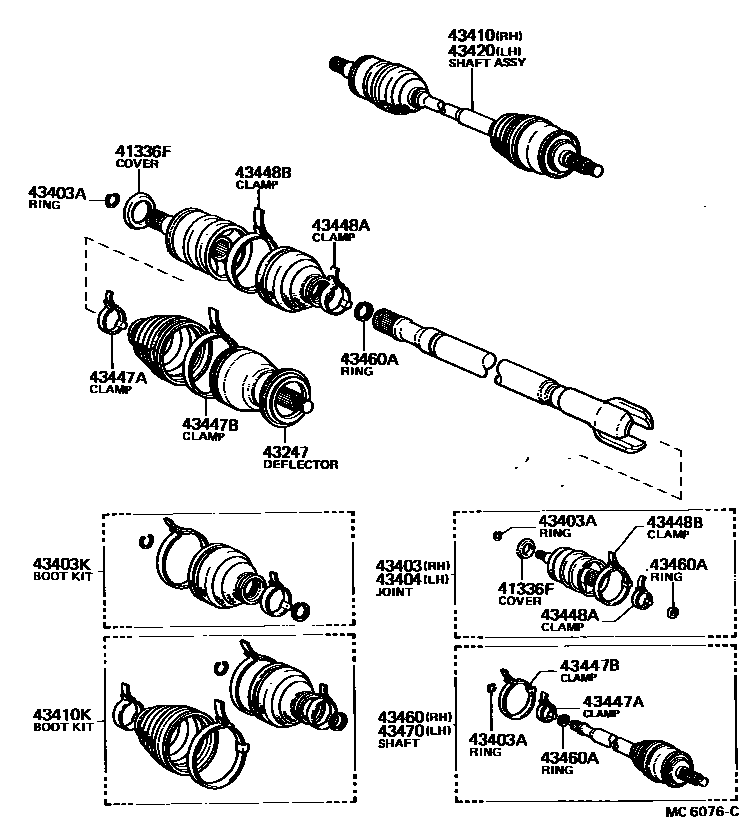

FRONT DRIVE SHAFT

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-16010×2iAL1#197908-198207

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-16010×2iAL1#197908-198207

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-19015iAL1#197908-198207

43403ARING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING)

main90521-23001×2iAL1#197908-198207

43403KBOOT KIT, FRONT AXLE INBOARD JOINT SET

main04438-16011×2iAL1#197908-198207

43404JOINT SET, FRONT AXLE INBOARD, LH

main43403-19015iAL1#197908-198207

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-16011iAL1#197908-198207

43410KBOOT KIT, FRONT DRIVE SHAFT

main04438-16021×2iAL1#197908-198207

sub04438-16022

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16011iAL1#197908-198207

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04020×2iAL1#197908-198207

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90463-04022×2iAL1#197908-198207

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04020×2iAL1#197908-198207

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main90463-04021×2iAL1#197908-198207

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19016iAL1#197908-198207

43460ARING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT)

main90520-22001×2iAL1#197908-198207

sub90520-22029

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-19016iAL1#197908-198207

16 parts on this diagram · 1 diagram in section
