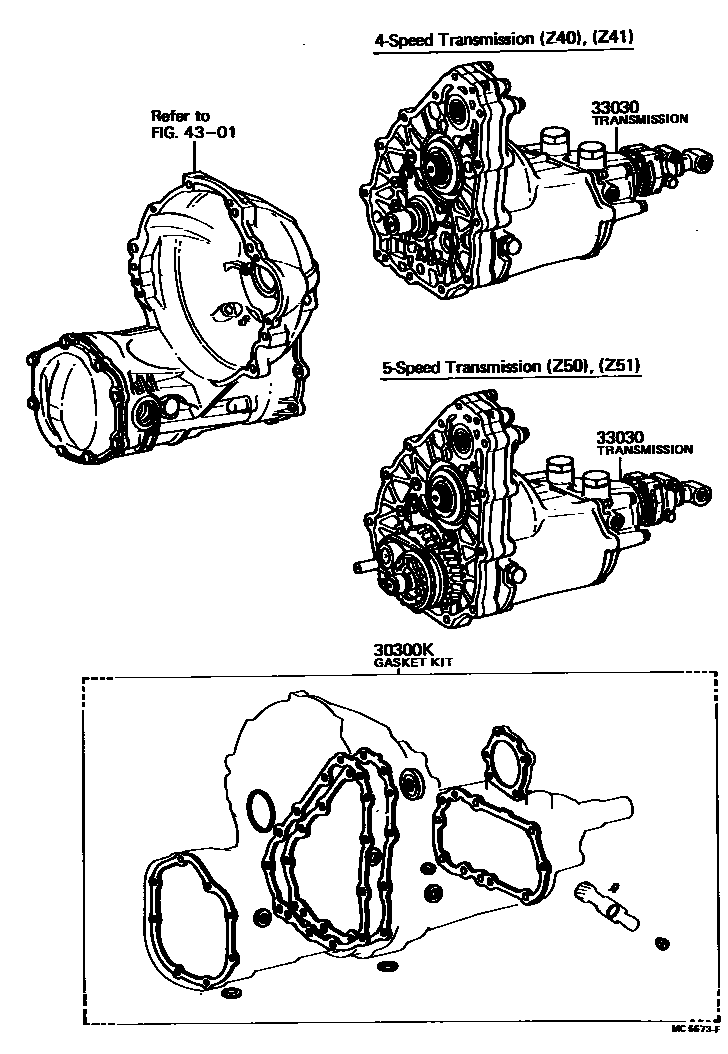

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

30300KGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-16010iAL1#..MTM197908-198207

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-16902iAL1#..4F197908-198004

SMG=6

main33030-16903iAL1#..5F197908-198004

SMG=6

main33030-16904iAL12..3AC;AL12..4F..USA198008-198207

main33030-16905iAL12..4F;AL10..4F..USA198004-198008

SMG=6

main33030-16906iAL1#..5F198004-198207

SMG=6

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

3 parts on this diagram · 1 diagram in section
