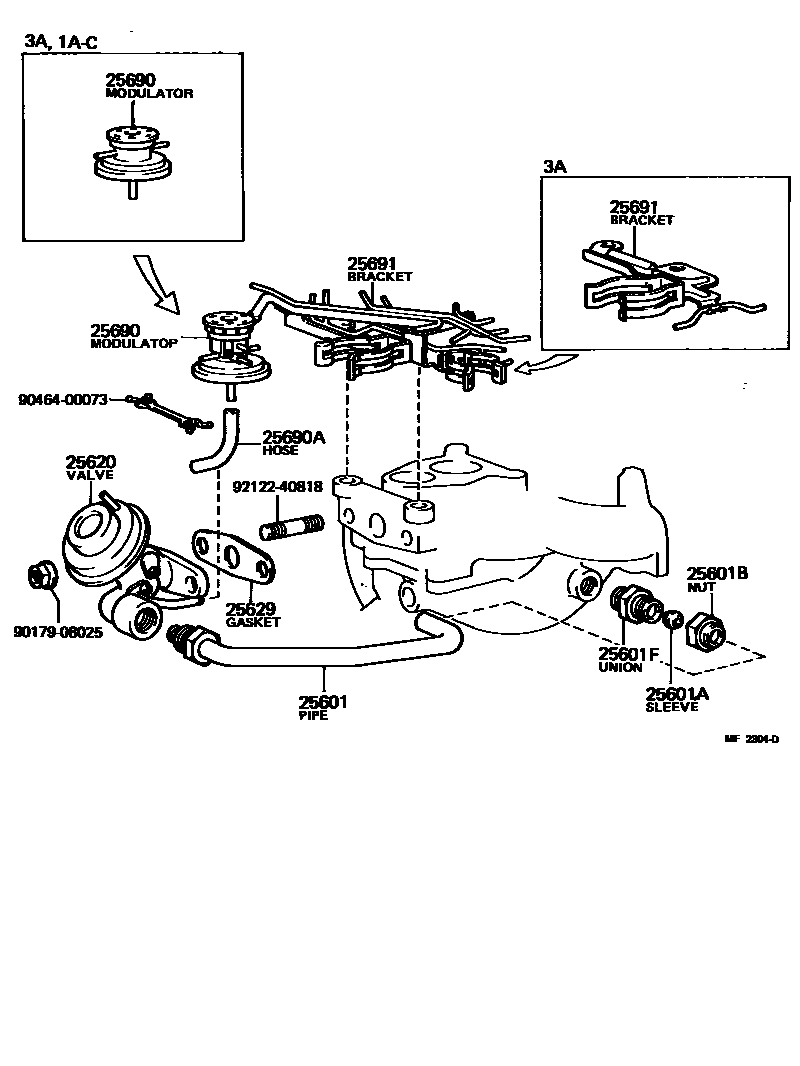

Toyota TERCEL — EXHAUST GAS RECIRCULATION SYSTEM
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601FUNION(FOR EGR PIPE, NO.1)
25620VALVE ASSY, EGR
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
9017908025
9046400073
9212240818
12 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota TERCEL
This section contains 12 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota TERCEL. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, UNION(FOR EGR PIPE, NO.1), VALVE ASSY, EGR.
