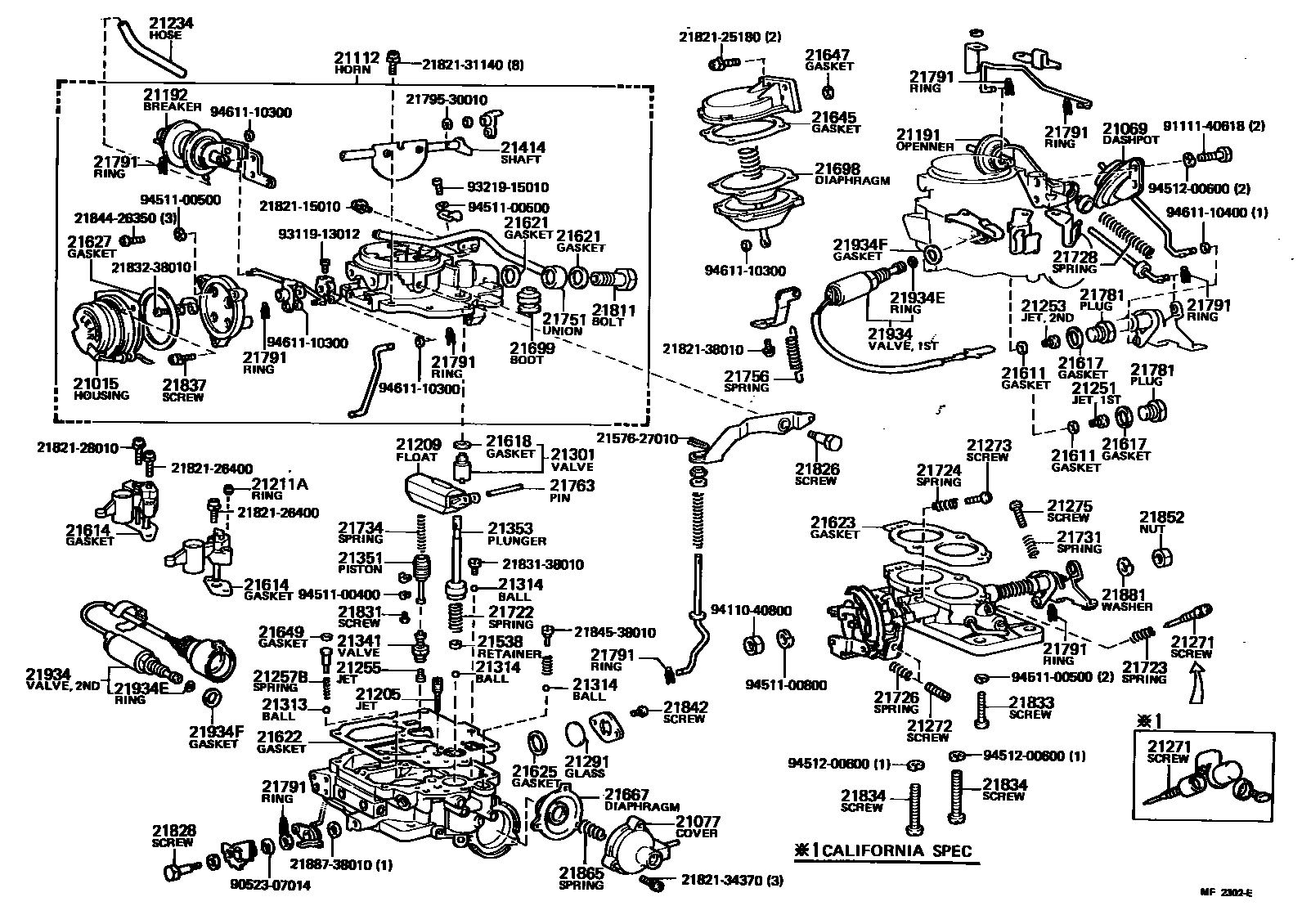

CARBURETOR
21015HOUSING SUB-ASSY, COIL
21069DASH POT SUB-ASSY
21077COVER(FOR AUXILIARY ACCELERATION PUMP)
21112HORN, AIR
sub21112-14090
sub21112-15081
CALIFORNIA SPEC
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
CALIFORNIA SPEC
CALIFORNIA SPEC
21191OPENER
21205JET SUB-ASSY, SLOW
CALIFORNIA SPEC,ID=0.46
ID=0.46
ID=0.44
ID=0.49
ID=0.45
21209FLOAT SUB-ASSY
21211ARING(FOR SMALL VENTURI)
HIGH ALTITUDE SPEC
21234PIPE OR HOSE
21251JET, 1ST MAIN
ID=0.96
ID=1.00
CALIFORNIA SPEC,ID=1.04
ID=1.06
CALIFORNIA SPEC,ID=1.06
ID=1.08
21253JET, 2ND MAIN
ID=1.59
ID=1.65
21255JET, POWER
ID=0.40
CALIFORNIA SPEC,ID=0.44
ID=0.44
ID=0.50
ID=0.53
ID=0.65
21257BSPRING(FOR PUMP JET)
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
CALIFORNIA SPEC
HIGH ALTITUDE SPEC
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
21341VALVE, POWER
21351PISTON, POWER
21353PLUNGER, PUMP
sub21353-16510
21414SHAFT, CHOKE
21538RETAINER, BALL CHECK
21611GASKET, MAIN JET
21614GASKET, VENTURI
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21623GASKET, BODY FLANGE
sub21623-16280
21625GASKET, LEVEL GAGE
21645GASKET, DIAPHRAGM, CAP
sub21645-41010
21647GASKET, DIAPHRAGM HOUSING CAP
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21698DIAPHRAGM
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
CALIFORNIA SPEC
HIGH ALTITUDE SPEC
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21734SPRING, POWER PISTON
CALIFORNIA SPEC
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21831SCREW, POWER PISTON STOP
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
W/HOLE
21837SCREW, COIL HOUSING SET
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
21865SPRING
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
1ST,CALIFORNIA SPEC
2ND
2ND,CALIFORNIA SPEC
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2157627010CLIP, PUMP STRAINER
main21576-27010
2179530010RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT)
main21795-30010
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134370SCREW, 2ND THROTTLE VALVE SET
main21821-34370
2182138010SCREW, 2ND THROTTLE VALVE SET
main21821-38010
2183138010SCREW, POWER PISTON STOP
main21831-38010
2183238010SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-38010
2184426350SCREW, CHOKE LEVER
main21844-26350
2184538010SCREW(FOR LEVER SET)
main21845-38010
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9052307014
main90523-07014
9111140618
main91111-40618
9311913012
main93119-13012
9321915010
main93219-15010
9411040800
main94110-40800
9451100400
main94511-00400
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
93 parts on this diagram · 4 diagrams in section
