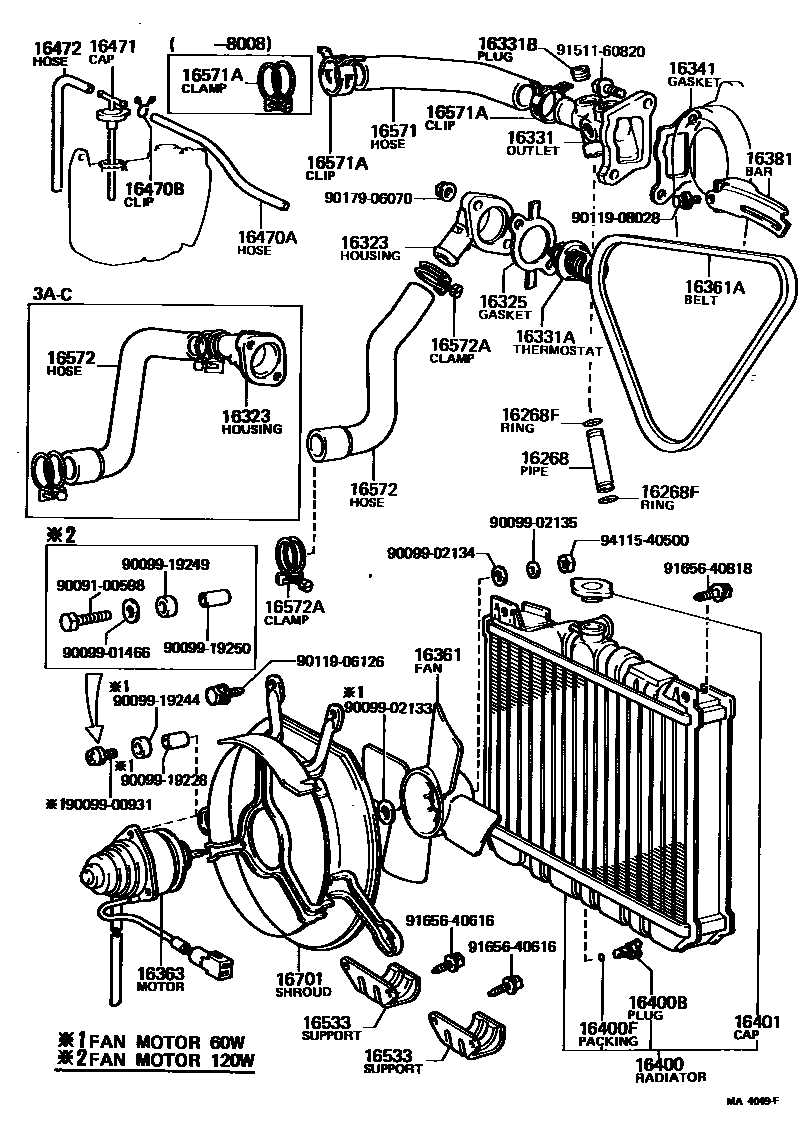

RADIATOR & WATER OUTLET
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
CALIFORNIA SPEC
16331ATHERMOSTAT
*WAX 82-95,*WAX 82-95,FUJI-THOMSON
16331BPLUG(FOR WATER OUTLET)
HIGH ALTITUDE SPEC
16341GASKET, WATER OUTLET
16361FAN
4 BLADES
4 BLADES
16361ABELT, V(FOR FAN & ALTERNATOR)
L=985
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=260)
L=600(*H,L=270)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
WATER INLET SIDE
RADIATOR SIDE
16701SHROUD SUB-ASSY, FAN
9009100598
main90091-00598
9009900931
main90099-00931
9009901466
main90099-01466
9009902133
main90099-02133
9009902134
main90099-02134
9009902135
main90099-02135
9009919228
main90099-19228
9009919244
main90099-19244
9009919249
main90099-19249
9009919250
main90099-19250
9011906126
main90119-06126
9011908028
main90119-08028
9017906070
main90179-06070
9151160820
main91511-60820
9165640616
main91656-40616
9165640818
main91656-40818
9411540500
main94115-40500
43 parts on this diagram · 2 diagrams in section
