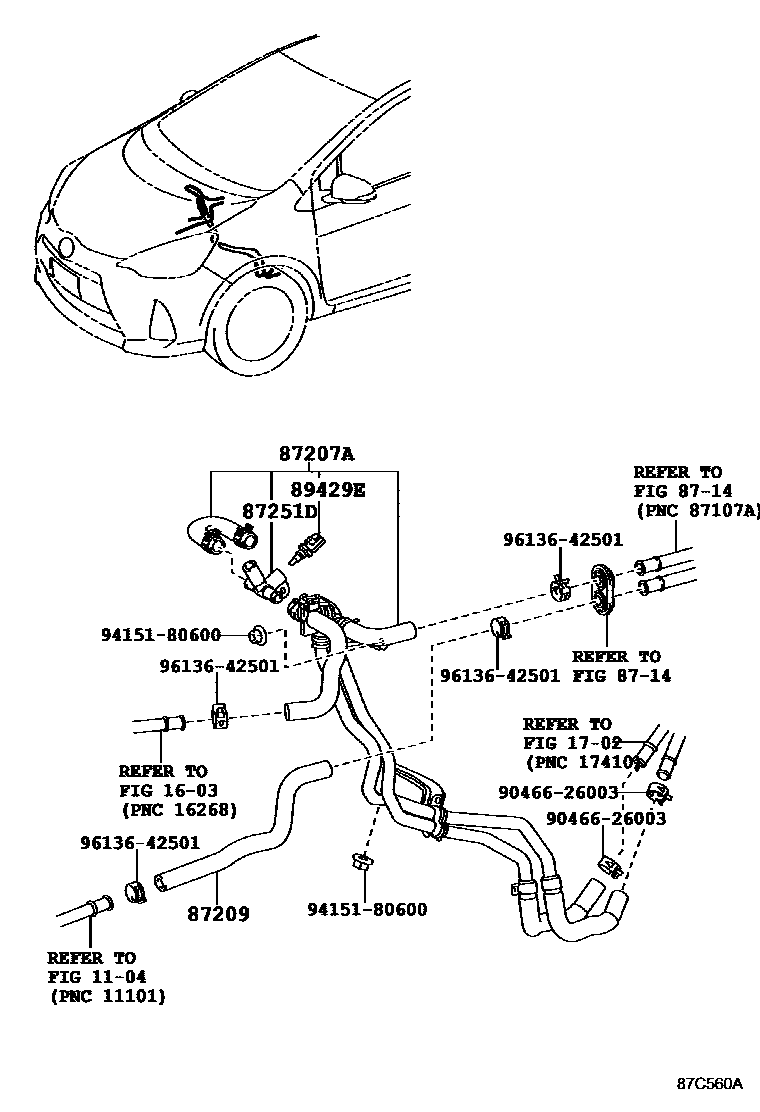

HEATING & AIR CONDITIONING - WATER PIPING

0001 1W(*EHRS) 0002 1W/O(*EHRS)

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1702EXHAUST PIPE

→ Go to FIG 17-02

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-52020iNHP10201112-201412

87209HOSE SUB-ASSY, WATER

main87209-52300iNHP10201112-201412

87251DJOINT, WATER, NO.1

main87251-47020iNHP10201112-201412

89429ESENSOR, WATER TEMPERATURE

main89429-47010iNHP10201112-201412

9046626003

main90466-26003

9415180600

main94151-80600

9613642501

main96136-42501

11 parts on this diagram · 2 diagrams in section
