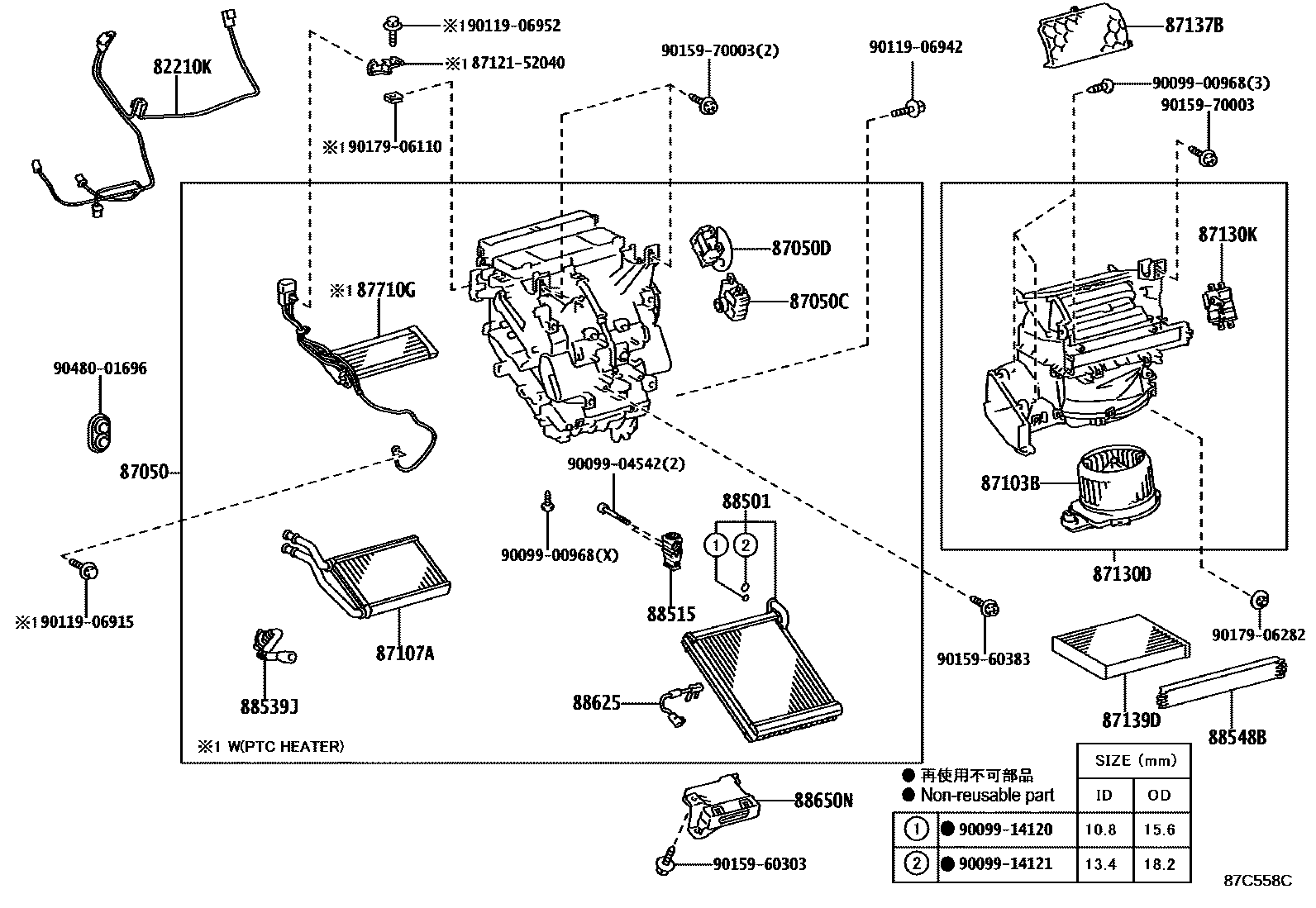

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-52080iNHP10201112-201412

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52321supersedes 87050-52311iNHP10..G202008

main87050-52320supersedes 87050-52310iNHP10201112-201309

COLD AREA SPEC

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-52130iNHP10201112-201412

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-52140iNHP10201112-201412

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52210iNHP10201112-201412

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52070iNHP10201112-201412

87130DBLOWER ASSY

main87130-52200iNHP10201112-201412

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-52150iNHP10201112-201412

87137BCOVER, HEATER BLOWER

main87137-52010iNHP10201112-201412

87139DELEMENT, AIR REFINER

main87139-50060iNHP10201112-201204

DEODORANT FILTER

main87139-50100iNHP10201205-201412

*DPF

main87139-52040iNHP10201112-201412

POLLEN FILTER

87710GQUICK HEATER ASSY

main87710-52090iNHP10..G202008

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52120iNHP10201112-201412

88515VALVE, COOLER EXPANSION

main88515-48110iNHP10201912

main88515-68010iNHP10201412-201706

88539JHOSE, DRAIN COOLER

main88539-52040iNHP10201112-201412

88548BCASE, AIR FILTER

main88548-52040iNHP10201112-201412

88625THERMISTOR, COOLER, NO.1

main88620-52010iNHP10201112-201412

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52800iNHP10201112-201405

main88650-52801iNHP10201406-201412

main88650-52B70iNHP10201412-201706

main88650-52D70supersedes 88650-52D80iNHP10..V202008

main88650-52D80iNHP10..G,R201706

8712152040BRACKET, HEATER, FRONT RH

main87121-52040

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906915

main90119-06915

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906110

main90179-06110

9017906282

main90179-06282

9048001696

main90480-01696

31 parts on this diagram · 1 diagram in section
