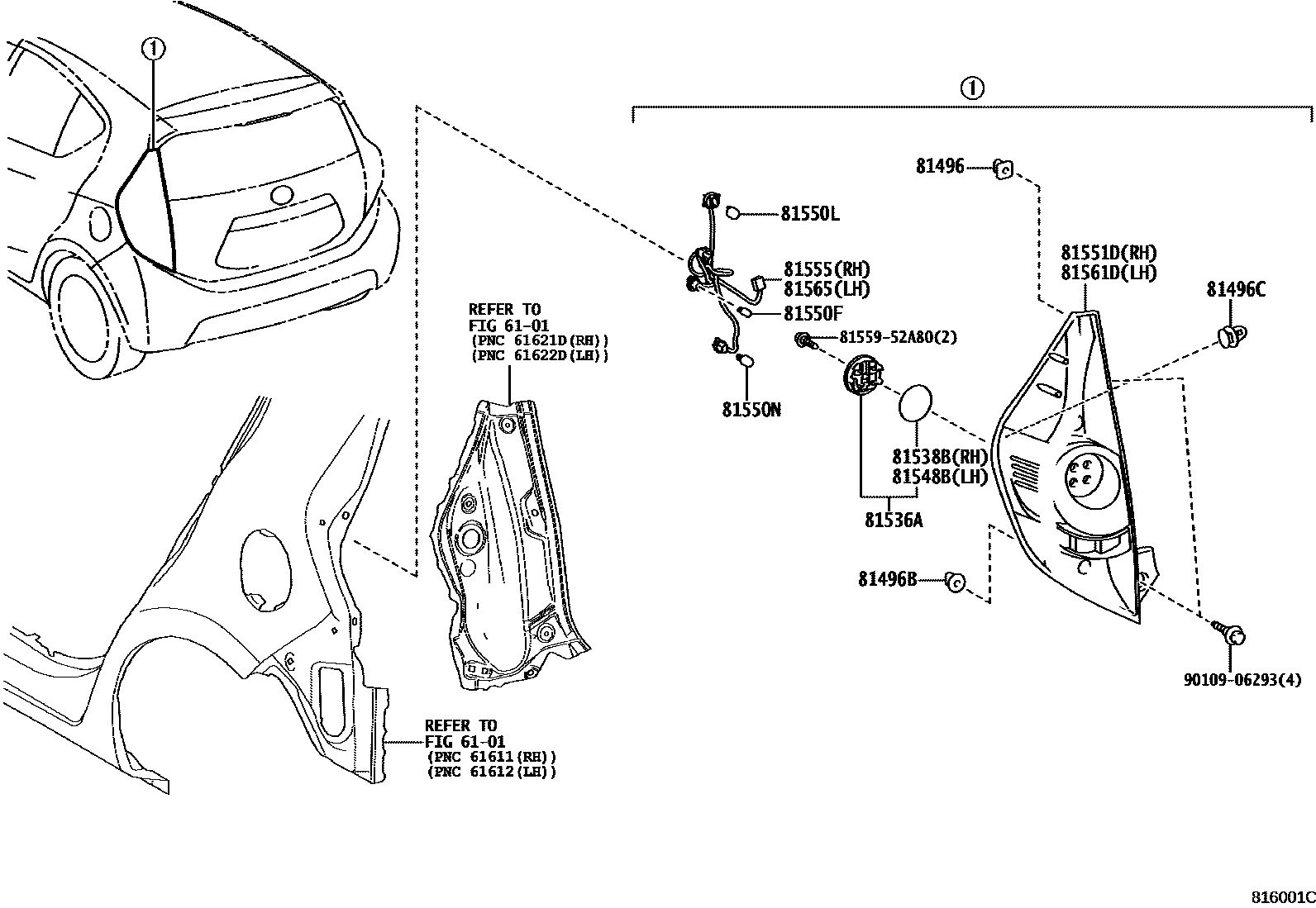

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main76817-26040×2iNHP10201112-201412

81496BGUIDE, REAR LAMP

main81496-52030×2iNHP10201112-201412

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iNHP10201112-201412

81536ALED, REAR COMBINATION LAMP

main81536-52A80×2iNHP10201112-201412

main81536-52D50×4iNHP10201706

81538BGASKET, REAR COMBINATION LAMP, NO.3 RH

main81538-52A80iNHP10201112-201412

81548BGASKET, REAR COMBINATION LAMP, NO.3 LH

main81538-52A80iNHP10201112-201412

81550FBULB, TAILLAMP

main99132-12050×2iNHP10201112-201412

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iNHP10201112-201412

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iNHP10201112-201412

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-52A90iNHP10201112-201302

main81551-52A91iNHP10201302-201304

main81551-52A92iNHP10201304-201306

main81551-52A93iNHP10201306-201404

main81551-52A94iNHP10201404-201412

main81551-52D10iNHP10201412-201607

main81551-52D11iNHP10201607-201706

main81551-52D60iNHP10201706-201807

main81551-52D61iNHP10..R,V201807

main81551-52E70supersedes 81551-52D61iNHP10..G202008

main81551-52D50iNHP10..G201706-201808

KOREA SPEC

main81551-52E90iNHP10..G201808-201907

KOREA SPEC

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52A80iNHP10201112-201304

main81555-52A81iNHP10201304-201412

main81555-52D00iNHP10201412-201607

main81555-52D01iNHP10201607-201706

main81555-52D50iNHP10201706

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-52890iNHP10201112-201302

main81561-52891iNHP10201302-201304

main81561-52892iNHP10201304-201306

main81561-52893iNHP10201306-201404

main81561-52894iNHP10201404-201412

main81561-52D10iNHP10201412-201607

main81561-52D11iNHP10201607-201706

main81561-52D60iNHP10201706-201807

main81561-52D61iNHP10..R,V201807

main81561-52E70supersedes 81561-52D61iNHP10..G202008

main81561-52D50iNHP10..G201706-201808

KOREA SPEC

main81561-52E90iNHP10..G201808-201907

KOREA SPEC

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52A80iNHP10201112-201304

main81555-52A81iNHP10201304-201412

main81555-52D00iNHP10201412-201607

main81555-52D01iNHP10201607-201706

main81555-52D50iNHP10201706

8155952A80MOULDING, REAR COMBINATION LAMP, RH

main81559-52A80

9010906293

main90109-06293

16 parts on this diagram · 3 diagrams in section
