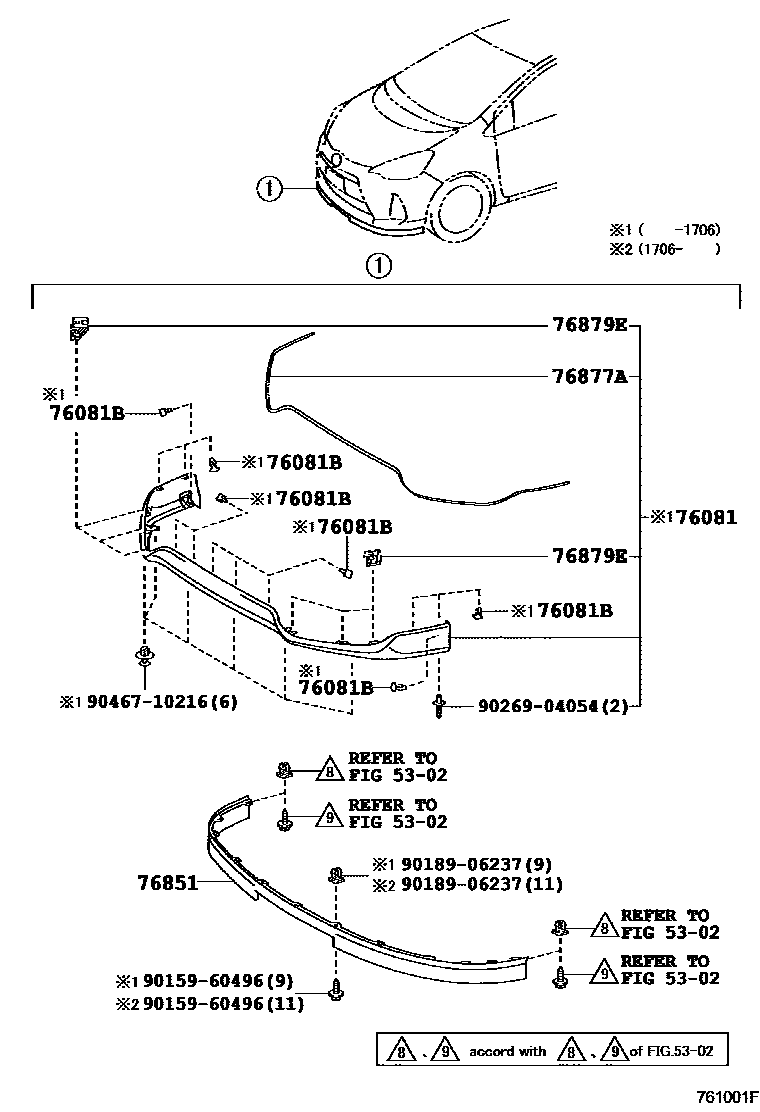

MUDGUARD & SPOILER

0001 1FRONT 0002 1SIDE 0005 1SIDE 0006 1REAR

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76081SPOILER SUB-ASSY, FRONT

main76081-52100-C0iNHP10201612-201706

BLACK,040 ,082 ,1F7 ,1G3 ,209 ,3P0 ,4X3 ,588 ,5A3 ,8T7 ,8V7

76081BRETAINER, FRONT SPOILER

main52535-28020×11iNHP10201612-201706

76851COVER, FRONT SPOILER

main76851-52210iNHP10201112-201412

main76851-52240iNHP10201412-201706

main76851-52290iNHP10201706

76877APROTECTOR, FRONT SPOILER

main76877-52140iNHP10201612-201706

76879ECLIP, FRONT SPOILER

main76879-44010×6iNHP10201612-201706

9015960496

main90159-60496

9018906237

main90189-06237

9026904054

main90269-04054

9046710216

main90467-10216

10 parts on this diagram · 4 diagrams in section
