ARMREST & VISOR

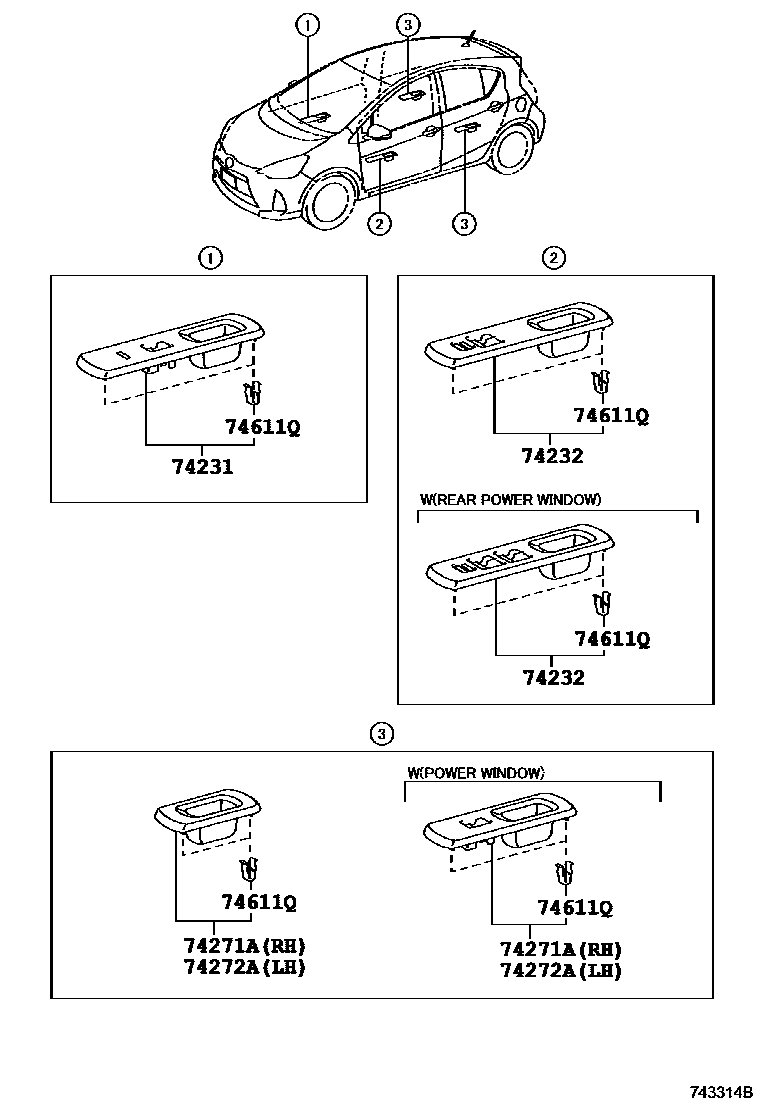

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52830-C4i201112-201312

BLACK/HV BLUE,TRIM2#

main74231-52830-C5i201312-201412

BLACK,TRIM2#

main74231-52880-C0i201112-201412

NORTH AMERICA 1 OPT,BLACK/BLACK,TRIM2#

main74231-52880-C0i201112-201706

BLACK/BLACK,TRIM2#

main74231-52880-C0i201412-201706

NORTH AMERICA 1 OPT&SEAT COVER MATERIAL-FABRIC(BASE GRADE),BLACK/BLACK,TRIM2#

main74231-52880-C0i201706

BLACK,TRIM2#

main74231-52B00-C0i201706-202008

BLACK/SILVER,TRIM1#,2#,8#

main74231-52B00-C0i201412-201706

BLACK/SILVER,TRIM2#

main74231-52B00-C0i201607-201612

BLACK/SILVER,TRIM20,21,25

main74231-52B00-C1i201607-201612

BLACK/ORANGE ME.,TRIM26

main74231-52B20-C0i202008

BLACK/SILVER,TRIM1#,2#,8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52690-C1i201112-201706

BLACK/BLACK,TRIM2#

main74232-52730-C3i201112-201312

BLACK/HV BLUE,TRIM2#

main74232-52730-C4i201312-201412

BLACK,TRIM2#

main74232-52830-C0i201607-201612

BLACK/SILVER,TRIM20,21,25

main74232-52830-C0i201412-201706

BLACK/SILVER,TRIM2#

main74232-52830-C0i201706-202008

BLACK/SILVER,TRIM1#,2#,8#

main74232-52830-C1i201607-201612

BLACK/ORANGE ME.,TRIM26

main74232-52850-C0i202008

BLACK/SILVER,TRIM1#,2#,8#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52310-C0i201112-201706

BLACK,TRIM2#

main74271-52310-C0i201706

BLACK,TRIM1#,2#,8#

main74271-52320-C0i201112-201706

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-52300-C0i201112-201706

BLACK,TRIM2#

main74272-52300-C0i201706

BLACK,TRIM1#,2#,8#

main74272-52310-C0i201112-201706

BLACK,TRIM2#

74611QCLIP

main90467-08227i201404-201706

main90467-10203i201112-201401

main90467-12080i201402-201403

5 parts on this diagram · 2 diagrams in section
