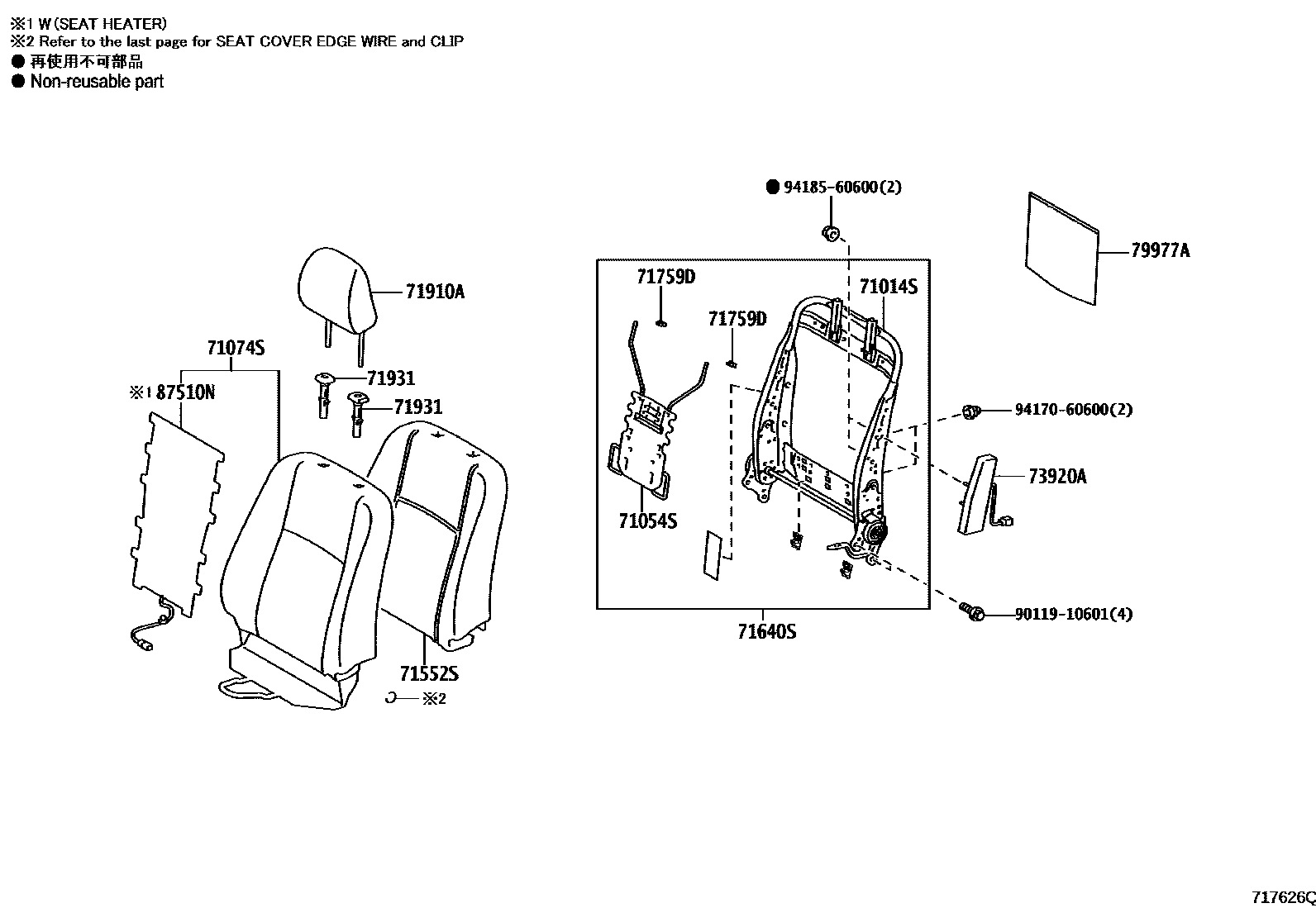

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-52240i201412-201501

main71014-52241i201502-201706

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-52050i201308-201412

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-52L50-B2i201112-201412

LT.BLUE GRAY,TRIM2#; NORTH AMERICA 1 OPT,LT.BLUE GRAY,TRIM2#

main71074-52W50-B0i201412-201706

LT.BLUE GRAY,TRIM2#; NORTH AMERICA 1 OPT&FRONT SEAT-*DRS-4WAY;*PAS-4WAY & OCCUPANT DETECTION&SEAT COVERMATERIAL-FABRIC(BASE GRADE),LT.BLUE GRAY,TRIM2#

main71074-52W50-B3i201706-202008

DK.GRAY,TRIM2#

main71074-52W50-C0i202008-202106

BLACK,TRIM2#

main71074-5C530-B0i201706-201907

DK.GRAY,TRIM2#,8#

main71074-5CC20-B1i201907-202008

DK.GRAY,TRIM2#

main71074-5CC20-C0i202008-202106

BLACK,TRIM2#

main71074-52M20-B0i201112-201311

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71074-52M20-C1i201112-201311

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28

main71074-52M21-B0i201312-201411

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71074-52M21-B1i201411-201412

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71074-52M21-C1i201312-201411

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28

main71074-52M21-C2i201411-201412

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28

main71074-52Q30-C0i201607-201612

SEAT COVER MATERIAL-SYNTHETIC LEATHER+FABRIC(X-URBAN),BLACK/ORANGE,TRIM26

main71074-52Q30-C1i201607-201612

SEAT COVER MATERIAL-SYNTHETIC LEATHER+FABRIC(X-URBAN),BLACK/SILVER,TRIM25

main71074-52U60-B0i201412-201706

CANADA SPEC,DARK GRAY/BLACK,TRIM2#

main71074-52W60-B0i201412-201706

CANADA SPEC&SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE - LIGHT BLUE GRAY),LT.BLUE GRAY,TRIM2#

main71074-52Y10-B0supersedes 71074-52W00-B0i201412-201706

SEAT COVER MATERIAL-FABRIC(MIDDLE GRADE - LIGHT BLUE GRAY),LT.BLUE GRAY,TRIM2#

main71074-52Z10-B0i201412-201706

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71074-52Z10-C0i201412-201706

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20

main71074-5C550-B0i201706-201907

CANADA SPEC,DK.GRAY,TRIM2#,8#

main71074-5C660-B0i201706-202008

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#,22; SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#,22

main71074-5C660-C0i201706-202008

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20,22; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20,22

main71074-5C750-B0i201706-202008

SEAT COVER MATERIAL-FABRIC C(LUCIS),DK.GRAY,TRIM1#,2#

main71074-5C750-C0i202008-202106

SEAT COVER MATERIAL-FABRIC C(LUCIS),BLACK,TRIM1#

main71074-5C760-B0i201706-202008

CANADA SPEC&SEAT COVER MATERIAL-FABRIC C(LUCIS),DK.GRAY,TRIM1#,2#

main71074-5CC30-B1i201907-202008

CANADA SPEC,DK.GRAY,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-52850i201112-201412

main71552-52A00i201112-201412

NORTH AMERICA 1 OPT

main71552-52B70i201412-201706

NORTH AMERICA 1 OPT&FRONT SEAT-*DRS-4WAY;*PAS-4WAY & OCCUPANT DETECTION&SEAT COVERMATERIAL-FABRIC(BASE GRADE)

main71552-52B80i201412-201706

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-52330i201112-201412

main71640-52331i201502-201706

main71640-52340i201412-201501

NORTH AMERICA 1 OPT&FRONT SEAT-*DRS-4WAY;*PAS-4WAY & OCCUPANT DETECTION&SEAT COVERMATERIAL-FABRIC(BASE GRADE)

main71640-52341i201706-202106

71759DHOOK, FRONT SEATBACK, NO.2

main71759-47010×4i201412-201706

71910AHEADREST ASSY, FRONT SEAT

main71910-52F80×2i201706-201907

main71910-52F80-B1×2i201112-201410

DK.GRAY,TRIM2#

main71910-52F80-B2×2i201410-201412

DK.GRAY,TRIM2#

main71910-52F80-C1×2i202008-202106

BLACK,TRIM1#,2#

main71910-52F70-B0×2i201112-201311

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71910-52F70-C0×2i201112-201311

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28

main71910-52F71-B0×2i201312-201410

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71910-52F71-B2×2i201412-201706

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21; SEAT COVER MATERIAL-SYNTHETIC LEATHER,LT.BLUE GRAY,TRIM21

main71910-52F71-C0×2i201312-201410

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28

main71910-52F71-C2×2i201607-201612

SEAT COVER MATERIAL-SYNTHETIC LEATHER+FABRIC(X-URBAN),BLACK,TRIM25

main71910-52F71-C3×2i201607-201612

SEAT COVER MATERIAL-SYNTHETIC LEATHER+FABRIC(X-URBAN),BLACK/ORANGE,TRIM26

main71910-52N20-B0×2i201706-202008

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#,22; SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#,22

main71910-52N20-C0×2i201706-202008

CANADA SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20,22; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM20,22

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0×2i201706-201710

W(LOCK),BLACK,TRIM1#,2#,8#

main71930-47020-C4×2i201710-202106

W(LOCK),BLACK,TRIM1#,2#,8#

main71931-47020-C0×2i201706-201710

W/O(LOCK),BLACK,TRIM1#,2#,8#

main71931-47020-C4×2i201710-202106

W/O(LOCK),BLACK,TRIM1#,2#,8#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-52230i201112-201412

79977AFELT, SEATBACK

main79977-52120×2i201112-201412

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-52080i201112-201412

NORTH AMERICA 4&SEAT COVER MATERIAL-SYNTHETIC LEATHER; NORTH AMERICA 4-2&SEAT COVER MATERIAL-SYNTHETIC LEATHER

9011910601

main90119-10601

9417060600

main94170-60600

9418560600

main94185-60600

14 parts on this diagram · 9 diagrams in section
