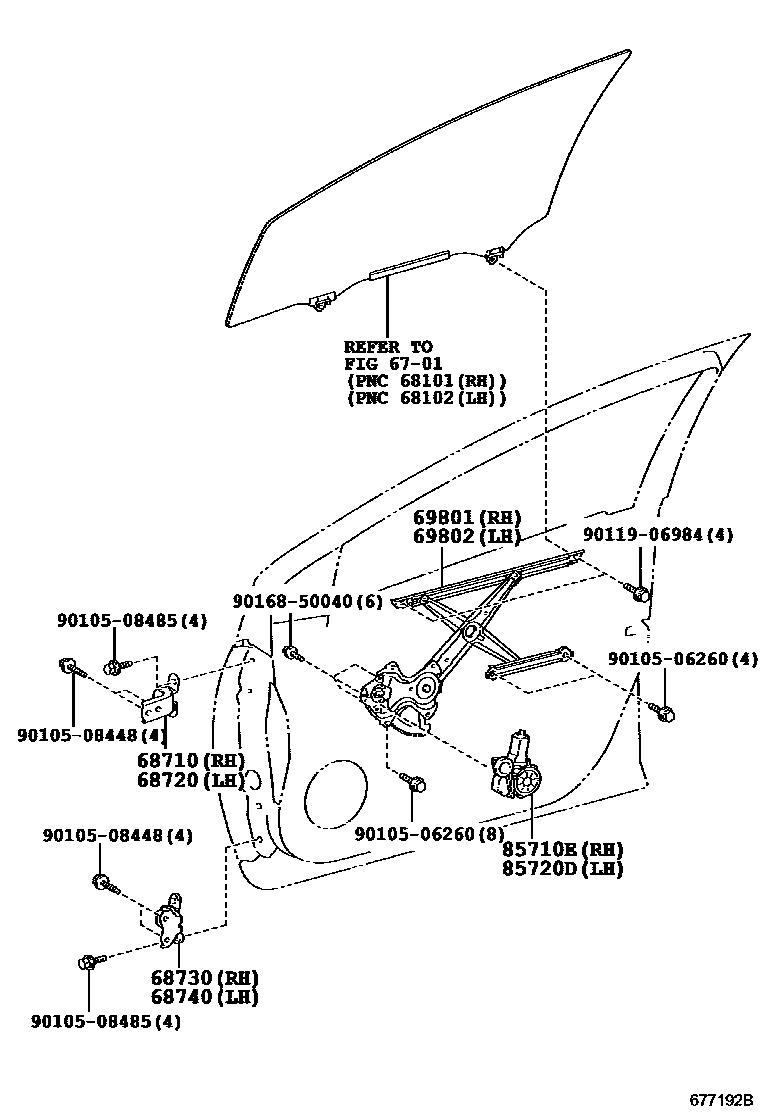

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iNHP10201412-201706

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iNHP10201112-201412

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iNHP10201112-201412

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iNHP10201112-201412

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52140iNHP10201412-201706

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52130iNHP10201112-201412

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35180iNHP10201112-201412

main85710-52280iNHP10201706

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-30460iNHP10201302-201412

main85720-52180iNHP10201112-201301

main85720-52220iNHP10201609-201706

main85720-52250iNHP10201706

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
