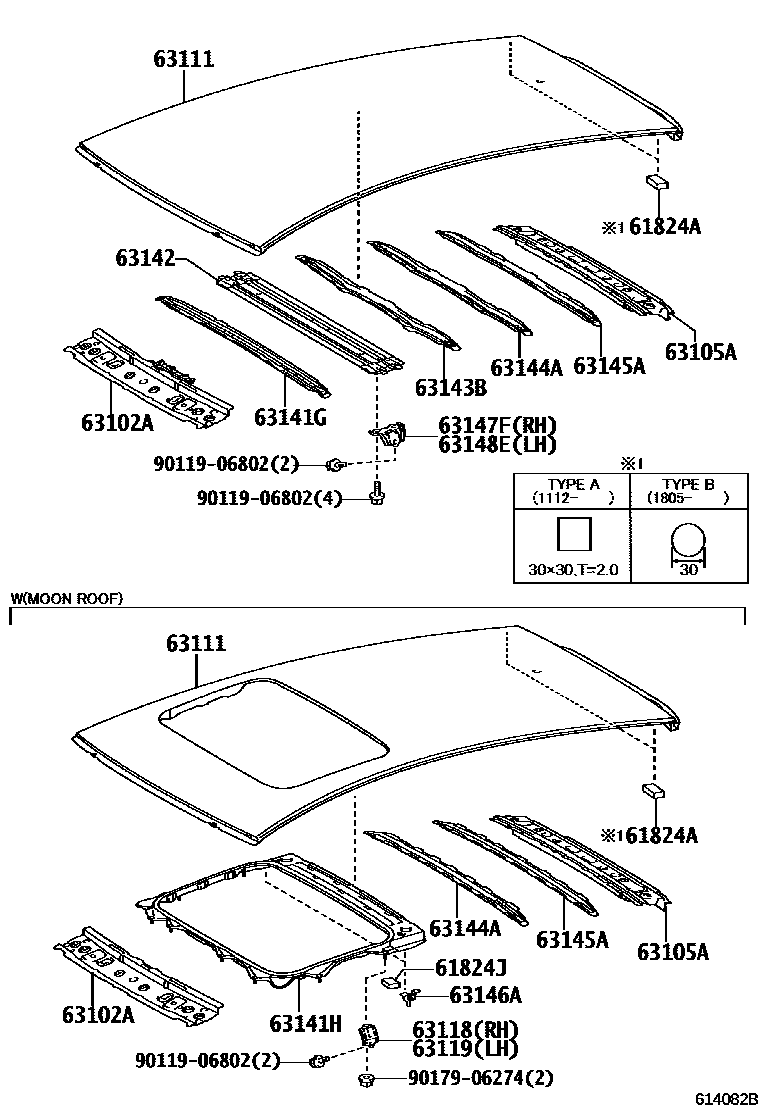

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF 0003 1ROOF RAIL

61824APLATE, NOISE CONTROL, NO.1

main62151-20160×2iNHP10201412-201706

61824JPAD, NOISE SHUTTER, NO.1

main61824-52070×2iNHP10..G201112-201412

NORTH AMERICA 3-2; NORTH AMERICA 4-2

main90333-30008×2iNHP10..G201805-202008

NORTH AMERICA 3-2,TYPE B:REFER ILLUST.; NORTH AMERICA 4-2,TYPE B:REFER ILLUST.

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52190iNHP10201412-201607

main63102-52191iNHP10201706

main63102-52250iNHP10..G201706-202008

NORTH AMERICA 3-2; NORTH AMERICA 3-2&; NORTH AMERICA 4-2; NORTH AMERICA 4-2&

main63132-52180iNHP10..G201112-201412

NORTH AMERICA 3-2; NORTH AMERICA 4-2

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52170iNHP10201112-201412

63111PANEL, ROOF

main63111-52390supersedes 63111-52460iNHP10..G,V; NHP10..R201706-202006

main63111-52391supersedes 63111-52461iNHP10..G; NHP10..R202007

main63111-52400iNHP10..G201706-202008

NORTH AMERICA 3-2; NORTH AMERICA 3-2&; NORTH AMERICA 4-2; NORTH AMERICA 4-2&

63118SUPPORT, ROOF PANEL, RH

main63118-52070iNHP10..G201706-202008

NORTH AMERICA 3-2; NORTH AMERICA 3-2&; NORTH AMERICA 4-2; NORTH AMERICA 4-2&

63119SUPPORT, ROOF PANEL, LH

main63119-52040iNHP10..G201112-201412

NORTH AMERICA 3-2; NORTH AMERICA 4-2

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63143-52180iNHP10201112-201412

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63142-52090iNHP10..G201706-202008

NORTH AMERICA 3-2; NORTH AMERICA 3-2&; NORTH AMERICA 4-2; NORTH AMERICA 4-2&

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-52110iNHP10201412-201706

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-52140iNHP10201112-201412

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63145-52060iNHP10201412-201706

main63143-52190iNHP10..G201112-201412

NORTH AMERICA 3-2; NORTH AMERICA 4-2

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63146-52050iNHP10201706

main63144-52150iNHP10..G201706-202008

NORTH AMERICA 3-2; NORTH AMERICA 3-2&; NORTH AMERICA 4-2; NORTH AMERICA 4-2&

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63149-30080×2iNHP10..G201112-201412

NORTH AMERICA 3-2; NORTH AMERICA 4-2

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-52100iNHP10201112-201412

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-52100iNHP10201112-201412

9011906802

main90119-06802

9017906274

main90179-06274

18 parts on this diagram · 3 diagrams in section
