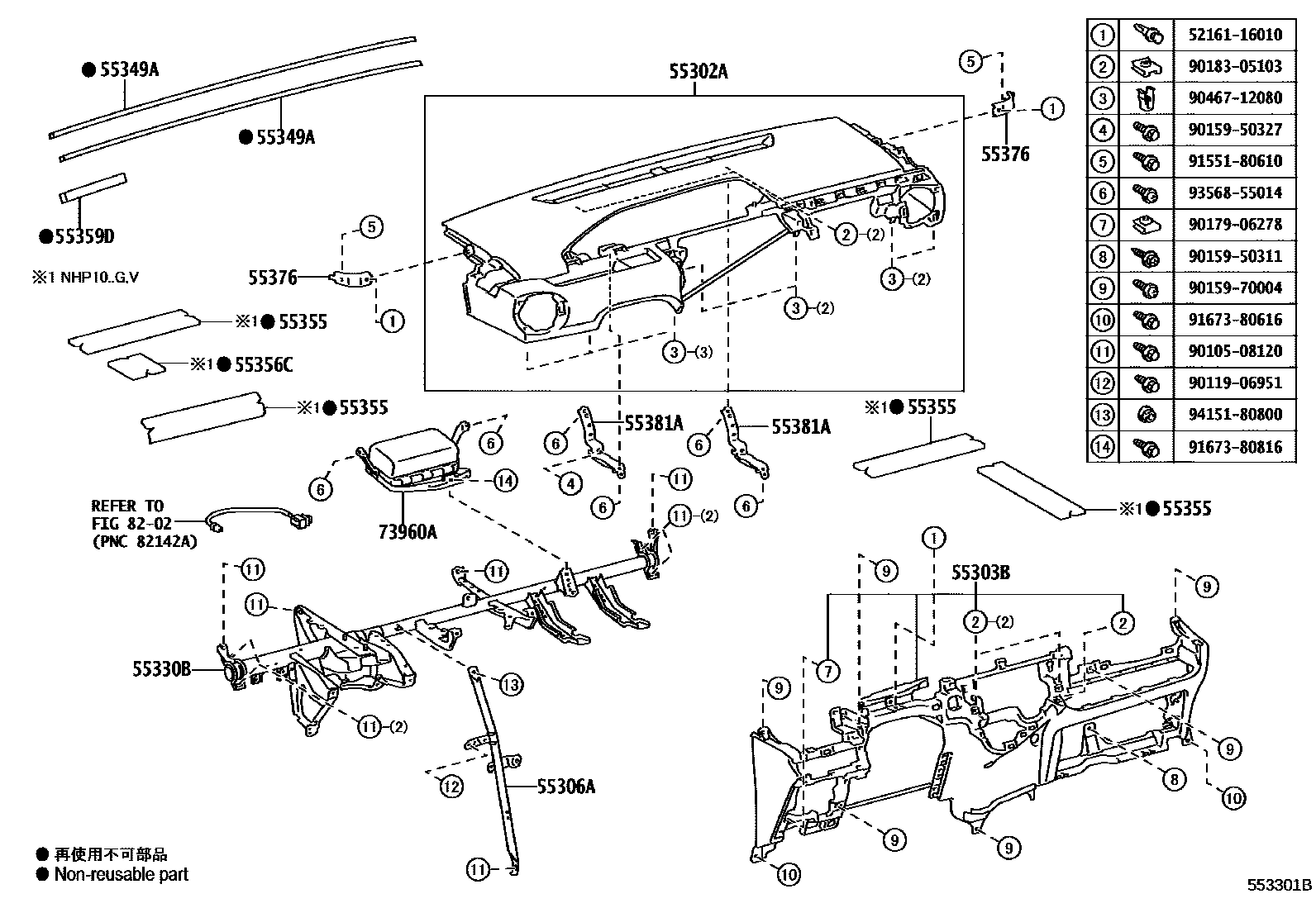

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52150-C0iNHP10201112-201406

BLACK,TRIM2#

main55302-52903-C0iNHP10..R201406-201412

BLACK,TRIM2#

main55302-52904-C0iNHP10..G,V201706

BLACK,TRIM1#,2#,8#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52260-C0iNHP10201412-201706

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52270iNHP10201706-201712

main55306-52410iNHP10201801

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52670iNHP10201112-201412

main55330-52780iNHP10201505-201510

main55330-52820iNHP10201511-201602

main55330-52821iNHP10201603-201706

main55330-52A00iNHP10201706

55349ACUSHION, INSTRUMENT PANEL

main55349-52180×2iNHP10201112-201303

main55349-52240iNHP10201412-201706

GLASS SIDE

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52200×4iNHP10..G,V201112-201412

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52200iNHP10..G,V201112-201412

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52150iNHP10201301-201310

main55359-52151iNHP10201311-201402

main55359-52190iNHP10201112-201212

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52110×2iNHP10201112-201412

55381ABRACKET, FINISH PANEL MOUNTING

main55381-52050×2iNHP10201112-201412

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52180iNHP10201412-201706

8202WIRING & CLAMP

→ Go to FIG 82-02

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010508120

main90105-08120

9011906951

main90119-06951

9015950311

main90159-50311

9015950327

main90159-50327

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046712080

main90467-12080

9155180610

main91551-80610

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

26 parts on this diagram · 8 diagrams in section
