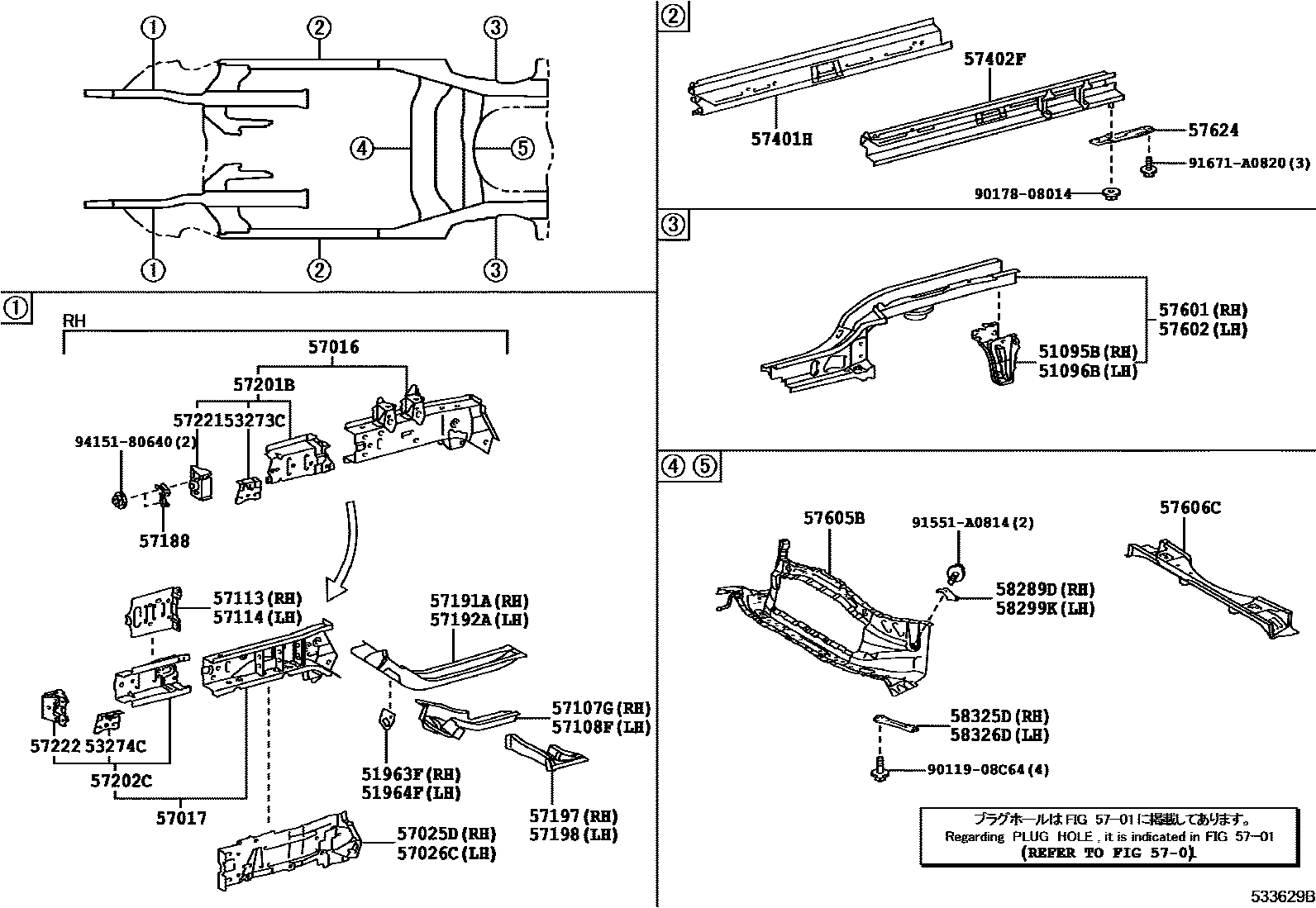

FLOOR SIDE MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-52020iNHP10201112-201412

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-52010iNHP10201112-201412

51963FHOOK, TRANSPORT

main51963-52050iNHP10201112-201412

51964FHOOK, TRANSPORT, LH

main51963-52050iNHP10201112-201412

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-52030iNHP10201112-201412

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-52020iNHP10201112-201412

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-52090iNHP10201112-201412

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-52100iNHP10201112-201412

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-52010iNHP10201112-201412

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-52010iNHP10201112-201412

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52030iNHP10201112-201412

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52030iNHP10201112-201412

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-52010iNHP10201112-201412

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-52010iNHP10201112-201412

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-52020iNHP10201112-201412

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020iNHP10201112-201412

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020iNHP10201112-201412

57197BOX, TORQUE, FRONT RH

main57197-52030iNHP10201112-201412

57198BOX, TORQUE, FRONT LH

main57078-52050iNHP10201706

main57198-52030iNHP10201412-201505

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-52020iNHP10201112-201412

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-52020iNHP10201112-201412

57221BRACKET, FRONT SIDE MEMBER, RH

main57013-52040iNHP10201112-201412

57222BRACKET, FRONT SIDE MEMBER, LH

main57014-52030iNHP10201112-201412

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-52190iNHP10201112-201412

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-52210iNHP10201112-201410

main57402-52260iNHP10201505-201706

main57402-52280iNHP10201411-201412

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52230iNHP10201112-201310

main57601-52232iNHP10201412-201501

main57601-52233iNHP10201706

main57601-52400iNHP10201310-201312

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52280iNHP10201112-201312

main57602-52282iNHP10201412-201501

main57602-52283iNHP10201411-201412

main57602-52500iNHP10201505-201706

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52180iNHP10201112-201309

main57605-52181iNHP10201310-201412

main57605-52182iNHP10201605-201706

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52170iNHP10201112-201309

main57606-52171iNHP10201706

57624GUSSET, REAR FLOOR SIDE, REAR LH

main57678-52010iNHP10201505-201706

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-52100iNHP10201112-201412

58299KBRACKET, FLOOR BRAKE HOSE, REAR LH

main58299-52110iNHP10201112-201412

58325DBRACE, REAR FLOOR PANEL, RH

main58251-52020iNHP10201112-201412

58326DBRACE, REAR FLOOR PANEL, LH

main58251-52020iNHP10201112-201412

9011908C64

main90119-08C64

9017808014

main90178-08014

91551A0814

main91551-A0814

91671A0820

main91671-A0820

9415180640

main94151-80640

40 parts on this diagram · 1 diagram in section
