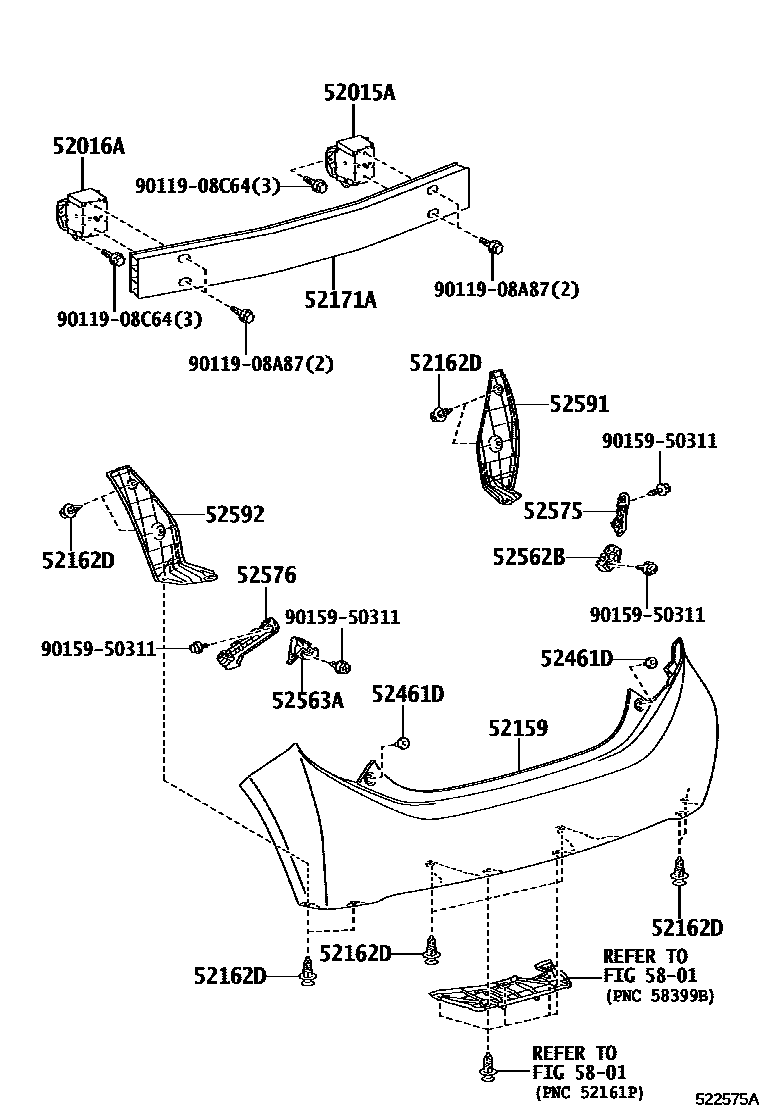

Toyota 131410 — REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52162DPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52461DCUSHION, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
5801FLOOR PAN & LOWER BACK PANEL
9011908A87
9011908C64
9015950311
16 parts on this diagram · 3 diagrams in section
REAR BUMPER & BUMPER STAY for Toyota 131410
This section contains 21 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota 131410. Key components include: ARM SUB-ASSY, REAR BUMPER, RH, ARM SUB-ASSY, REAR BUMPER, LH, COVER, REAR BUMPER, PIECE, REAR BUMPER, REINFORCEMENT, REAR BUMPER, NO.1.
