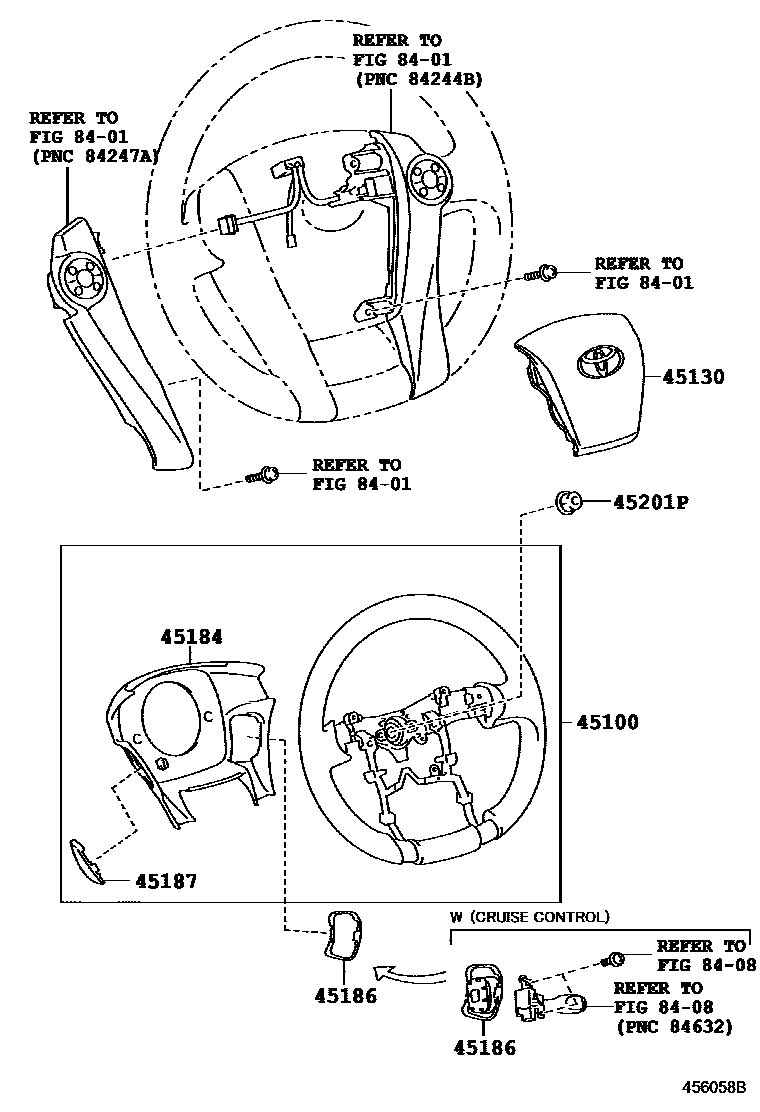

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,BLACK,TRIM1#,2#,8#; 4-SPOKE,URETHANE,BLACK,TRIM2#
4-SPOKE,LEATHER,NORTH AMERICA 4,BLACK,TRIM2#; 4-SPOKE,LEATHER,NORTH AMERICA 4-2,BLACK,TRIM2#
4-SPOKE,LEATHER,NORTH AMERICA 4-2,BLACK & LIGHT BLUE GRAY,TRIM2#
4-SPOKE,LEATHER,NORTH AMERICA 4-2,BLACK / WHITE,TRIM1#,2#
4-SPOKE,LEATHER,NORTH AMERICA 4-2,BLACK / GRAY,TRIM1#,2#
45130BUTTON ASSY, HORN
BLACK,TRIM1#,2#,8#; BLACK,TRIM2#
BLACK,TRIM2#
45184COVER, STEERING WHEEL BOSS, LOWER
BLACK,TRIM1#,2#,8#; BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
BLACK,TRIM2#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
8 parts on this diagram · 1 diagram in section
