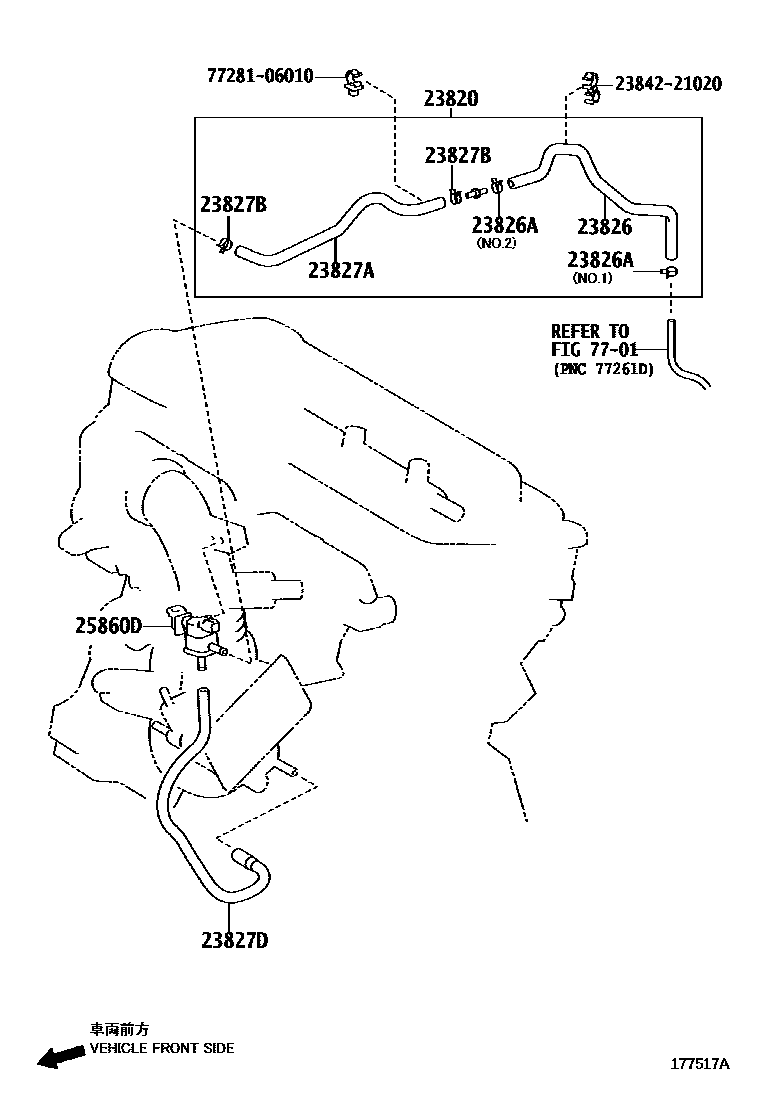

VACUUM PIPING

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21170i1NZFXE..NHP10201112-201412

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-21210i1NZFXE..NHP10201112-201412

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90467-19021i1NZFXE..NHP10201706

NO.1

main96134-51700i1NZFXE..NHP10201706

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21190i1NZFXE..NHP10201112-201412

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96134-51700×2i1NZFXE..NHP10201112-201412

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-21200i1NZFXE..NHP10201112-201412

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main25860-21140i1NZFXE..NHP10201112-201412

7701FUEL TANK & TUBE

→ Go to FIG 77-01

2384221020CLAMP, FUEL PIPE(HOSE), NO.2

main23842-21020

7728106010BRACKET, FUEL MAIN TUBE, NO.1

main77281-06010

10 parts on this diagram · 1 diagram in section
