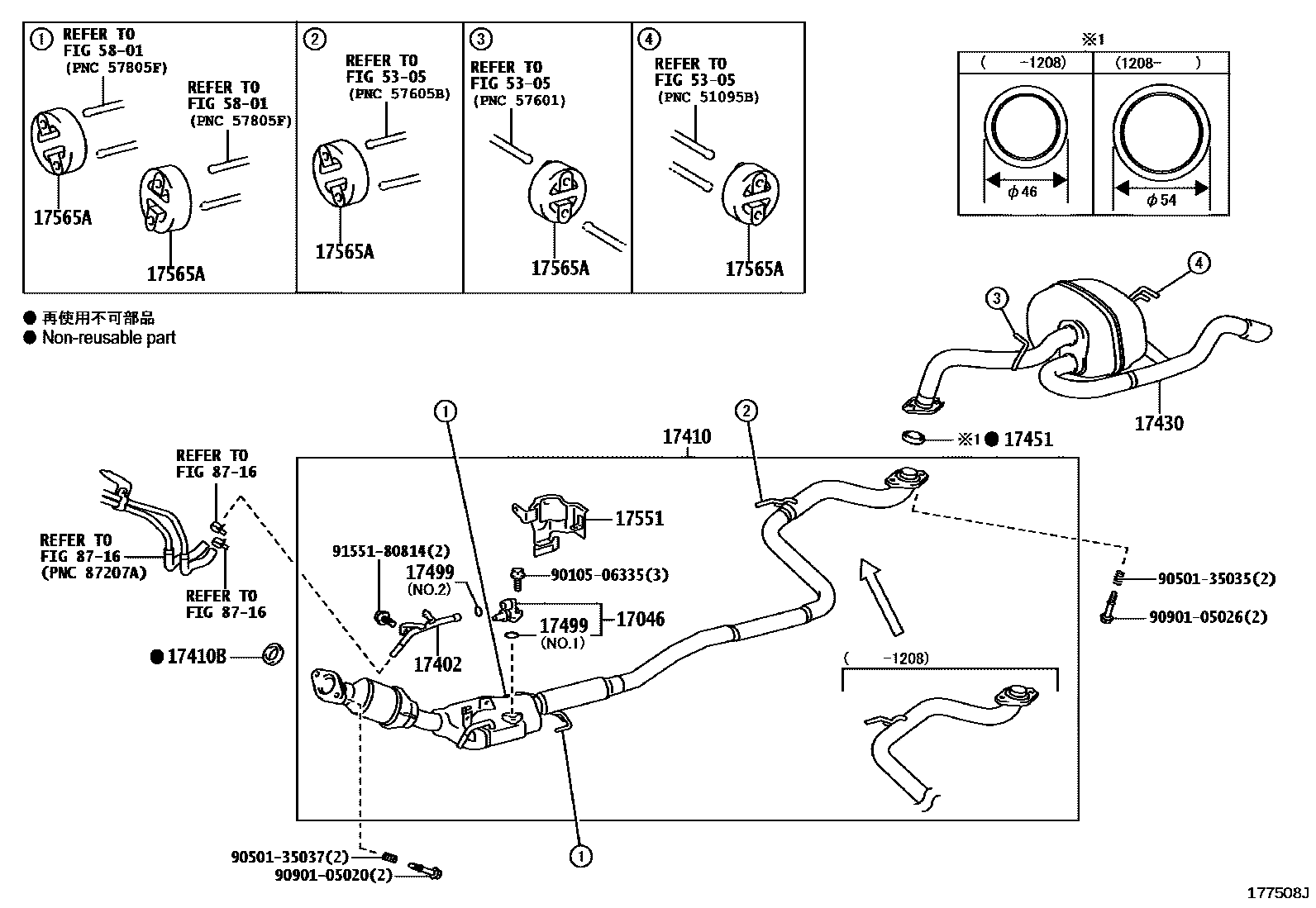

EXHAUST PIPE

0001 1 0003 1MEXICO SPEC 0004 1

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-21030i1NZFXE..NHP10201201-201303

main17046-21031i1NZFXE..NHP10201304-201409

main17046-21032i1NZFXE..NHP10201412-201706

main17046-31031i1NZFXE..NHP10201112-201201

17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2

main17402-21010i1NZFXE..NHP10201112-201412

17410PIPE ASSY, EXHAUST, FRONT

main17410-21C20i1NZFXE..NHP10201112-201208

main17410-21C21i1NZFXE..NHP10201208-201304

main17410-21C22i1NZFXE..NHP10201304-201409

main17410-21C23i1NZFXE..NHP10201412-201706

main17410-21E10supersedes 17410-21C23i1NZFXE..NHP10..V202008

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFXE..NHP10201112-201412

17430PIPE ASSY, EXHAUST, TAIL

main17430-21870i1NZFXE..NHP10201112-201208

main17430-21871i1NZFXE..NHP10201208-201311

main17430-21872i1NZFXE..NHP10..G,R201706

main17430-21B00supersedes 17430-21872i1NZFXE..NHP10..V202008

17451GASKET, EXHAUST PIPE

main17451-23042i1NZFXE..NHP10201706

main17451-40032i1NZFXE..NHP10201112-201208

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-31020i1NZFXE..NHP10201112-201412

NO.1

main17499-37010i1NZFXE..NHP10..V201706-202008

NO.2

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-21030i1NZFXE..NHP10201412-201706

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010×5i1NZFXE..NHP10201112-201412

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9010506335

main90105-06335

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180814

main91551-80814

18 parts on this diagram · 3 diagrams in section
