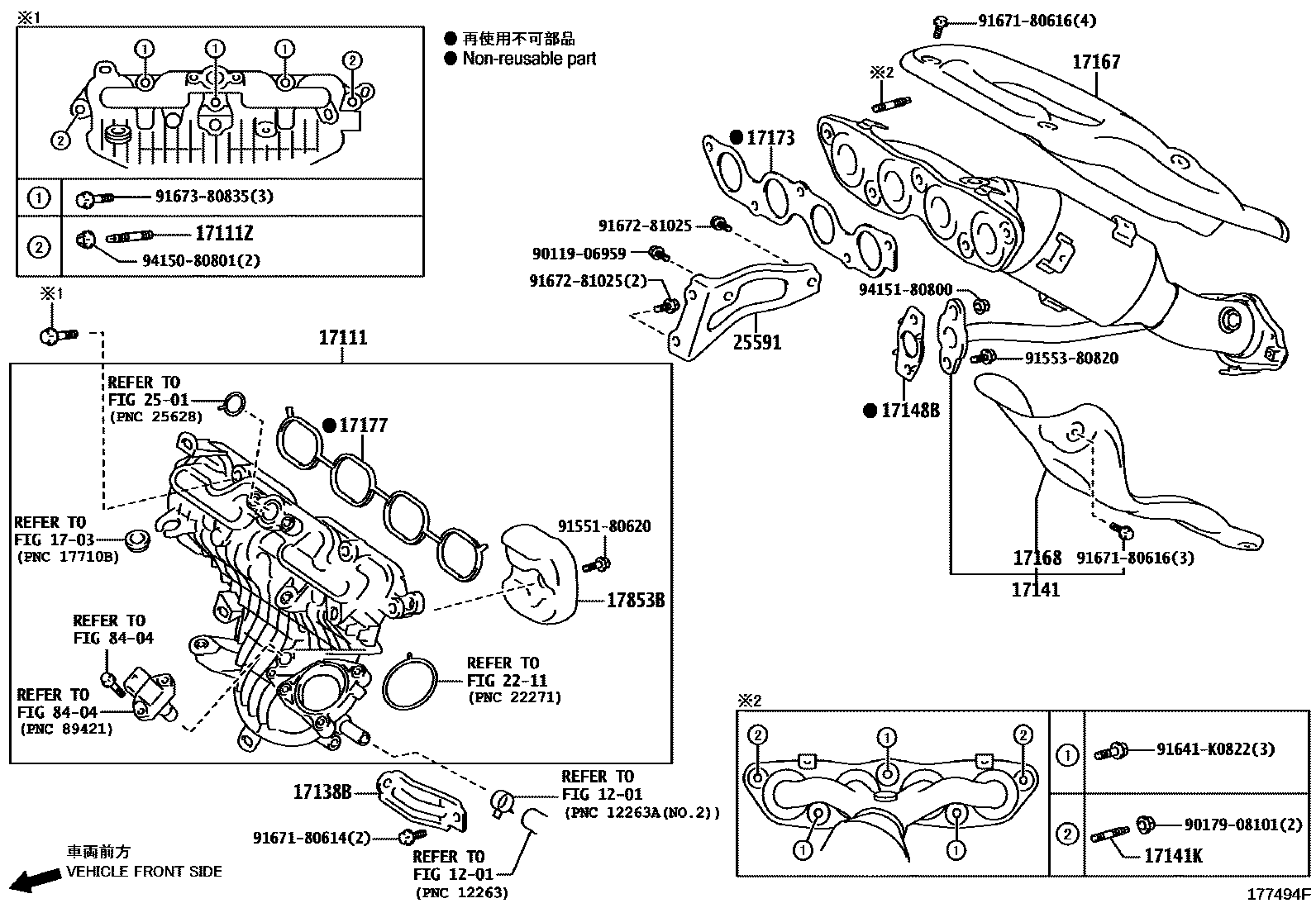

MANIFOLD

1201

1703

17111MANIFOLD, INTAKE

main17120-21060i1NZFXE..NHP10201112-201706

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i1NZFXE..NHP10201112-201706

17138BSTAY, INTAKE MANIFOLD

main17138-21020i1NZFXE..NHP10201112-201706

17141MANIFOLD, EXHAUST

main17140-21090i1NZFXE..NHP10201112-201706

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i1NZFXE..NHP10201112-201706

17148BGASKET, EGR INLET

main25634-21020i1NZFXE..NHP10201112-201706

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21170i1NZFXE..NHP10201112-201505

sub17167-21171

main17167-21171i1NZFXE..NHP10201506-201706

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-21060i1NZFXE..NHP10201112-201406

sub17168-21061

main17168-21061i1NZFXE..NHP10201407-201702

sub17168-21090

main17168-21090i1NZFXE..NHP10201703-201706

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFXE..NHP10201112-201706

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21040i1NZFXE..NHP10201112-201706

17853BINSULATOR, INTAKE MANIFOLD

main17853-21010i1NZFXE..NHP10201112-201706

2211

2501

25591BRACKET, MANIFOLD SUPPORT

main25591-21070i1NZFXE..NHP10201112-201612

sub25591-21100

main25591-21100i1NZFXE..NHP10201701-201706

8404

9011906959

main90119-06959

9017908101

main90179-08101

9155180620

main91551-80620

9155380820

main91553-80820

91641K0822

main91641-K0822

9167180614

main91671-80614

9167180616

main91671-80616

9167281025

main91672-81025

9167380835

main91673-80835

9415080801

main94150-80801

9415180800

main94151-80800

28 parts on this diagram · 1 diagram in section
