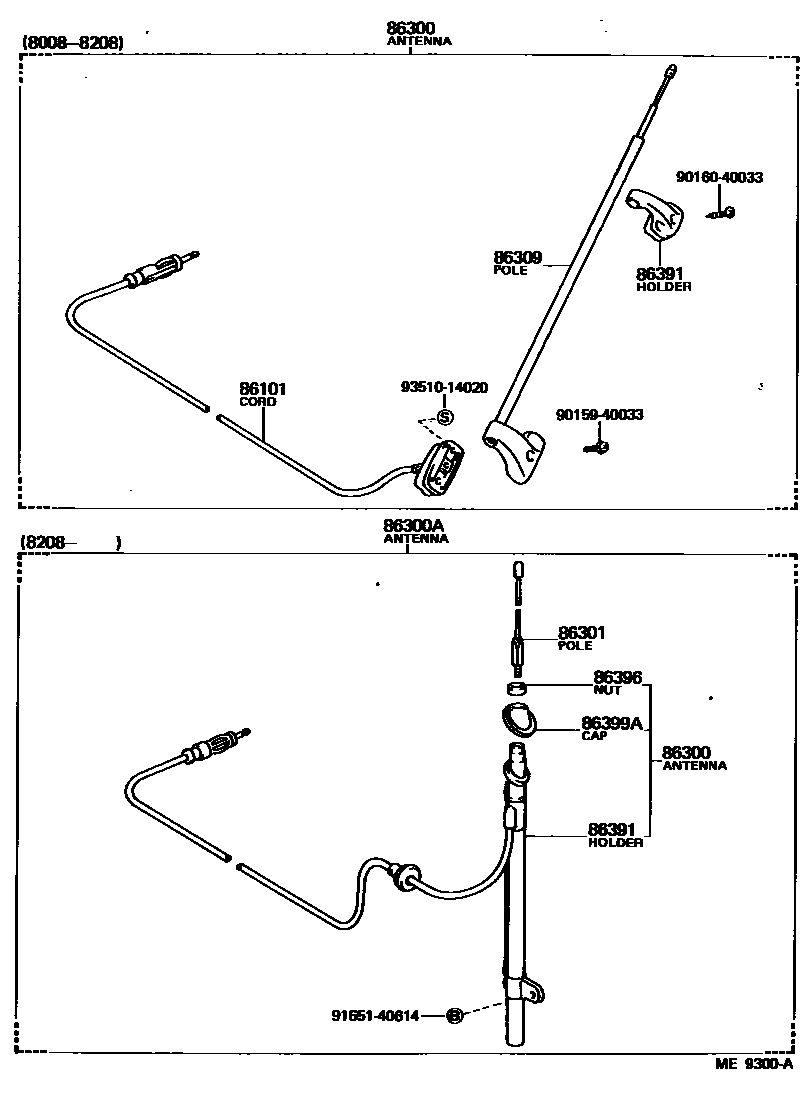

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-10031iKP61198008-198208

86300ANTENNA ASSY, W/HOLDER

main86300-10120iKP61198008-198208

main86300-10140iKP61198208-198312

86300AANTENNA SET

main86300-19045iKP61198208-198312

86301POLE SUB-ASSY, ANTENNA

main86309-32010iKP61198208-198301

main86309-32011iKP61198301-198312

86309POLE SUB-ASSY, PILLAR ANTENNA

main86309-10030iKP61198008-198208

86391HOLDER, ANTENNA

main86391-10040iKP61198008-198208

main86391-10050iKP61198208-198312

86396NUT, ANTENNA

main90179-12026iKP61198208-198312

86399ACAP, ANTENNA

main86399-10010iKP61198208-198312

9015940033

main90159-40033

9016040033

main90160-40033

9165140614

main91651-40614

9351014020

main93510-14020

12 parts on this diagram · 1 diagram in section
