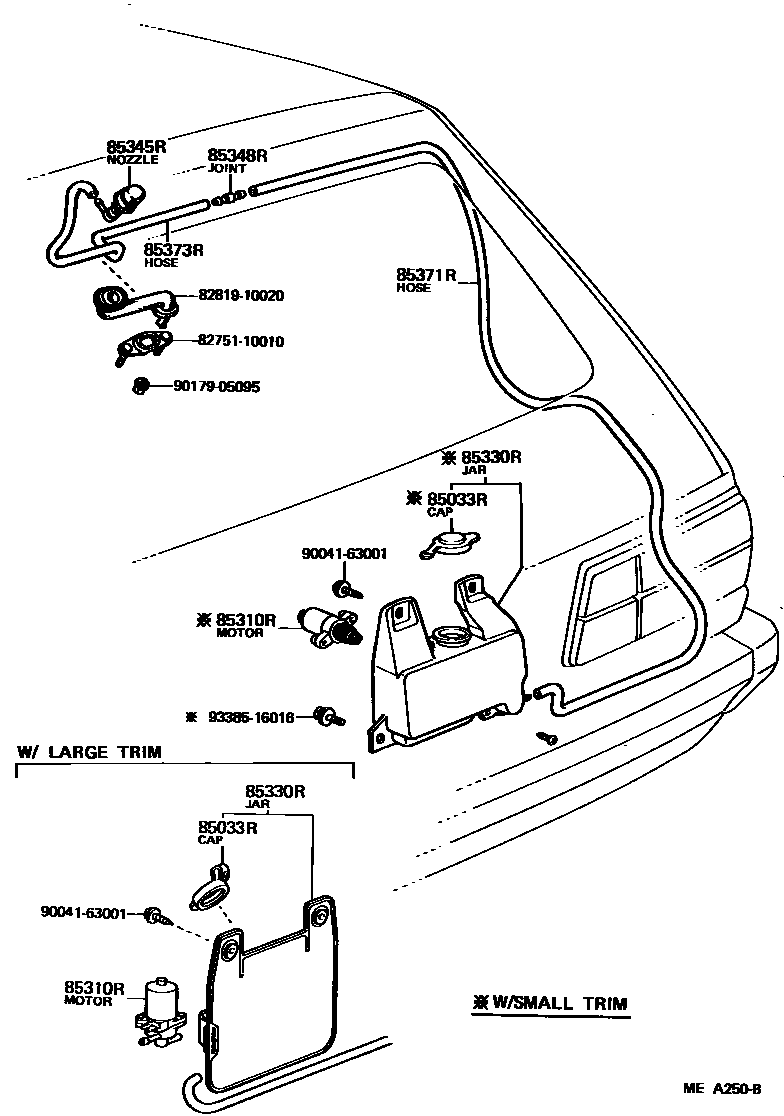

REAR WASHER

0001 1 0002 1

85033RCAP ASSY, REAR WASHER

main85332-10020iKP61198008-198101

W/SMALL TRIM

main85332-20050iKP61198008-198208

W/LARGE TRIM

85310RMOTOR ASSY, REAR WASHER

main85310-10120iKP61198008-198101

W/SMALL TRIM

main85310-20100iKP61198008-198208

W/LARGE TRIM

85330RJAR ASSY, REAR WASHER

main85330-10101iKP61198008-198208

W/LARGE TRIM

main85330-10150iKP61198008-198101

W/SMALL TRIM

85345RNOZZLE, REAR WASHER

main85035-10140iKP61198008-198208

main85035-10150iKP61198208-198312

85348RJOINT, REAR WASHER HOSE, NO.1

main85355-10060iKP61198008-198208

main85355-87201iKP61198208-198312

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iKP61198208-198312

L=1000(*H,L=150)

main90446-06015iKP61198008-198208

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iKP61198111-198208

L=1000

main90446-06013iKP61198008-198111

L=1000(*H,L=360)

8275110010BLOCK, DRIVER SIDE RELAY

main82751-10010

8281910020GROMMET, WIRING HARNESS

main82819-10020

9004163001

main90041-63001

9017905095

main90179-05095

9338516016

main93385-16016

12 parts on this diagram · 2 diagrams in section
