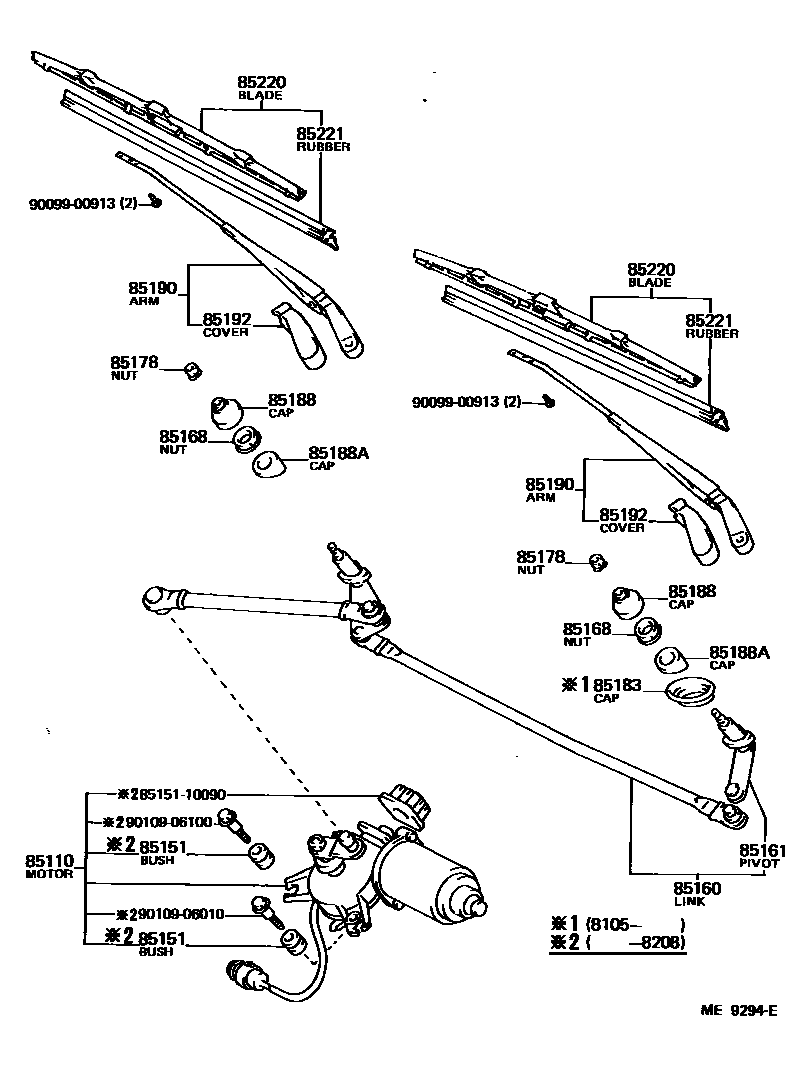

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10140iKP61..USA198008-198208

main85110-10150iKP61198008-198208

COLD SPEC

main85110-10190iKP61198208-198312

COLD SPEC

main85110-10250iKP61..USA198208-198312

85151BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-10080×2iKP61198008-198208

85160LINK ASSY, WINDSHIELD WIPER

main85160-10130iKP61198008-198105

COLD SPEC

main85160-10131iKP61198105-198208

COLD SPEC

main85160-10140iKP61..USA198008-198105

main85160-10141iKP61..USA198105-198208

main85160-10160iKP61..USA198208-198312

main85160-10190iKP61198208-198312

COLD SPEC

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-10081iKP61..USA198105-198208

DRIVER SIDE

main85161-10150iKP61..USA198208-198312

DRIVER SIDE

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85186-10081×2iKP61198008-198312

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08015×2iKP61198008-198112

main90179-08026×2iKP61198112-198312

85183CAP OR ROD, WINDSHIELD WIPER SHIELD

main85247-10080iKP61198105-198312

DRIVER SIDE

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85178-10081×2iKP61198105-198312

main85178-10090iKP61198008-198105

RH

85188ACAP, WINDSHIELD WIPER PIVOT, NO.2

main85176-10080×2iKP61198008-198105

main85176-10090iKP61198105-198312

LH

85190ARM ASSY, WINDSHIELD WIPER

main85190-10340iKP61198008-198312

RH

main85210-10020iKP61198008-198312

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-14010×2iKP61198008-198312

85220BLADE ASSY, WINDSHIELD WIPER

main85220-10140×2iKP61198008-198312

85221BLADE, WINDSHIELD WIPER

main85221-10050×2iKP61198311-198312

main85221-22030×2iKP61198008-198311

8515110090BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER

main85151-10090

9009900913

main90099-00913

9010906010

main90109-06010

9010906100

main90109-06100

17 parts on this diagram · 1 diagram in section
