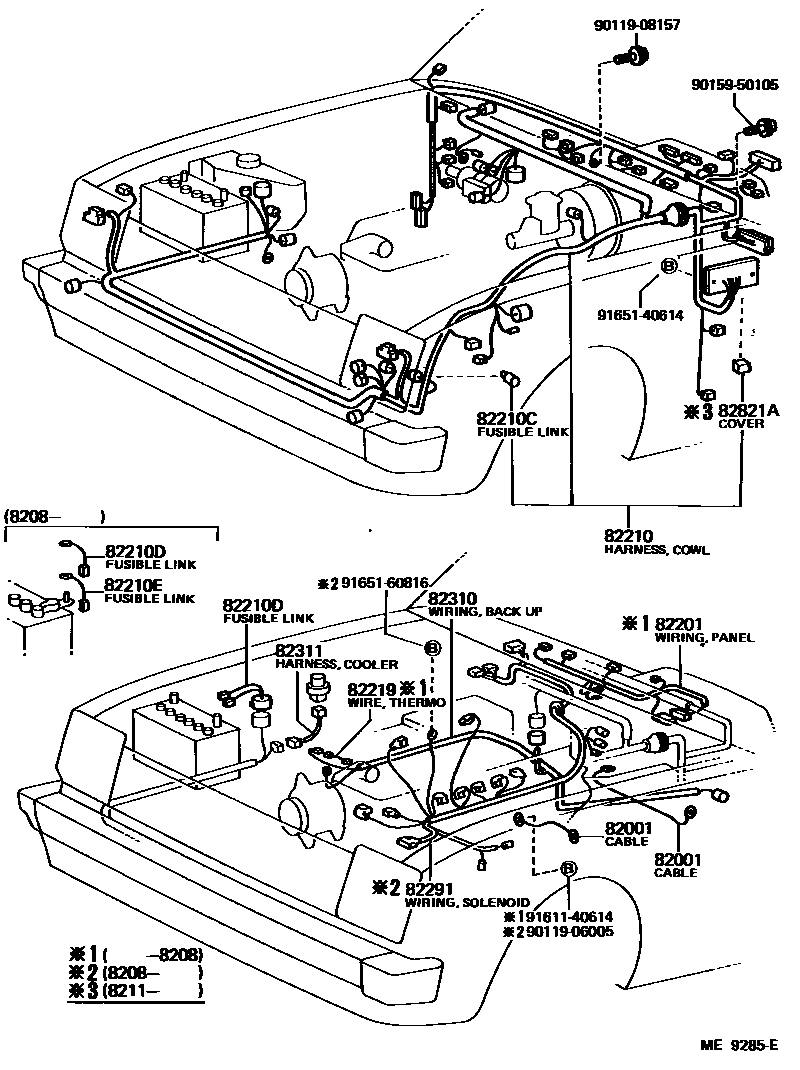

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=220
L=380
L=380
82201WIRING SUB-ASSY, INSTRUMENT PANEL
82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
W/AIR CONDITIONER
W/AIR CONDITIONER & RR WIPER
W/RR WIPER
W/RR WIPER
W/RR WIPER
W/RR WIPER OR W/*IW
W/IC REGULATOR
W/IC REGULATOR
W/IC REGULATOR
W/REAR WIPER,IC REGULAT0R
W/REAR WIPER,IC REGULAT0R
W/*IW,RR WIPER,IC REGULATOR
82210CFUSIBLE LINK
L=110 0.3P
82210DFUSIBLE LINK
L=110 0.5
82210EFUSIBLE LINK
82219WIRE, THERMO SENSOR
82291WIRING, TO SOLENOID
82310WIRING ASSY, TO BACK UP LAMP SWITCH
82311HARNESS ASSY, COOLER
CONDENSER FAN MOTOR
82821ACOVER, CONNECTOR
9011906005
main90119-06005
9011908157
main90119-08157
9015950105
main90159-50105
9161140614
main91611-40614
9165140614
main91651-40614
9165160816
main91651-60816
17 parts on this diagram · 5 diagrams in section
